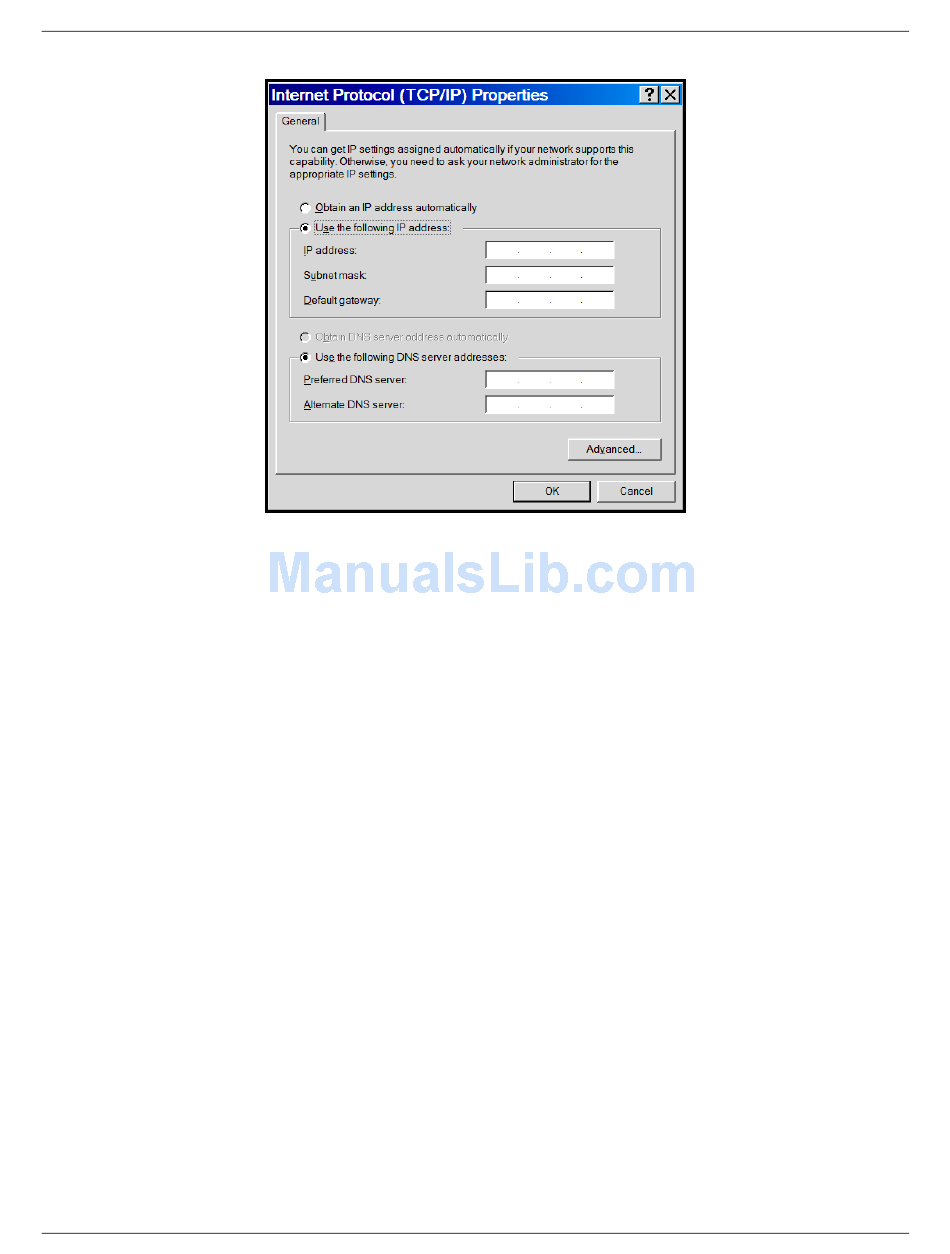

4. The Internet Protocol (TCP/IP) Properties screen.
Important Note:
If this screen opens and displays your current IP configuration, we suggest you record this information for future
reference (i.e., after the router is configured, you may wish to return this PC to its original settings).
●
To set a Fixed IP Address for the pc, select Use the following IP address.
●
Enter the pc IP Address. Example: 192.168.2.x.
Note: The x in the address stands for numbers 101 and up.
●
Enter the pc Subnet Mask. Example: 255.255.255.0
●
Enter the pc Default Gateway. Example: 192.168.2.1
Note: The pc settings must be in the same subnet range as the router.
The factory default settings for the router are:
IP Address: 192.168.2.1
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.2.2
●
Select Use the following DNS server addresses.
●
Enter the IP Address for the Preferred DNS Server. Example: 205.171.3.65
●
Click OK.
●
Close the Local Area Properties screen by clicking OK.
●
Close the Control Panel.
●
Repeat these steps for each PC on your network.
