MultiModem rCell Intelligent Wireless Router

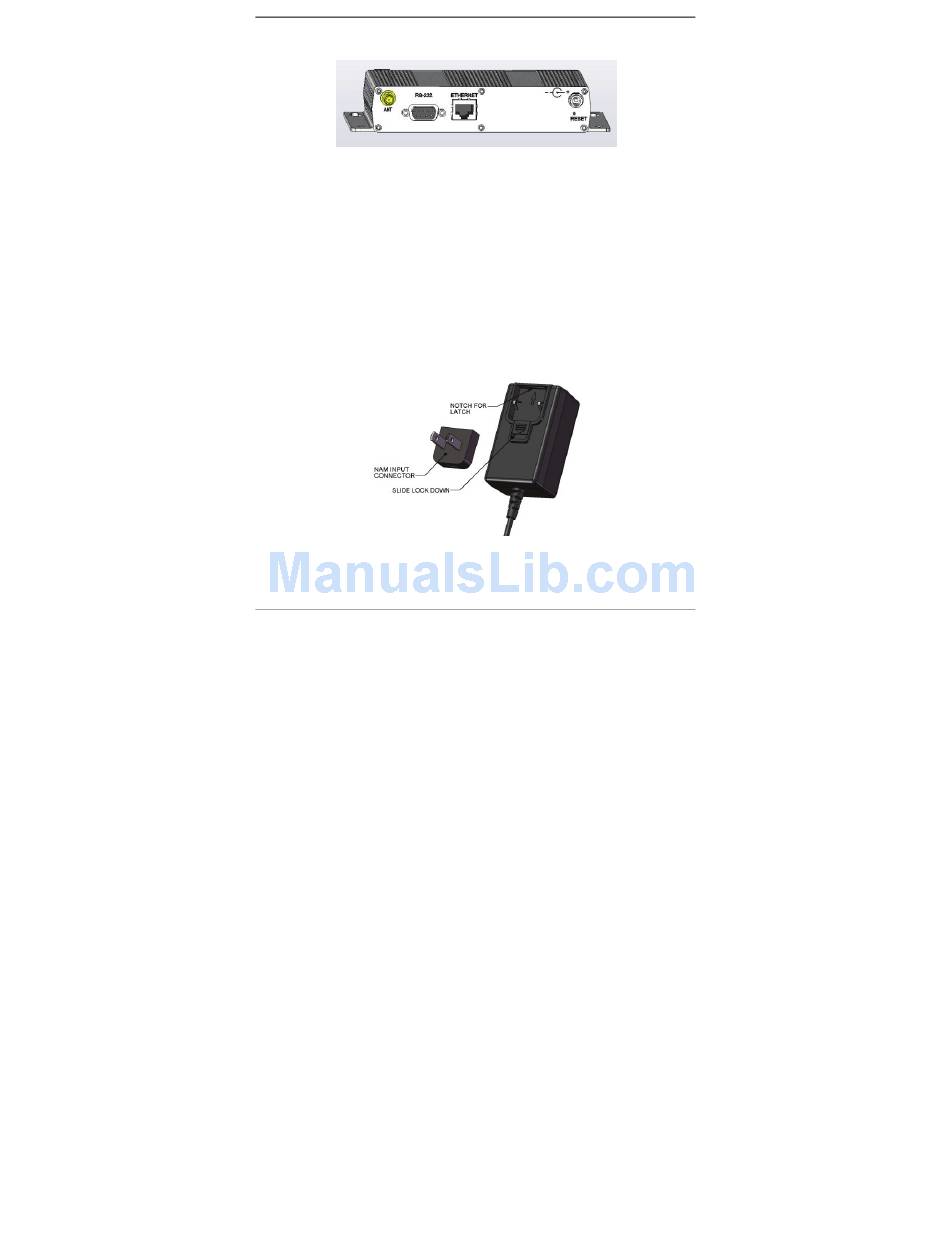

Connect the Antenna and Power

1. Connect a suitable antenna to the SMA connector (see antenna
specifications in the User Guide).
2. Using an Ethernet cable, connect one end of the cable to the
ETHERNET connector on the back of the router and the other end
to your pc either directly or via a switch or hub.
3. If you are connecting a customer's legacy device to the router,
connect the serial, RS232 cable from the customer's device to the
RS232 connector on the back of the router.
4. Depending on the power source, connect either the power supply
module with the appropriate blade or the optional DC power cable.
If you are using the power supply module, remove the protective
shipping cover. Attach the appropriate interchangeable blade
piece to the power supply module.
Screw-on the power lead from the power supply module to the
power connection on the router. Now, plug the power supply into
your power source.
6 Multi-Tech Systems, Inc. Quick Start Guide
