Chapter 3 – Using the Web Management Software
Daylight Saving End Time
End Ordinal:
Set the end ordinal to use during Daylight Saving mode. Select the week in which daylight saving time ends.
Options are first/second/third/fourth/last. Default is last.
End Month:
Set the end month to use during Daylight Saving mode. Default is October.
End Day:
Set the end weekday to use during Daylight Saving mode. Default is Sunday.
End Time:
Set the end time to use during Daylight Saving mode. Default is 02:00 (hh:mm).
Submit Button
Click the Submit button to save these settings.
Note:
You must click Save and Restart once you have completed and submitted all the screens on which you have made
changes.

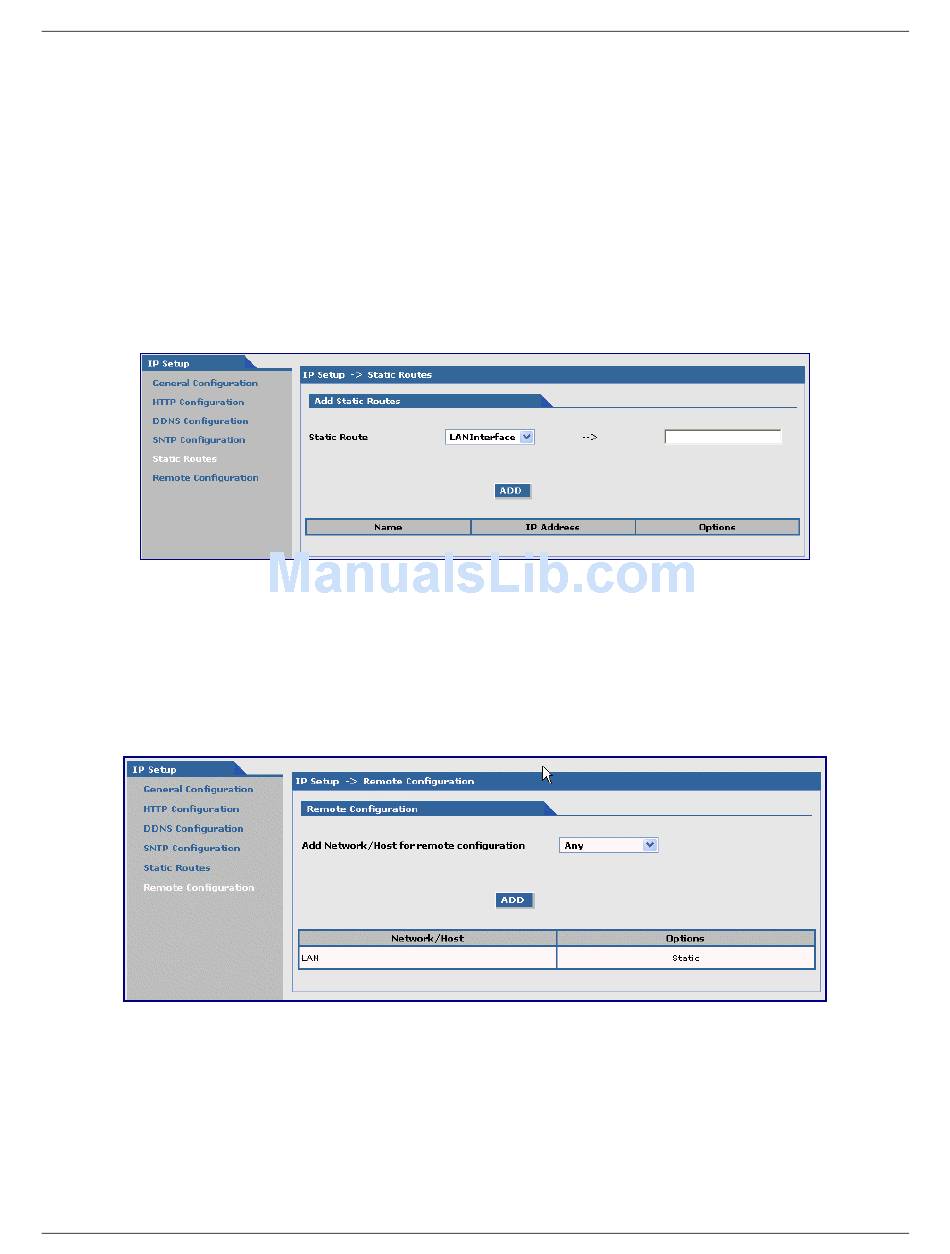

I P Setup > Static Routes
8 2 B
Routing information is used by every computer connected to a network to identify whether it is sending a data packet directly
to the firewall or passing it on to another network. The options to Delete or Edit a route after it has been defined and added
are available by using the table at the bottom of the screen.
Add Static Routes
IP packets destined for the network indicated in the drop down box are routed to the IP address in the box pointed to by the
arrow. The networks in the drop down box can be defined under the 'Networks & Services' tab.
Static Route:
Select a static route from the drop down list box, and then click the Add button.
Add Button:
After clicking the Add button, the new route is added and will display at the bottom of the screen.
Important Note:
The Static Route screen will not display until the network is defined under Networks & Services.
I P Setup > Remote Configuration
8 3 B
Remote Configuration
Add Network/Host for Remote Configuration:
Select a network or host from the drop down box. You can define more network or host under the Network & Services tab.
The choices are Any, LAN, and WAN Interface. Choose all that apply. Click the Add button after each selection.
Add Button:
After clicking the Add button, the network or host is added and displays at the bottom of the screen.
Delete:
You will have the option to delete Any and WAN Interface in the Options window once it is added. Click on
Delete in the Options window.
26
Multi-Tech Systems, Inc. MultiModem rCell User Guide
