S et Your PC's TCP/IP Address for Ethernet Functionality
2 4 B 2 4 B
The following directions establish a TCP/IP connection at the pc so the PC can communicate with the router. The following
directions were written using a Windows XP/ 2003+ operating system.
1.

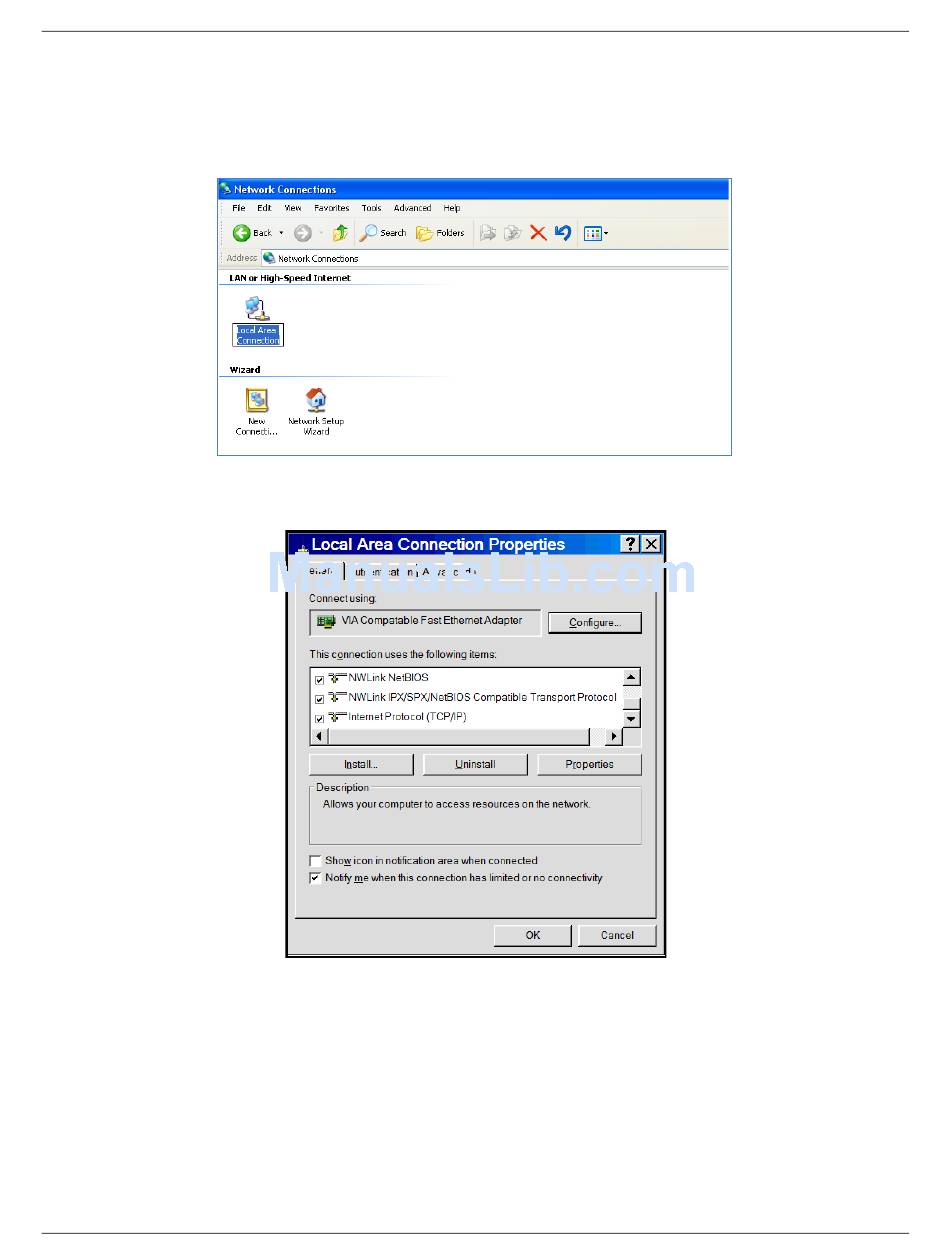

Click Start | Control Panel. Double-click the Network Connections icon.
2.
The Network Connections screen displays. Right-click the Local Area Connection icon and choose Properties from
the drop down list.
3.
The Local Area Connection Properties dialog box displays.
●
Select Internet Protocol [TCP/IP].
●
Click the Properties button. The Internet Protocol (TCP/IP) Properties screen displays.
Multi-Tech Systems, Inc. MultiModem rCell User Guide
Chapter 2 – Activation and Installation
13
