Chapter 3 – Using the Web Management Software
6 5 B G RE Tunnels > GRE Routes Configuration
9 4 B

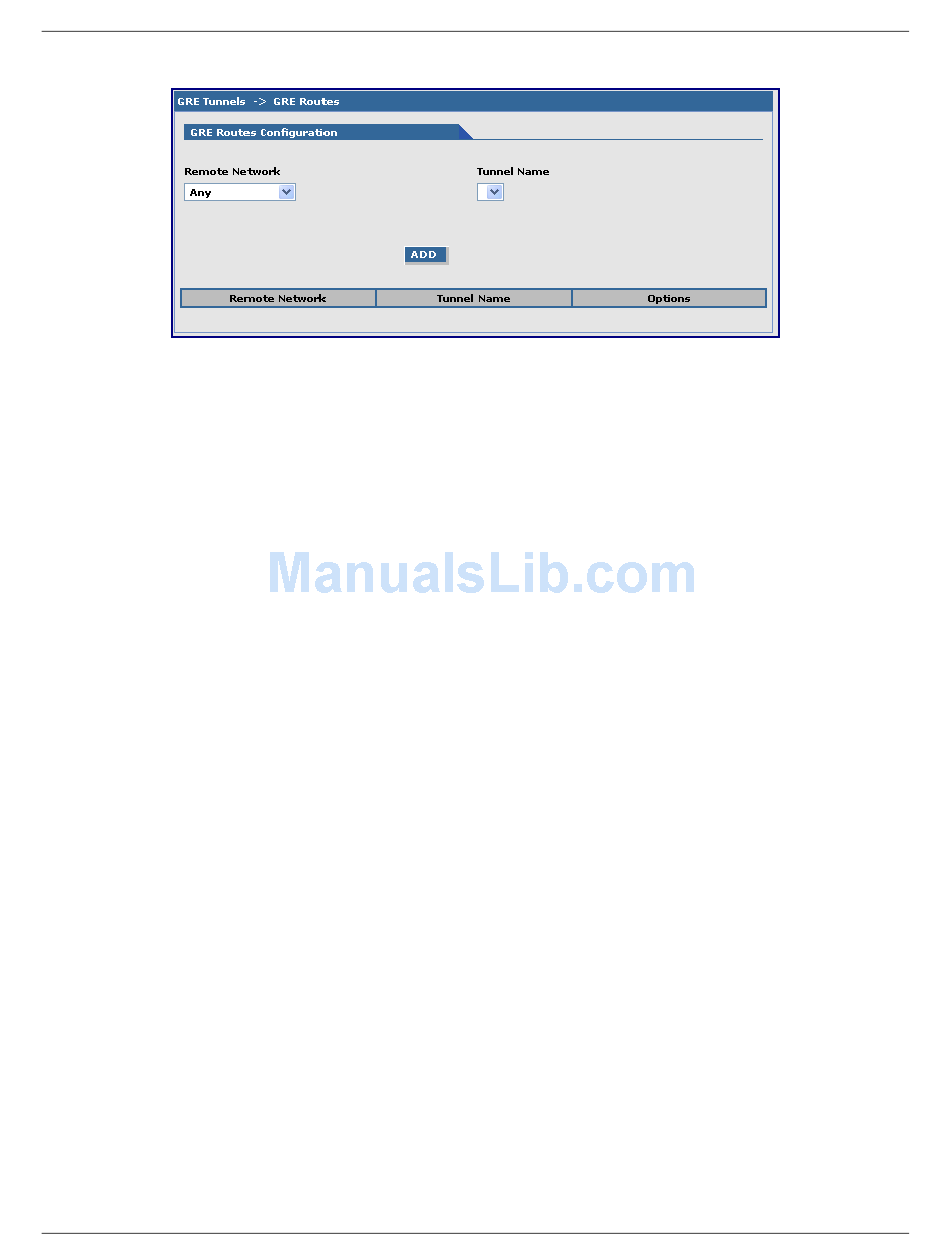

GRE Routes Configuration
Remote Network:
Tunnel Name:
Note:
Add Button:
40
Select the remote network for which the traffic destined to it must be routed through the given
tunnel.
Select the name of the tunnel through which the traffic will be routed.
To add a tunneled route, the remote network and the tunnel must have been defined in Network
Configuration. The tunnel configuration must be completed before setting the GRE route
configuration.
Click the Add button. The defined GRE route configuration is added and will display at the bottom
of the screen.
