C hapter 3 – Using the Web Management
2 B
Software
The Web Management software configures the Ethernet functionality of your router.
N avigating the Web Management Software
2 9 B 2 9 B
This section explains the menu structure and the navigation buttons of the router's Web Management software.

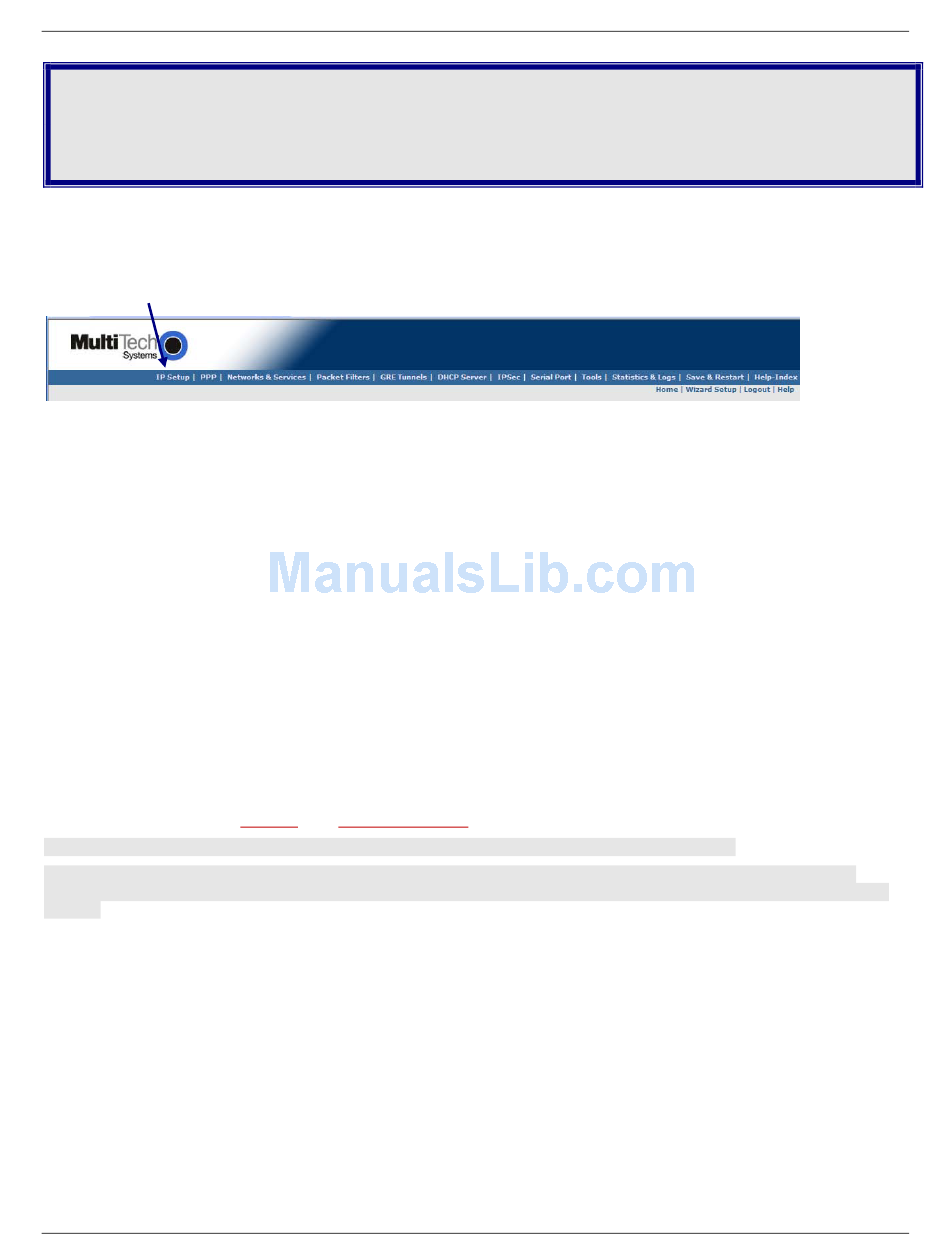

Menu Bar
IP Setup:
Sets up a General Configuration, HTTP, DDNS, SNTP, Static Routes, and Remote Configuration.
PPP:
Sets up the PPP authentication, dial-on-demand, router authentication, and Wakeup on Call.
Networks & Services:
Defines networks and services to make them available to other functions such as allowed packet filters,
static routes, remote configuration, DNAT, and GRE tunnels and routes.
Packet Filters:
Defines filter rules, DNAT configuration, and ICMP rules.
GRE Tunnels:
Generic Routing Encapsulation (GRE). Defines the remote network and the tunnel through which traffic is to be
routed.
DHCP Server:
Configures the DHCP server settings.
IPSec:
Allows device to support LAN-to-LAN VPN tunneling with DES, 3DES and AES encryption support
Serial Port:
Adds support for RS-232 serial port so that Ethernet and legacy serial devices can share the same cellular
connection.
Tools:
Sets DDNS Force Update and Reset router, displays Service Status, and provides screens for Firmware Upgrade, Load
Configuration, and Save Configuration.
Statistics & Logs:
Shows statistics and logs maintained by the router.
Save & Restart:
Saves your settings and reboots your router.
Help Index:
Accesses the online Help text.
IMPORTANT NOTE ABOUT
Click the Submit button located at the bottom of most screens in order to save any changes you make.
Then you must click the Save & Restart button, located on the Menu bar, in order for your settings to take effect. Save &
Restart does not have to be executed after each screen; you can change and Submit several screens, and then click Save &
Restart.
