Step 1: Assemble the Modem

The only assembly required is to mount the feet on the bottom of the modem. Simply peel the four self-
adhesive plastic feet off the backing strip and press them into the recesses on the bottom of the modem.

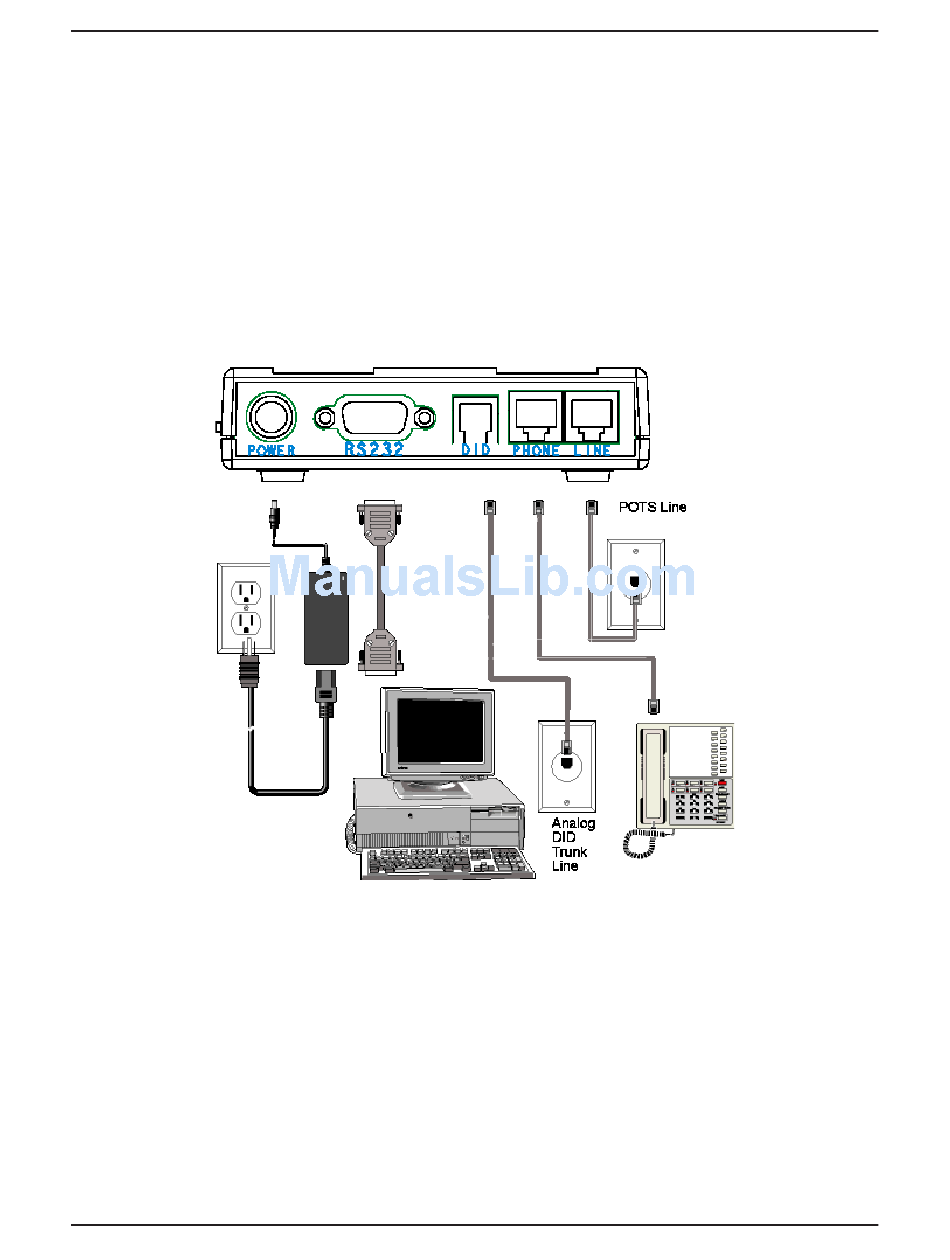

Step 2: Connect the Modem to Your System

Turn off your computer. Place the modem in a convenient location, and then connect it to your
computer's serial port, the phone line, AC power, DID line, and your phone.
Connect the Modem to Your PC
Plug one end of the serial cable into the connector on the modem, and plug the other end into a
serial port on your computer, such as COM1 or COM2.
Connect the Modem to the Telephone Line
Plug one end of the phone cable into the modem's LINE jack and the other end into a phone wall
jack. The phone cable is included with your modem.
Note: The LINE jack is not interchangeable with the PHONE jack. Do not plug the phone into the LINE
jack or the line cable into the PHONE jack.
