Summary of Contents for Midas VERONA

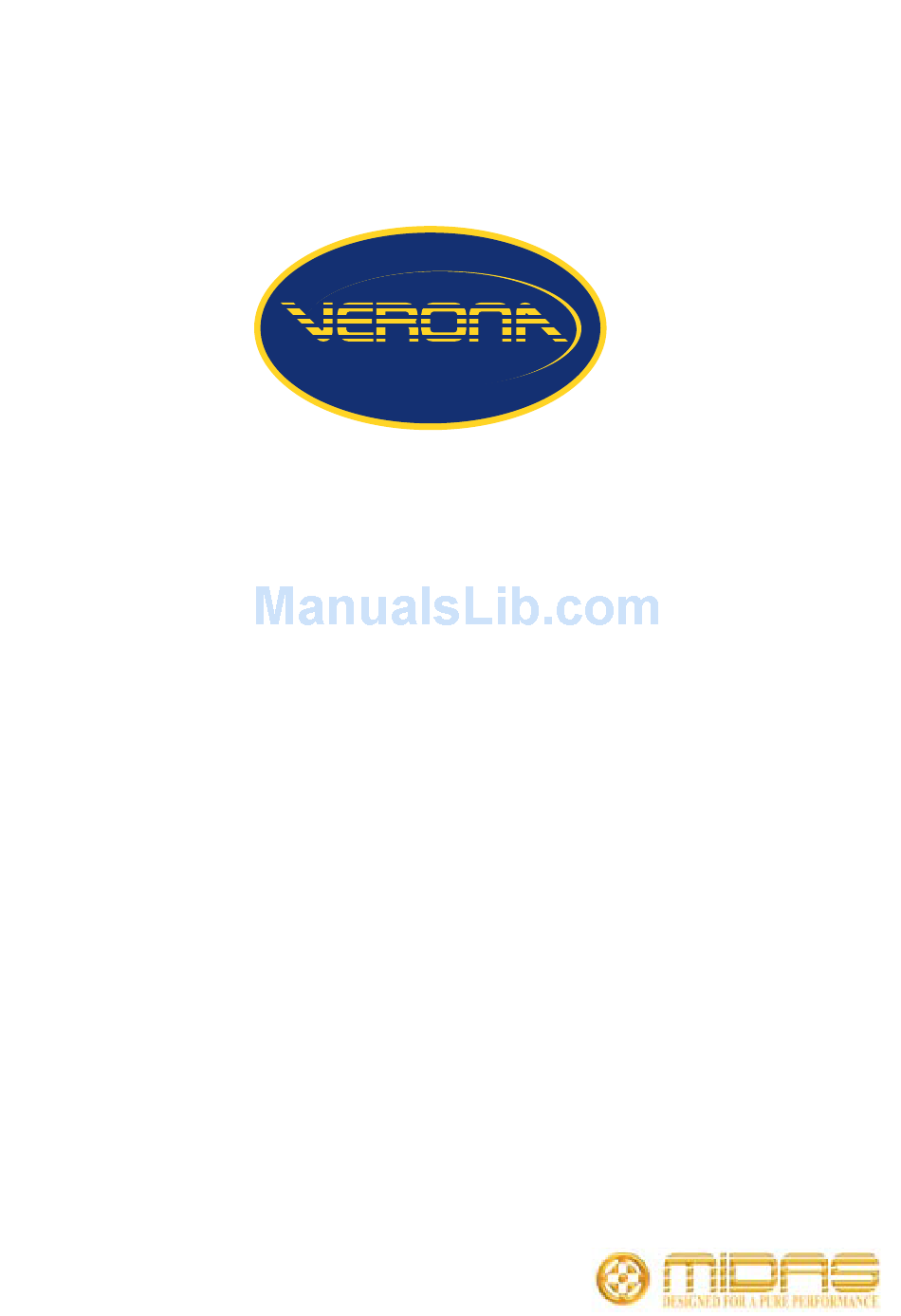

- Page 1 OPERATORS MANUAL Klark Teknik Group, Klark Teknik Building, Walter Nash Road, Kidderminster. Worcestershire. DY11 7HJ. England. Tel:+44 1562 741515 Fax:+44 1562 745371 Email: sales@ktgplc.com Website: www.midasconsoles.com...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE AVIS: RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR These symbols are internationally accepted symbols that warn of potential hazards with electrical products. -
Page 5: Declaration Of Conformity
Klark Teknik Group (UK) Plc Klark Teknik Building, Walter Nash Road, Kidderminster, Worcestershire, DY11 7HJ. Declare that a sample of the following product:- Product Type Number Product Description Nominal Voltage (s) Current Freq Verona Professional Audio 115V AC 2.2A 50/60Hz Mixing Desk 230V AC 1.1A... -
Page 7: Table Of Contents
In addition the Verona has a flexible buss structure allowing the engineer to mix in stereo or LCR. The Verona, also allows the user to route to any of 20 other busses (8 Auxiliary Busses, 8 Group Busses and 4 Matrix Busses) for even the most demanding application. - Page 8 All testing and servicing should ONLY be carried out by a qualified engineer. Connections To ensure the correct and reliable operation or your Midas Verona console, only high quality screened twisted pair audio cable and metal bodied connectors should be used. Female XLR...
- Page 9 Mono Input Channel Operators Manual - Page 7...
-
Page 10: Mono Input Channels
Midas service agent). bass Front Panel aux pre The actual number of mono input channels on your Verona will depend upon your choice of frame, however functionality remains the same aux 1 -15dB Pad - The Pad switch provides 15dB... -
Page 11: Equalisation
Mono Input Channels Mono Input Channels power Channel Equalisation mic gain Each mono input channel of the Verona has a four (4) band sweep EQ allowing tonal control over the input signal. hi-pass treble Treble (Gain) - The gain of the treble equaliser is continuously variable from -15dB to +15dB with a centre detent at 0dB. -
Page 12: Auxiliary Outputs
Mono Input Channels power Auxiliary Outputs mic gain The Verona has 8 auxiliary outputs which can be used for effects sends, monitors or as extra assignable outputs from the console. hi-pass Pre-Fade auxiliary (aux) sends are sourced after the channel Insert, Mute and EQ but before the channel fader (and EQ if the Aux Pre EQ switch is depressed). -
Page 13: Pan And Routing
Mono Input Channels power Pan and Routing mic gain The Verona is a flexible mixing console with eight group buss outputs plus stereo and mono outputs. Groups hi-pass Signal can be routed to any of the eight group busses by depressing the corresponding group select switch. - Page 14 8 Mute 1,2,3 & 4 - The Verona has four (4) automute busses that can be controlled from the centre section of the groups console. To assign an input channel to an automute, switch in the desired mute switch.
- Page 15 Multi Function Input Channel Operators Manual - Page 13...
-
Page 16: Multifunction Input Channels
- T. Hot Signal - R. Cold Signal - S. Screen Front Panel The actual number of multifunction input channels on your Midas Verona will depend upon your choice of frame. However, each frame functions in essentially the same way. -
Page 17: Channel Equalisation
Multi Function Input Channels Multi Function Input Channels power Channel Equalisation mic gain The Verona’s multifunction channels each have treble and bass shelving EQ and hi and lo-mid sweep EQ stages for tonal control. 80Hz hi-pass line gain stereo treble... -
Page 18: Auxiliary Outputs
80Hz hi-pass The Verona has eight (8) auxiliary outputs which can be used for effects sends, monitor sends or as extra assignable outputs from the line gain stereo console. -
Page 19: Pan And Routing
Multi Function Input Channels Multi Function Input Channels power Pan and Routing mic gain The Verona is a flexible mixing console with eight group buss outputs plus stereo and mono outputs. 80Hz hi-pass Groups line gain Signal can be routed to any of the eight group busses by depressing the corresponding group select switch. - Page 20 To add effects to a mono mic input on a multifunction channel, use the insert send of the channel into the effects unit input and the stereo outputs of the effects unit into the stereo line inputs of the same channel on the Verona.
-
Page 21: Output Module
Output Module groups - auxes - masters - matrices - talk buss - solo control - automutes - Operators Manual - Page 19... -
Page 22: Output Module Notes
Why not buy a monitor or FOH console? The Verona has been developed with real world sound engineers in mind. The real flexibility of the Verona is in the speed in which the change over can be made and also the ability to create a... - Page 23 Verona Group Outputs Verona Group Outputs Rear Panel Each group buss can be connected to external equipment by means of one single insert insert balanced male XLR socket (0dBu nominal level). In addition to this, each group can be inserted into by means of a single...
- Page 24 Verona Matrix Outputs Verona Matrix Outputs Rear Panel The Verona’s matrix outputs can matrix direct matrix direct matrix direct matrix direct be found on the rear of the in 4 in 3 in 2 in 1 console. Four male XLR sockets are provided, one for each matrix output.
- Page 25 XLR Wiring Pin 1 - Shield, Pin 2 - Hot Signal, Pin 3 - Cold Signal direct mono Front Panel Verona provides eight independent auxiliary outputs which are controlled in this section. Group Aux C/O - The group auxiliary group changeover is described at the beginning of this section.
- Page 26 Verona Master Outputs Verona Master Outputs The Verona’s main outputs are located on the rear of the console and provide: insert insert insert Output Source Connector Nom. Level master meters Master L Left Buss XLR Male (Bal) 0dBu tape PUSH...
-
Page 27: Groups
Verona Master Outputs Verona Master Outputs master meters left mono right talk Talk External - Talk external enables the talk out and talk in signals on the solo meters external left right rear of the console. The talk in signal is summed with the internal talk mic... - Page 28 Verona Master Outputs Verona Master Outputs The controls on this page are those directly responsible for the main outputs from the console. Stereo to Mono - When depressed, master meters stereo a sum of the stereo left and right signals are routed to the mono...
- Page 29 Setting up the Verona Operators Manual - Page 27...
-
Page 30: The Effect Of Eq
Setting Up The Verona The Verona was designed with real world sound engineers in mind, working in the real world. With it’s flexible routing and dual purpose functionality, the Verona is as happy running monitors as it is front of house. For engineers that haven’t got a great deal of experience in live sound engineering, here are a few helping guidelines. -
Page 31: Dynamic Processing
Unity gain is a gain of 1 (i.e. no gain or attenuation is applied to a signal). If a signal entered a mono line level input of the Verona at 0dBu and the gain was set to +15dB (an internal 15dB attenuation sets the net gain to 0dB), then the signal was routed to each output at 0dB, the channel fader was set to 0dB and each output fader was set to 0dB, the output should be 0dBu (or unity). -
Page 32: Signal Processing And Amplifiers
The final links in the system tend to be graphical equalisers, loudspeaker processors and finally amplifiers and speakers. Graphical equalisers have the same problems as the Verona’s EQ. If excessive boost is applied to the signal, the graphic equaliser’s output may be overloaded. If, the output of the Verona is higher than the maximum input level of the graphic, the input of the graphic may be overloaded. -
Page 33: Monitor Mode
Routing The flexible routing of the Verona allows the console to operate as both a Front of House (FOH) and Monitor console, or as a combination of both. For operators that haven’t got a great deal of experience, here are a few helping guidelines. - Page 35 Functional Block Diagrams Operators Manual - Page 33...
- Page 36 Operators Manual - Page 34...
- Page 37 Operators Manual - Page 35...
- Page 38 Operators Manual - Page 36...
- Page 39 Operators Manual - Page 37...
- Page 41 Dimensions and Weights Operators Manual - Page 39...
- Page 42 Dimensions and Weights Operators Manual - Page 40...
-
Page 43: Rear Panel Description
Rear panel Description Operators Manual - Page 41... - Page 44 Rear Panel Description Operators Manual - Page 42...
-
Page 45: Features
Specification and Features Operators Manual - Page 43... -
Page 46: Operators Manual
Verona Features Verona Features The following list of features is based upon the thirty-two channel frame size console. The thirty-two channel Verona features: 24 mono input channels 8 stereo input channels 8 Auxiliary Outputs 1 through 6 with Global Pre/Post Fader selection and selectable Pre/Post EQ 7 &... - Page 47 Verona Specification Verona Specification Internal Power Supply Type Switching Line Voltage 90 - 240V AC Line Frequency 50/60Hz Input Impedance Microphone 1k5 ohm Balanced Line 10k ohm Balanced Input Gain (all faders at 0dB) Microphone Continuously variable from +15dB to +60dB...
- Page 48 24 - 32 40 - 56 The internal supplies on the 64 channel Verona should be switched on at approximately the same time so that excessive load is not applied to any single supply. The external power supply can be used to add or increase redundancy or to replace the internal supplies. The external supply has a “daisy chain”...
- Page 49 Crib Sheet Mono Input Crib Sheet Mono Input Notes:...
- Page 50 Crib Sheet Crib Sheet Multi Function Input Multi Function Input Notes:...
- Page 52 Midas Verona Operators Manual Issue 1.1 - February 2004 DOC02-Verona Due to a policy of continual product improvement, specification and features may be subject to change without notice.
