Item Description
17 10/100/1000 NIC activity LED
18 10/100/1000 NIC link LED

SAS and SATA hard drive LEDs

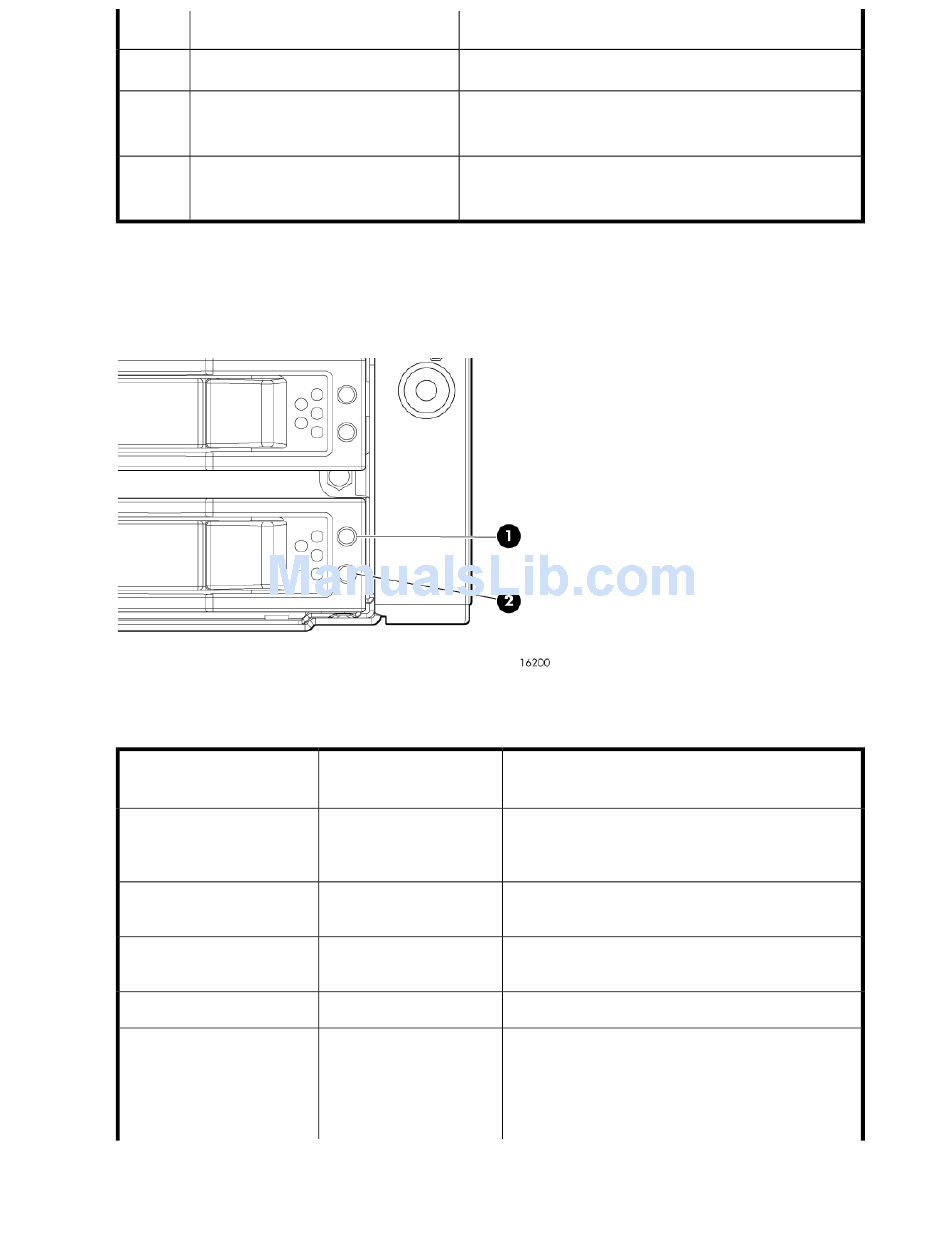

The following figure shows SAS/SATA hard drive LEDs. These LEDs are located on all HP All-in-One
hot plug hard drives.
Figure 9 SAS/SATA hard drive LEDs
Table 13 SAS and SATA hard drive LED combinations
1. Fault/UID LED
(amber/blue)
Alternating amber and blue
Steadily blue
Amber, flashing regularly (1
Hz)
Off
Amber, flashing regularly (1
Hz)
Status
Off = Not linked to network
Green or flashing = Network activity
Off = No network activity
Green = Linked to network
Off = Not linked to network
2. Online/activity LED
(green)
On, off, or flashing
On, off, or flashing
On
On
Flashing regularly (1 Hz)
Status
The drive has failed, or a predictive failure alert has
been received for this drive; it also has been selected
by a management application.
The drive is operating normally, and it has been
selected by a management application.
A predictive failure alert has been received for this
drive. Replace the drive as soon as possible.
The drive is online, but it is not active currently.
Do not remove the drive. Removing a drive may
terminate the current operation and cause data loss.
The drive is part of an array that is undergoing
capacity expansion or stripe migration, but a
predictive failure alert has been received for this
All-in-One Storage System 43
