2 Storage system components

This chapter provides illustrations of the AiO400r, AiO400t, and AiO600 Storage System hardware
components.
NOTE:
Connecting the storage system power cord illuminates the LEDs on the front of the unit, the Systems Insight
Display LED (if applicable), and the LEDs on the NIC connector (rear panel). The Lights-Out NIC LED (rear
panel) illuminates if the Lights-Out port is connected. Connecting the power cord also restores the storage
server to whatever previous powered state it was last in. This could result in the server powering up, the
fans operating, and the power indicator coming on.
NOTE:
The keyboard, mouse, and monitor are used only for the direct attach method of accessing the system.
They are not provided with your storage system.

HP StorageWorks 400r All-in-One Storage System

The following figures show components, controls and indicators located on the front and rear panels
of the AiO400r.

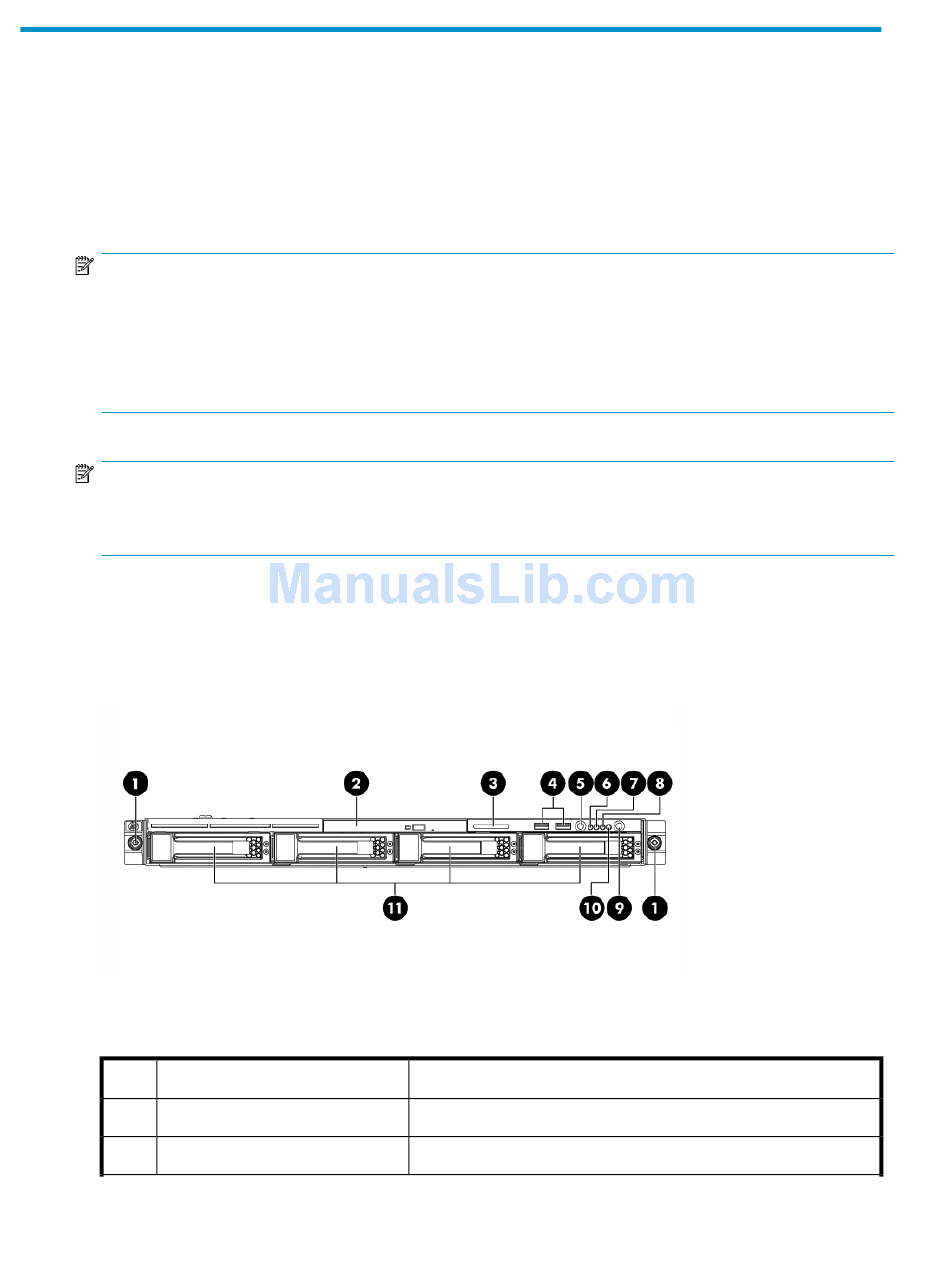

Figure 2 HP StorageWorks 400r All-in-One Storage System front panel
Table 6 HP StorageWorks 400r All-in-One Storage System front panel components
Item Description
1 Thumbscrews for rack mounting
2 DVD ROM drive
Status
N/A
N/A
