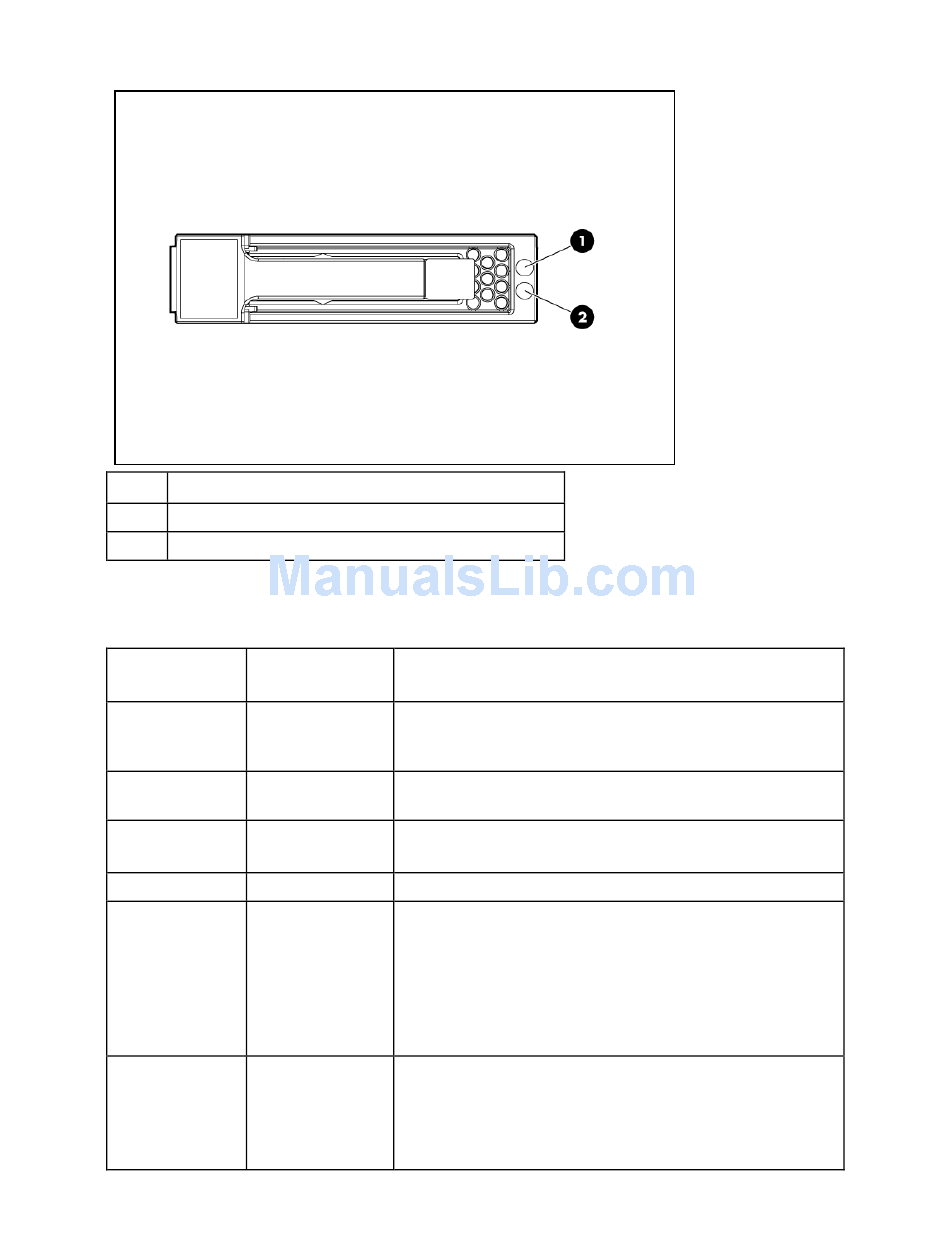

SAS and SATA hard drive LEDs

Item Description
1 Fault/UID LED (amber/blue)
2 Online LED (green)

SAS and SATA hard drive LED combinations

Online/activity
LED (green)
On, off, or
flashing
On, off, or
flashing
On
On
Flashing regularly
(1 Hz)
Flashing regularly
(1 Hz)
Fault/UID LED Interpretation
(amber/blue)
Alternating amber The drive has failed, or a predictive failure alert has been
and blue received for this drive; it also has been selected by a
management application.
Steadily blue The drive is operating normally, and it has been selected by a
management application.
Amber, flashing A predictive failure alert has been received for this drive.
regularly (1 Hz)
Replace the drive as soon as possible.
Off The drive is online, but it is not currently active.
Amber, flashing
Do not remove the drive. Removing a drive may terminate the
regularly (1 Hz) current operation and cause data loss.
The drive is part of an array that is undergoing capacity
expansion or a stripe size migration, but a predictive failure
alert has been received for this drive. To minimize the risk of
data loss, do not replace the drive until the expansion or
migration is complete.
Off Do not remove the drive. Removing a drive may terminate the
current operation and cause data loss.
The drive is rebuilding, or it is part of an array that is
undergoing array expansion, logical drive extension, a stripe
size migration, or RAID migration.
Component identification 11
