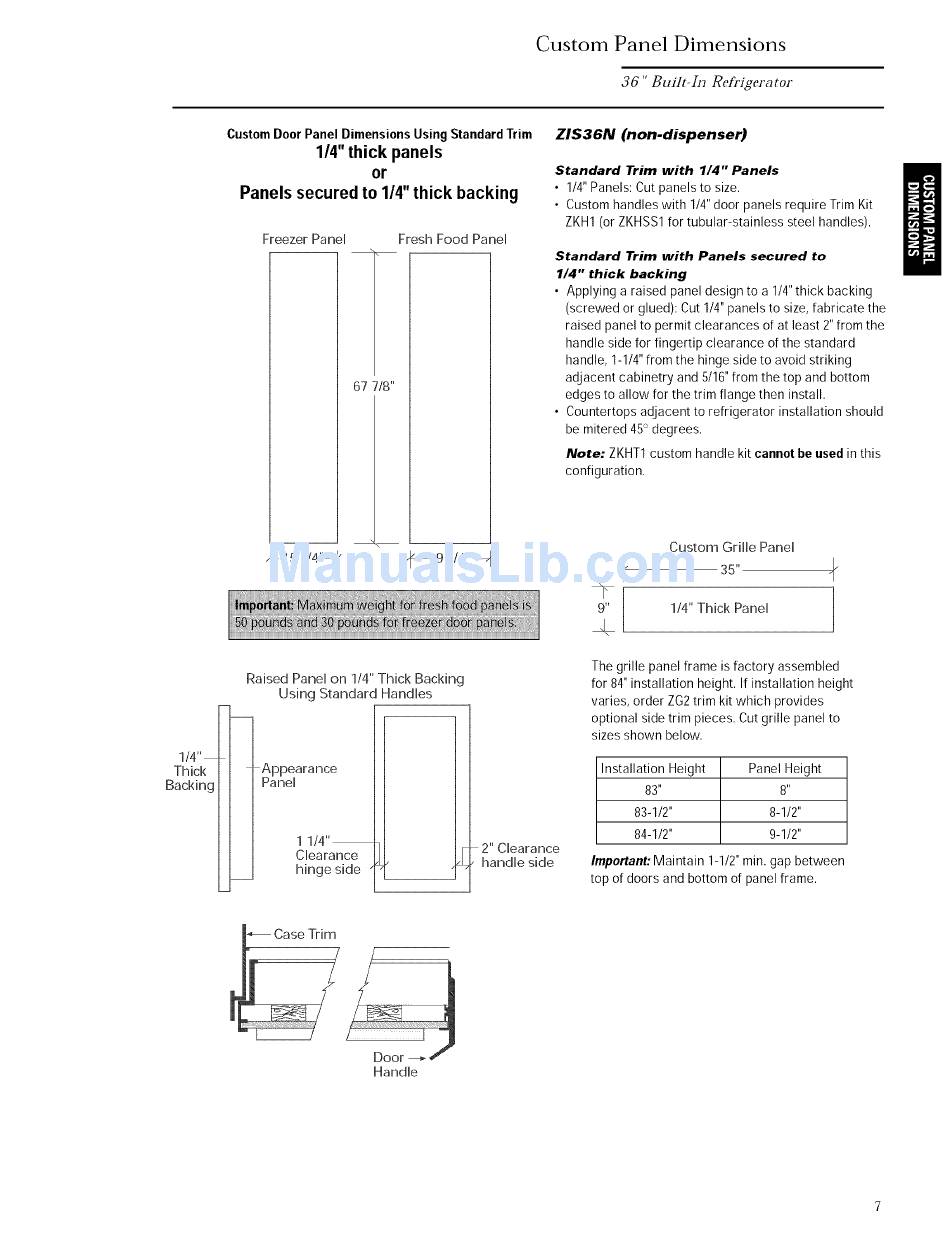

Custom Panel Dimensions
36 " Built-In Refrigerator
Custom Door Panel Dimensions Using Standard Trim
1/4" thick panels
or
Panels secured to 1/4" thick backing
Freezer Panel Fresh Food Panel
-15 1/4"--
67 7/8"
--19 1/4"--
Raised Panel on 1/4" Thick Backing
1/4" --_
Thick I I bApp earance
BacMnc[ [ [ Pand
2" Clearance
handle side
ZIS36N (non-dispenser)
Standard Trim with 1/4" Panels
• 1/4" Panels: Cut panels to size.
• Custom handles with 1/4" door panels require Trim Kit
ZKH1 (or ZKHSS1 for tubular-stainless steel handles).
Standard Trim with Panels secured to
1/4" thick backing
• Applying a raised panel design to a 1/4" thick backing
(screwed or glued): Cut 1/4" panels to size, fabricate the
raised panel to permit clearances of at least 2" from the
handle side for fingertip clearance of the standard
handle, 1-1/4" from the hinge side to avoid striking
adjacent cabinetry and 5/16" from the top and bottom
edges to allow for the trim flange then install.
• Countertops adjacent to refrigerator installation should
be mitered 45° degrees.
Note: ZKHT1 custom handle kit cannot be used in this
configuration.
9"
.b
Custom Grille Panel
35"
1t4" Thick Panel
The grille panel frame is factory assembled
for 84" installation height. If installation height
varies, order ZG2 trim kit which provides
optional side trim pieces. Cut grille panel to
sizes shown below.
Installation Height Panel Height
83" 8"
83-1/2" 8-1/2"
84-1/2" 9-1/2"
Important: Maintain 1-1/2" rain, gap between
top of doors and bottom of panel frame.
Handle
