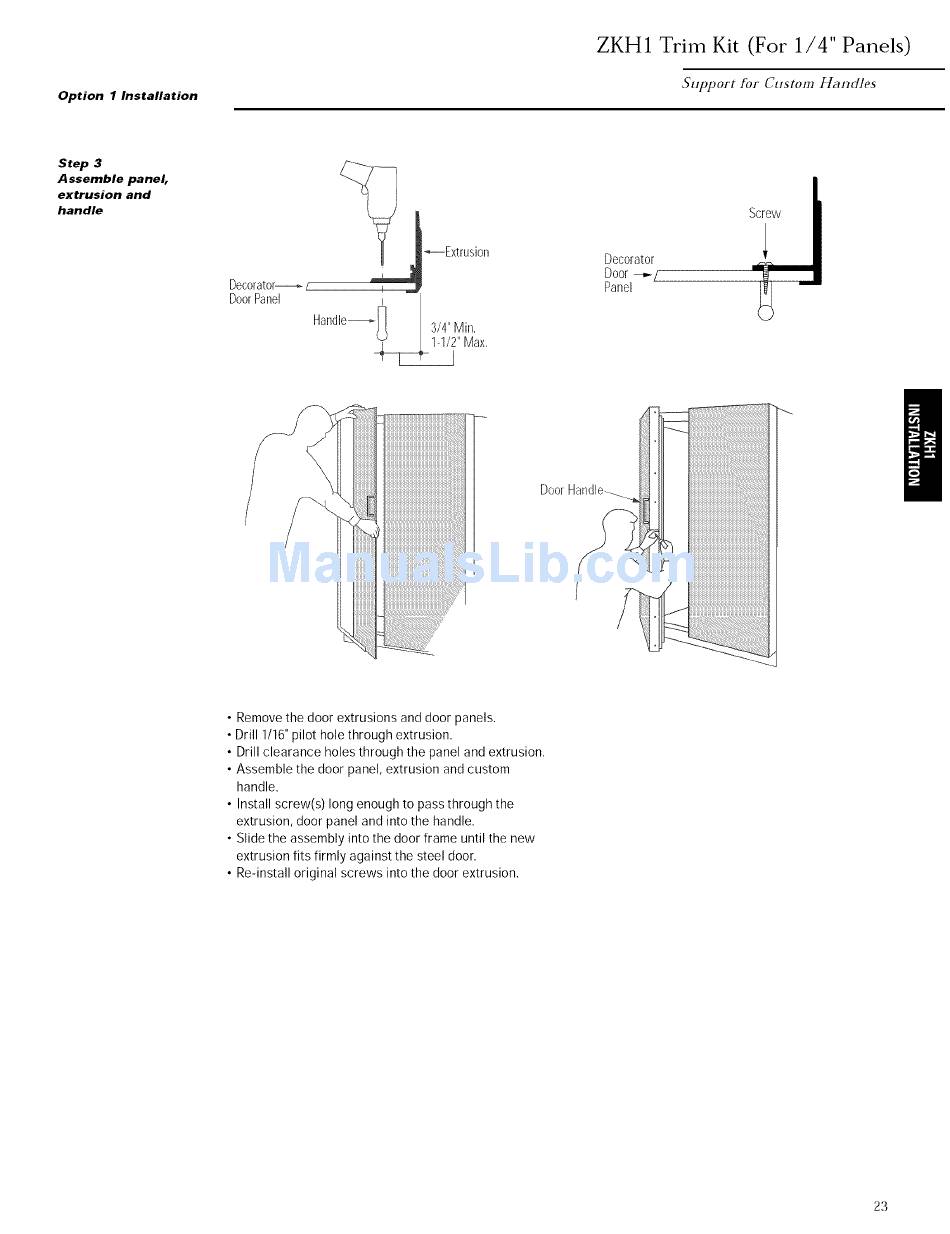

Option 1 Installation
ZKH1 Trim Kit (For 1/4" Panels)
Support for Custom H;_ndles
Step 3
Assemble panel,
extrusion and
handle
Decorator_ /
DoorPanel
I
Handle_l;
_Extrusion
3/4"Min.
1-1/2"Max,
Decorator
Door _/
Panel
Door Handle-__
Screw
/
• Remove the door extrusions and door panels.
• Drill 1/16" pilot hole through extrusion.
• Drill clearance holes through the panel and extrusion.
• Assemble the door panel, extrusion and custom
handle.
• Install screw(s) long enough to pass through the
extrusion, door panel and into the handle.
• Slide the assembly into the door frame until the new
extrusion fits firmly against the steel door.
• Re-install original screws into the door extrusion.
