GE Monogram ZIS36N Custom Options Manual And Installation Instructions page 13

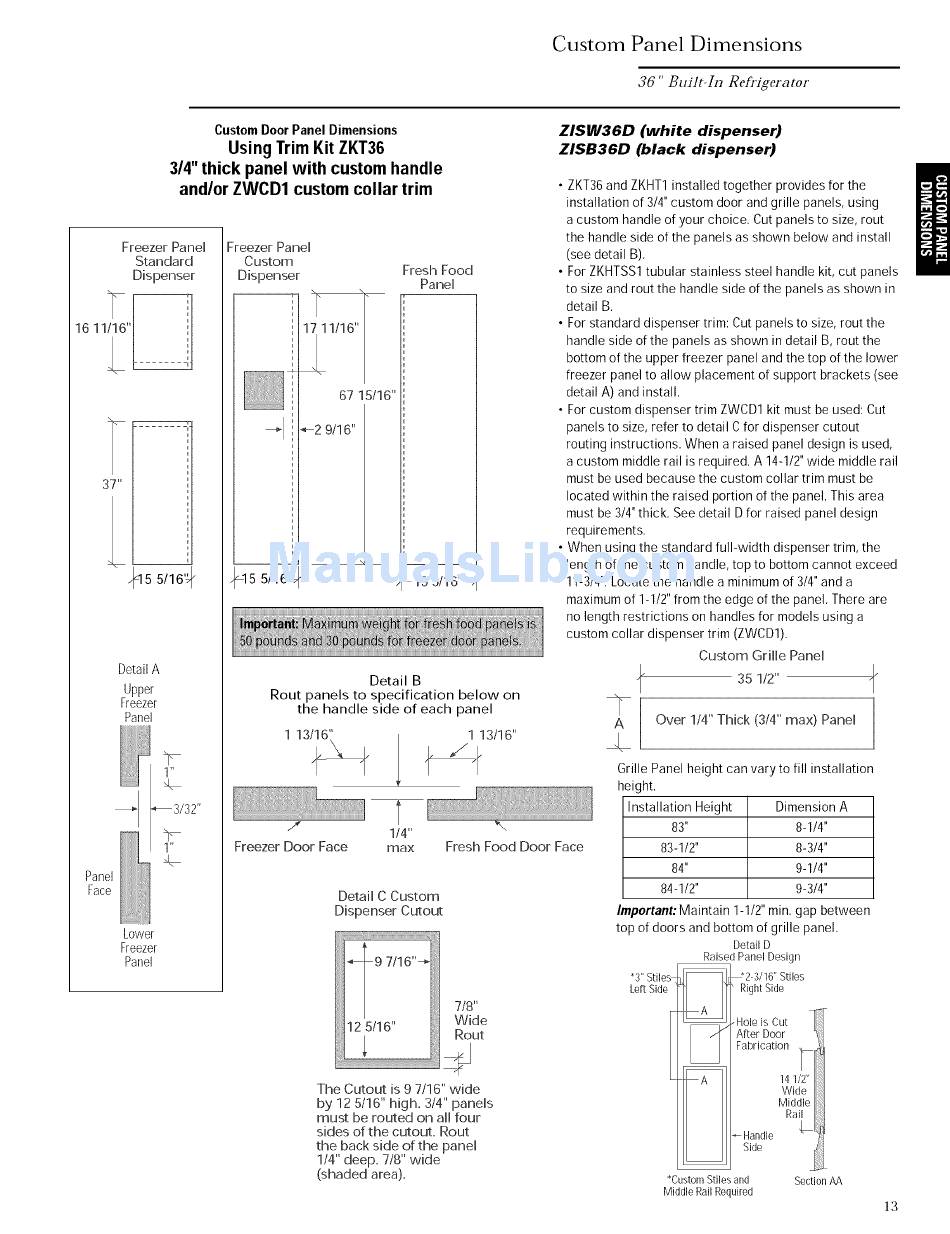

Custom Panel Dimensions
36" Built-In Refrigerator
Custom Door Panel Dimensions
Using Trim Kit ZKT36
314" thick panel with custom handle
and/or ZWCD1 custom collar trim
Freezer Pand
Standard
Dispenser
16 1111_6" _
r ........ i"
i I
i
/
Detail A
Upper
Freezer
Panel
1 "
.J
1"
Panel
Face
Lower
Freezer
Panel
Freezer Pand
Custom
Dispenser
67 15/16"
_1 _2 9116"
L15 5/16",
Fresh Food
Pand
19 5t16"=
Detail B
Rout panels to specification below on
the handle side of each panel
1 13116"
f 1t4" x
Freezer Door Face max Fresh Food Door Face
DetMIC Custom
Dispenser Cutout
_19 7/16"+
12 5116"
7/8"
Wide
Rout
The Cutout is 9 7/16" wide
by 12 5116" high. 3/4" panels
must be routed on all four
sides of the cutout. Rout
the back side of the panel
1/4" deep. 7/8" wide
(shaded area).
ZISW36D (white dispenser)
ZISB36D (black dispenser)
• ZKT36 and ZKHT1 installed together provides for the
installation of 3/4" custom door and grille panels, using
a custom handle of your choice. Cut panels to size, rout
the handle side of the panels as shown below and install
(see detail B).
• For ZKHTSS1 tubular stainless steel handle kit, cut panels
to size and rout the handle side of the panels as shown in
detail B.
• For standard dispenser trim: Cut panels to size, rout the
handle side of the panels as shown in detail B, rout the
bottom of the upper freezer panel and the top of the lower
freezer panel to allow placement of support brackets (see
detail A) and install.
• For custom dispenser trim ZWCD1 kit must be used: Cut
panels to size, refer to detail C for dispenser cutout
routing instructions. When a raised panel design is used,
a custom middle rail is required. A 14-1/2" wide middle rail
must be used because the custom collar trim must be
located within the raised portion of the panel. This area
must be 3/4" thick. See detail D for raised panel design
requirements.
• When using the standard full-width dispenser trim, the
length of the custom handle, top to bottom cannot exceed
11-3/4". Locate the handle a minimum of 3/4" and a
maximum of 1-1/2" from the edge of the panel. There are
no length restrictions on handles for models using a
custom collar dispenser trim (ZWCD1).
Custom Grille Panel
35 1t2"
A Over 114" Thick (314" max) Panel
Grille Panel height can vary to fill installation
height.
Installation Height Dimension A
83" 8-1/4"
83-1/2" 8-3/4"
84" 9-1/4"
84-1/2" 9-3/4"
Important: Maintain 1-1/2" min. gap between
top of doors and bottom of grille panel.
Detail D
Raised Panel Design
*3" Stiles _2-3/161' Stiles
Left Side Right Side
A
Hole is Cut
After Door
__ Fabrication _[
A
-Handle
Side
*Custom Stiles and
Middle Rail Required
141/2"
Wide
Middle
Rail
Section AA
13
