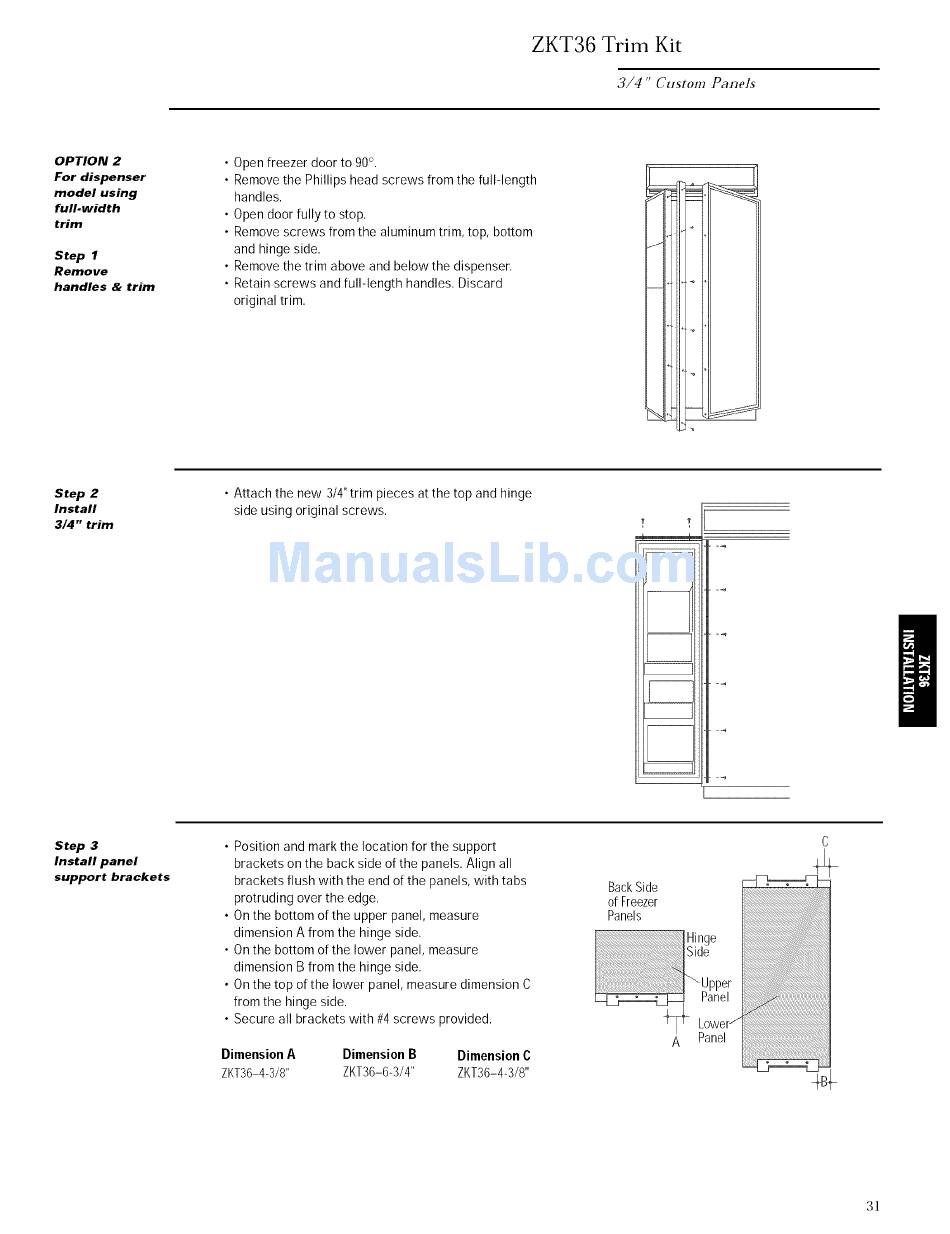

GE Monogram ZIS36N Custom Options Manual And Installation Instructions page 31

ZKT36
Trim Kit
3/4 " Custom Pm_eI_
OPTION 2
For dispenser
model using
full.width
trim
Step 1
Remove
handles & trim
• Open freezer door to 90°.
• Remove the Phillips head screws from the full-length
handles.
• Open door fully to stop.
• Remove screws from the aluminum trim, top, bottom
and hinge side.
• Remove the trim above and below the dispenser.
• Retain screws and full-length handles. Discard
original trim.
Step 2
Install
3/4" trim
• Attach the new 3/4"trim pieces at the top and hinge
side using original screws.
Step 3
Install panel
support brackets
• Position and mark the location for the support
brackets on the back side of the panels. Align all
brackets flush with the end of the panels, with tabs
protruding over the edge.
• On the bottom of the upper panel, measure
dimension A from the hinge side.
• On the bottom of the lower panel, measure
dimension B from the hinge side.
• On the top of the lower panel, measure dimension C
from the hinge side.
• Secure all brackets with #4 screws provided.
Dimension A DimensionB DimensionC
ZKT364-3/8" ZKT36-6-3/4" ZKT36-44/8"
BackSide
of Freezer
Panels
A Panel
_LB
31
