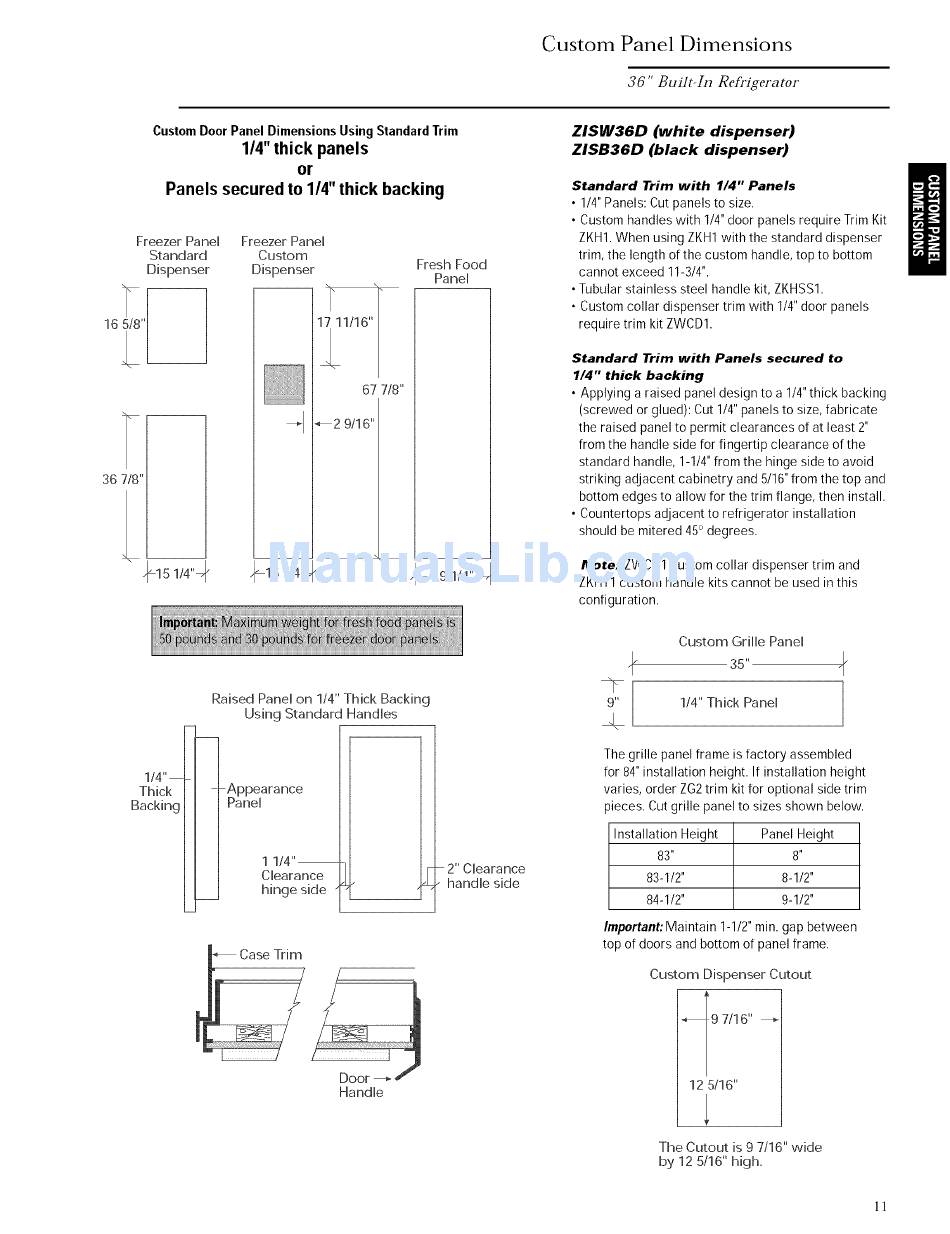

Custom Panel Dimensions
36" Built-In Refrigerator
Custom Door Panel Dimensions Using Standard Trim
1/4" thick panels
or
Panels secured to 1/4" thick backing
Freezer Panel Freezer Panel
Standard Custom
Dispenser Dispenser
67 7/8"
_1 _2 9t16"
36 7/8"
_15 1/4 4
Fresh Food
Panel
_19 1/4"
ZISLIV36D (white dispenser)
ZISB36D (black dispenser)
mm
Standard Trim with 1/4" Panels
H
• 1/4" Panels: Cut panels to size.
• Custom handles with 1/4" door panels require Trim Kit
ZKH1. When using ZKH1 with the standard dispenser
trim, the length of the custom handle, top to bottom
cannot exceed 11-3/4".
• Tubular stainless steel handle kit, ZKHSS1.
• Custom collar dispenser trim with 1/4" door panels
require trim kit ZWCD1,
Standard Trim with Panels secured to
1/4" thick backing
• Applying a raised panel design to a 1/4" thick backing
(screwed or glued): Cut 1/4" panels to size, fabricate
the raised panel to permit clearances of at least 2"
from the handle side for fingertip clearance of the
standard handle, 1-1/4" from the hinge side to avoid
striking adjacent cabinetry and 5/16" from the top and
bottom edges to allow for the trim flange, then install.
• Countertops adjacent to refrigerator installation
should be mitered 45° degrees.
Note: ZWCD1 custom collar dispenser trim and
ZKHT1 custom handle kits cannot be used in this
configuration.
Raised Panel on 1/4" Thick Backing
Using Standard Handles
1/4"--_
Thick II pAppearance
Backing I I Panei
2" Clearance
handle side
9"
Custom Grille Panel
35"
1/4" Thick Panel
The grille panel frame is factory assembled
for 84" installation height. If installation height
varies, order ZG2 trim kit for optional side trim
)ieces. Cut grille panel to sizes shown below.
Installation Height Panel Height
83" 8"
83-1/2" 8-1/2"
84-1/2" 9-1/2"
Important: Maintain 1-1/2" min, gap between
top of doors and bottom of panel frame.
Custom Dispenser Cutout
Handle
12 5/16"
The Cutout is 9 7/16" wide
by 12 5/16" high,
11
