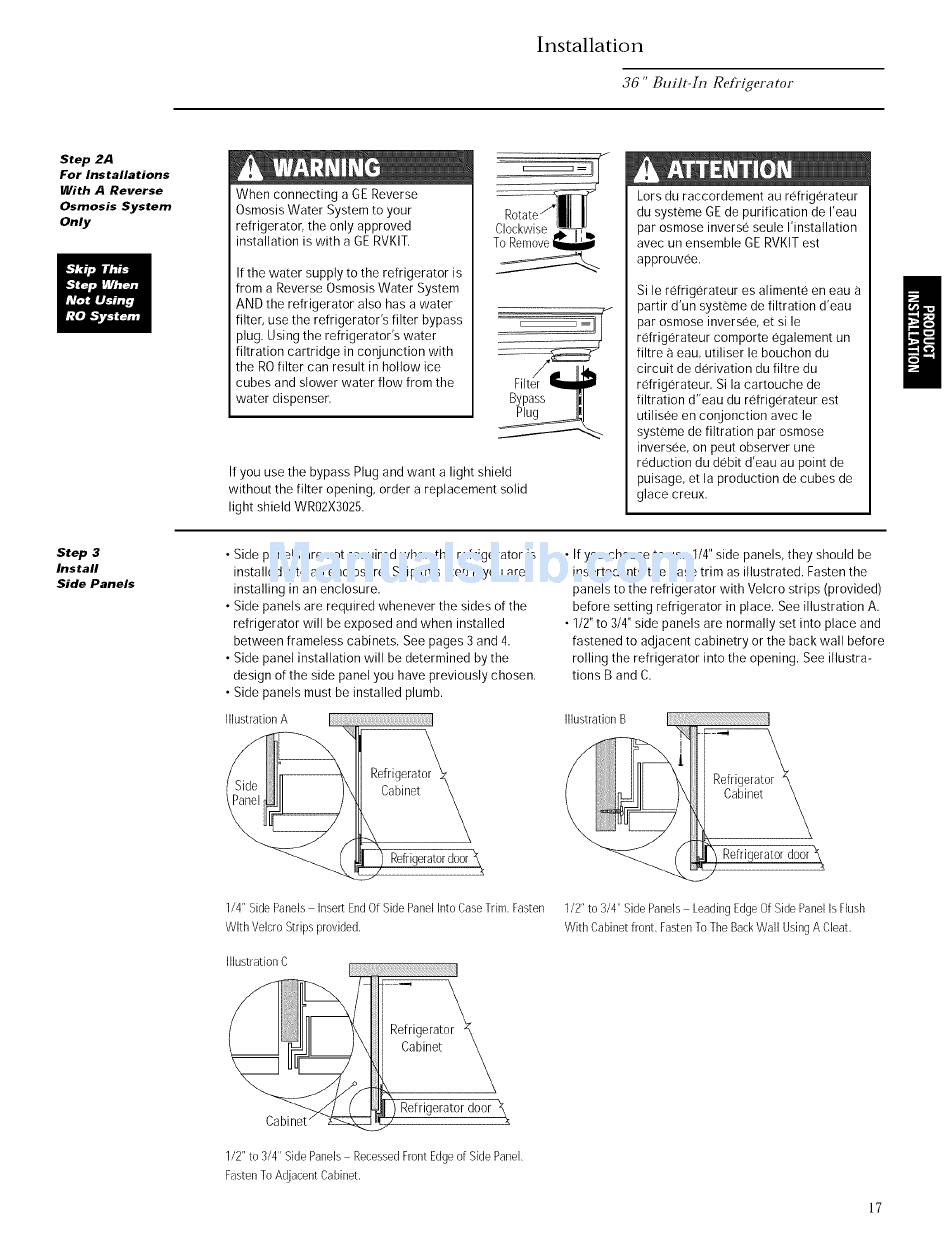

GE Monogram ZIS36N Custom Options Manual And Installation Instructions page 17

Installation
36" Built-In Refrigerator
Step 2.4
For Installations
With A Reverse
Osmosis System
Only
When connecting a GE Reverse
Osmosis Water System to your
refrigerator, the only approved
installation is with a GE RVKIT.
If the water supply to the refrigerator is
from a Reverse Osmosis Water System
AND the refrigerator also has a water
filter, use the refrigerator's filter bypass
plug. Using the refrigerator's water
filtration cartridge in conjunction with
the RO filter can result in hollow ice
cubes and slower water flow from the
water dispenser.
z,t.SU
Clockwise ,_, m,b
To Remove
Bypass
Plug
If you use the bypass Plug and want a light shield
without the filter opening, order a replacement solid
light shield WR02X3025.
Lors du raccordement au refrigerateur
du systeme GE de purification de I'eau
par osmose inverse seule I'installation
avec un ensemble GE RVKIT est
approuvee.
Si le refrigerateur es alimente en eau
partir d'un systeme de filtration d'eau
par osmose inversee, et si le
refrigerateur comporte egalement un
filtre a eau, utiliser le bouchon du
circuit de derivation du filtre du
refrigerateur. Si la cartouche de
filtration d"eau du refrigerateur est
utilisee en conjonction avec le
systeme de filtration par osmose
inversee, on peut observer une
reduction du debit d'eau au point de
puisage, et la production de cubes de
glace creux.
Step 3
Install
Side Panels
• Side panels are not required when the refrigerator is
installed into an enclosure. Skip this step if you are
installing in an enclosure.
• Side panels are required whenever the sides of the
refrigerator will be exposed and when installed
between frameless cabinets. See pages 3 and 4.
• Side panel installation will be determined by the
design of the side panel you have previously chosen.
• Side panels must be installed plumb.
Illustration A
Refrigeratordoor _
1/4" Side Panels Insert EndOf Side Panel Into CaseTrim, Fasten
With Velcro Strips provided,
Illustration C
I
Ref igerator_K_
Cabinet
Refrigerator door
1/2" to 3/4" Side Panels RecessedFront Edgeof Side Panel.
FastenTo Adjacent Cabinet.
• If you choose to use 1/4" side panels, they should be
inserted into the case trim as illustrated. Fasten the
panels to the refrigerator with Velcro strips (provided)
before setting refrigerator in place. See illustration A.
• 1/2" to 3/4" side panels are normally set into place and
fastened to adjacent cabinetry or the back wall before
rolling the refrigerator into the opening. See illustra-
tions B and C.
Illustration B
1][ie_rigerator_
Cabinet'_
_ Refrigeratordoo,
1/2" to 3/4" Side Panels Leading EdgeOf Side Panel Is Flush
With Cabinet front. FastenTo The BackWall Using A Cleat.
