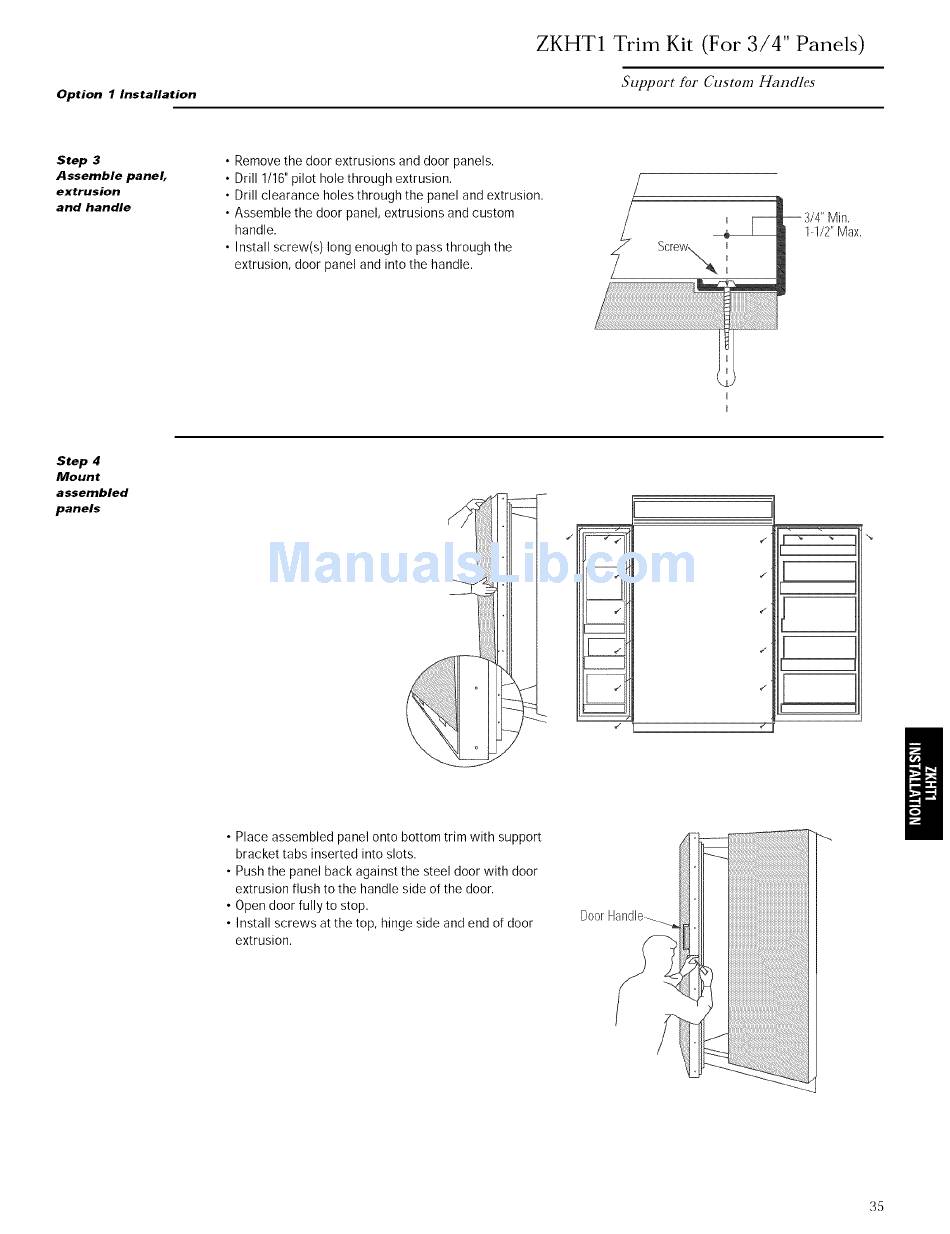

Option 1 Installation
ZKHT1
Trim Kit (For
3/4"
Panels)
Support For CIIStOlll
H;_ndles
Step 3
Assemble panelr
extrusion
and handle
• Remove the door extrusions and door panels.
• Drill 1/16" pilot hole through extrusion.
• Drill clearance holes through the panel and extrusion.
• Assemble the door panel, extrusions and custom
handle.
• Install screw(s) long enough to pass through the
extrusion, door panel and into the handle.
-- 3/4" Min.
lq/2" Max,
Step 4
Mount
assembled
panels
• Place assembled panel onto bottom trim with support
bracket tabs inserted into slots.
• Push the panel back against the steel door with door
extrusion flush to the handle side of the door.
• Open door fully to stop.
• Install screws at the top, hinge side and end of door
extrusion.
....... 1
/
