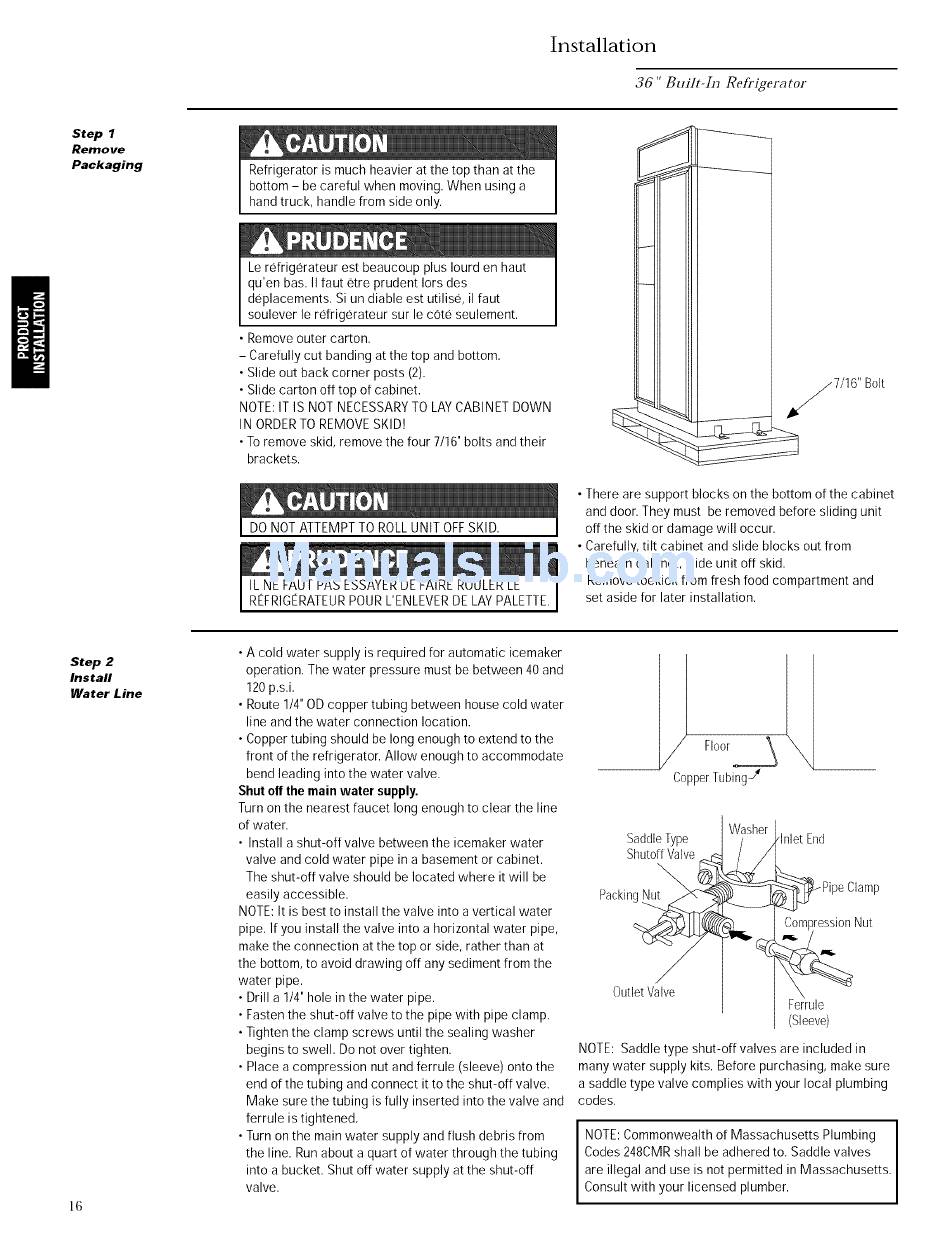

Installation
36" Built_ln Refriserator
Step 1
Remove
Packaging
Refrigerator is much heavier at the top than at the
bottom - be careful when moving. When using a
hand truck, handle from side only.
Le refrigerateur est beaucoup plus Iourd en haut
qu'en has. II faut etre prudent Iors des
deplacements. Si un diable est utilise, il faut
soulever le refrigerateur sur le cote seulement.
• Remove outer carton.
- Carefully cut banding at the top and bottom.
• Slide out back corner posts (2).
• Slide carton off top of cabinet.
NOTE: IT IS NOT NECESSARY TO LAY CABINET DOWN
IN ORDER TO REMOVE SKID!
• To remove skid, remove the four 7/16" bolts and their
brackets.
DO NOT ATTEMPTTO ROLLUNIT OFFSKID.
IL NE FAUT PAS ESSAYER DE FAIREROULERLE
REFRIGERATEUR POURL'ENLEVERDE LAYPALETTE.
• There are support blocks on the bottom of the cabinet
and door. They must be removed before sliding unit
off the skid or damage will occur.
• Carefully, tilt cabinet and slide blocks out from
beneath cabinet, slide unit off skid.
• Remove toekick from fresh food compartment and
set aside for later installation.
Step 2
Install
Water Line
16
• A cold water supply is required for automatic icemaker
operation. The water pressure must be between 40 and
120 p.s.i.
• Route 1/4" OB copper tubing between house cold water
line and the water connection location.
• Copper tubing should be long enough to extend to the
front of the refrigerator. Allow enough to accommodate
bend leading into the water valve.
Shut off the main water supply.
Turn on the nearest faucet long enough to clear the line
of water.
• Install a shut-off valve between the icemaker water
valve and cold water pipe in a basement or cabinet.
The shut-off valve should be located where it will be
easily accessible.
NOTE: It is best to install the valve into a vertical water
pipe. If you install the valve into a horizontal water pipe,
make the connection at the top or side, rather than at
the bottom, to avoid drawing off any sediment from the
water pipe.
• Drill a 1/4" hole in the water pipe.
• Fasten the shut-off valve to the pipe with pipe clamp.
• Tighten the clamp screws until the sealing washer
begins to swell. Do not over tighten.
• Place a compression nut and ferrule (sleeve) onto the
end of the tubing and connect it to the shut-off valve.
Make sure the tubing is fully inserted into the valve and
ferrule is tightened.
• Turn on the main water supply and flush debris from
the line. Run about a quart of water through the tubing
into a bucket. Shut off water supply at the shut-off
valve.
Floor
CopperTubingJ
Saddle Type
Shuto_
Packing _
Outlet Valve
,Inlet End
-Pipe Clamp
Compression Nut
Ferrule
(Sleeve)
NOTE: Saddle type shut-off valves are included in
many water supply kits. Before purchasing, make sure
a saddle type valve complies with your local plumbing
codes.
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
