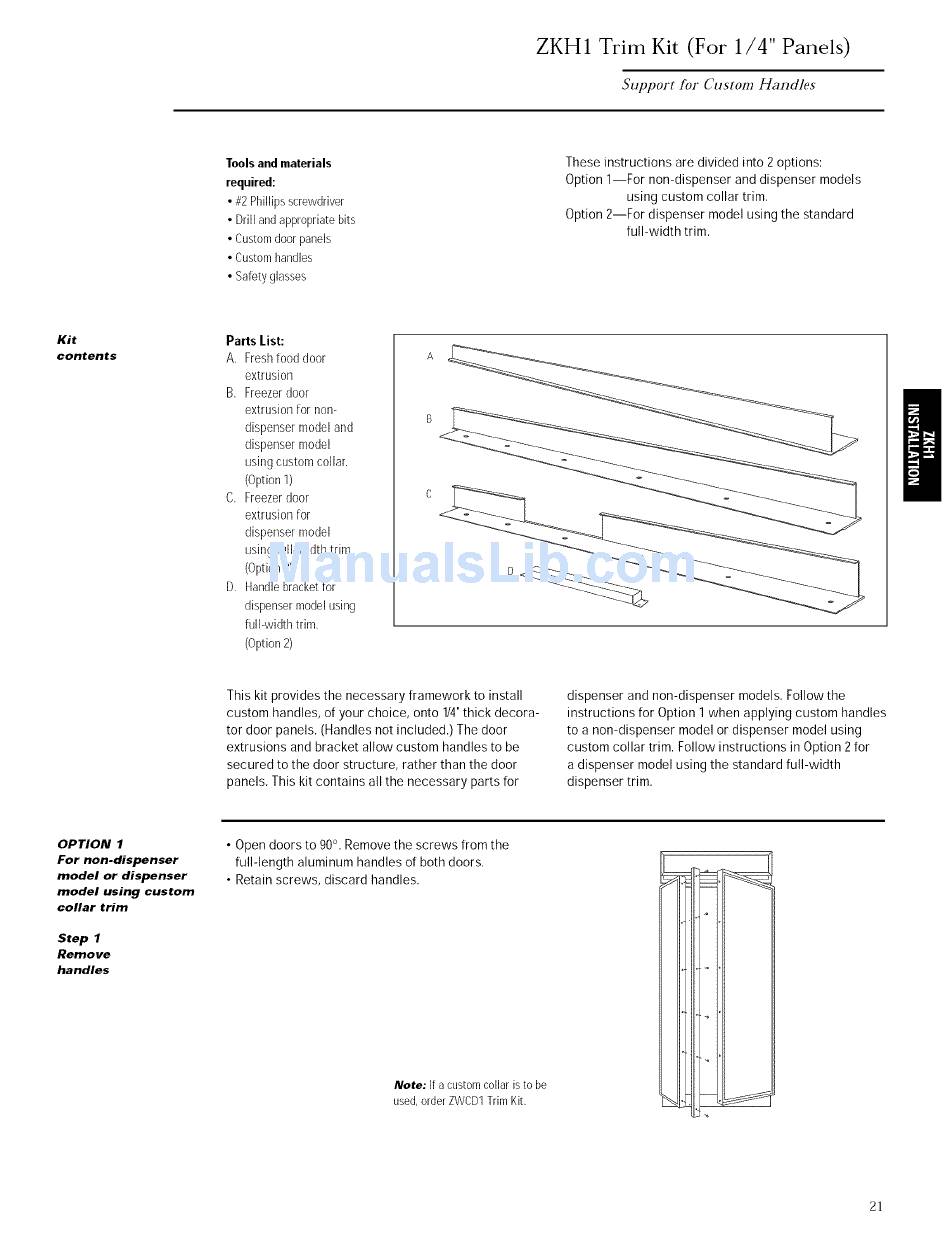

ZKH1 Trim Kit (For 1/4" Panels)
Support for Custom H;_ndles
Tools and materials
required:
• #2
Phillips
s crewdriver
• Drill and appropriate bits
• Custom door panels
• Custom handles
• Safety glasses
These instructions are divided into 2 options:
Option 1--For non-dispenser and dispenser models
using custom collar trim.
Option 2--For dispenser model using the standard
full-width trim.
Kit
contents
Parts List:
A. Freshfood door
extrusion
B, Freezerdoor
extrusionfor non-
dispensermodeland
dispensermodel
using customcollar,
(Option1)
C, Freezerdoor
extrusionfor
dispensermodel
using full-width trim.
(Option2)
D, Handlebracket f or
dispenser modelusing
full-widthtrim.
(Option2)
/
This kit provides the necessary framework to install
custom handles, of your choice, onto 1/4" thick decora-
tor door panels. (Handles not included.) The door
extrusions and bracket allow custom handles to be
secured to the door structure, rather than the door
panels. This kit contains all the necessary parts for
dispenser and non-dispenser models. Follow the
instructions for Option 1 when applying custom handles
to a non-dispenser model or dispenser model using
custom collar trim. Follow instructions in Option 2 for
a dispenser model using the standard full-width
dispenser trim.
OPTION 1
For non-dispenser
model or dispenser
model using custom
collar trim
Step 1
Remove
handles
• Open doors to 90°. Remove the screws from the
full-length aluminum handles of both doors.
• Retain screws, discard handles.
Note: If a customcollar is to be
used,order ZWCD1Trim Kit.
21
