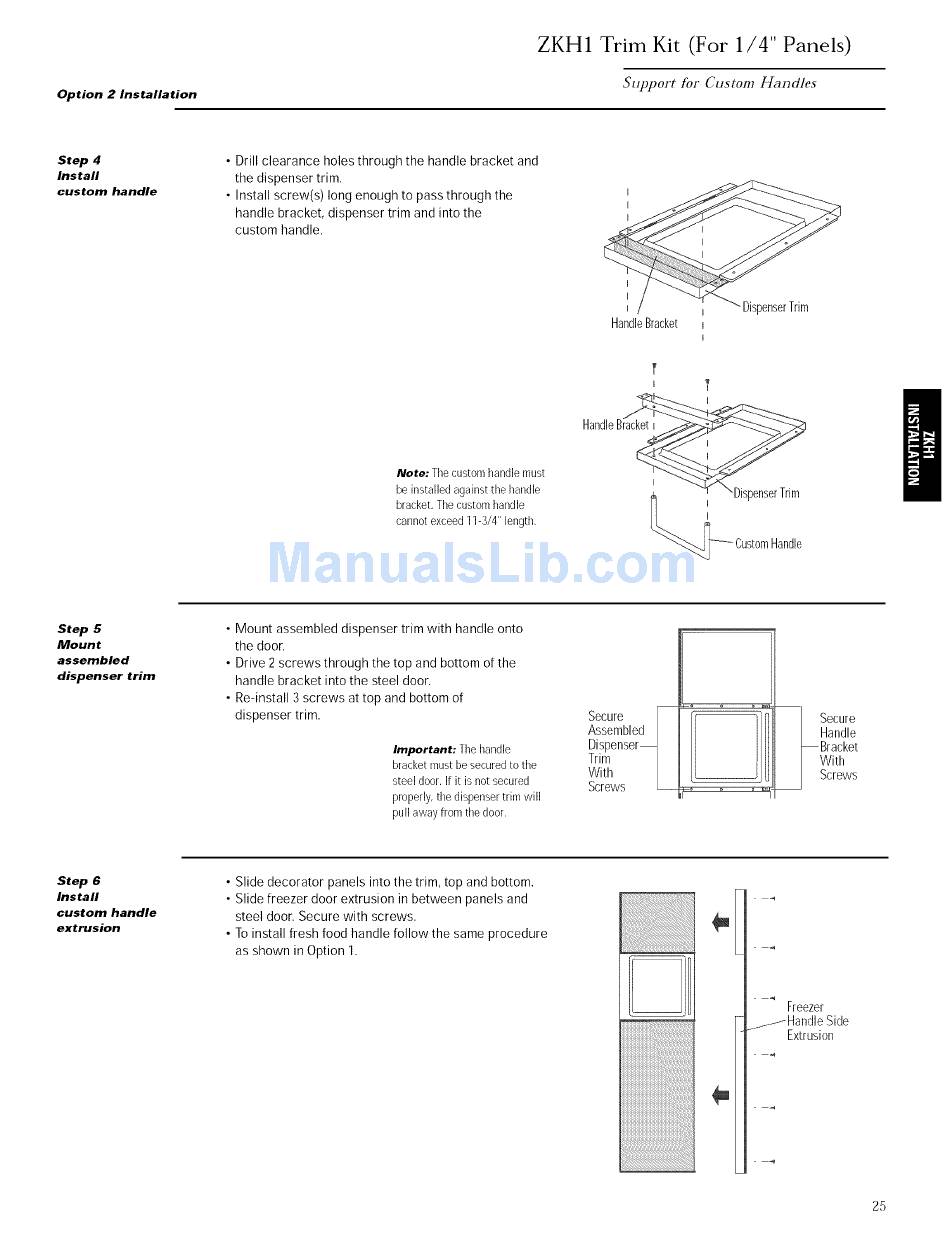

GE Monogram ZIS36N Custom Options Manual And Installation Instructions page 25

Option 2 Installation
ZKH1 Trim Kit (For 1/4" Panels)
Support for Custom H;_ndles
Step 4
Install
custom handle
• Drill clearance holes through the handle bracket and
the dispenser trim.
• Install screw(s) long enough to pass through the
handle bracket, dispenser trim and into the
custom handle.
HandleBracket
Dispenser Trim
Note: The customhandle must
be installed against tile handle
bracket.Tile customhandle
cannot exceed11-3/4" length.
I
_..._ ii Dispenser T rim
_ Custom Handle
/
Step 5
Mount
assembled
dispenser trim
• Mount assembled dispenser trim with handle onto
the door
• Drive 2 screws through the top and bottom of the
handle bracket into the steel door.
• Re-install 3 screws at top and bottom of
dispenser trim.
Important: The ilandle
bracket must be securedto ti_e
steel door. if it is not secured
properly, the dispensertrim will
pull away from the door.
Secure •
Assembled |
Dispenser |
Trim |
With
Screws
Secure
Handle
Bracket
With
Screws
Step 6
Install
custom handle
extrusion
• Slide decorator panels into the trim, top and bottom.
• Slide freezer door extrusion in between panels and
steel door. Secure with screws.
• To install fresh food handle follow the same procedure
as shown in Option 1.
i_i!i_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_
¢,
Freezer
_Handle Side
Extrusion
25
