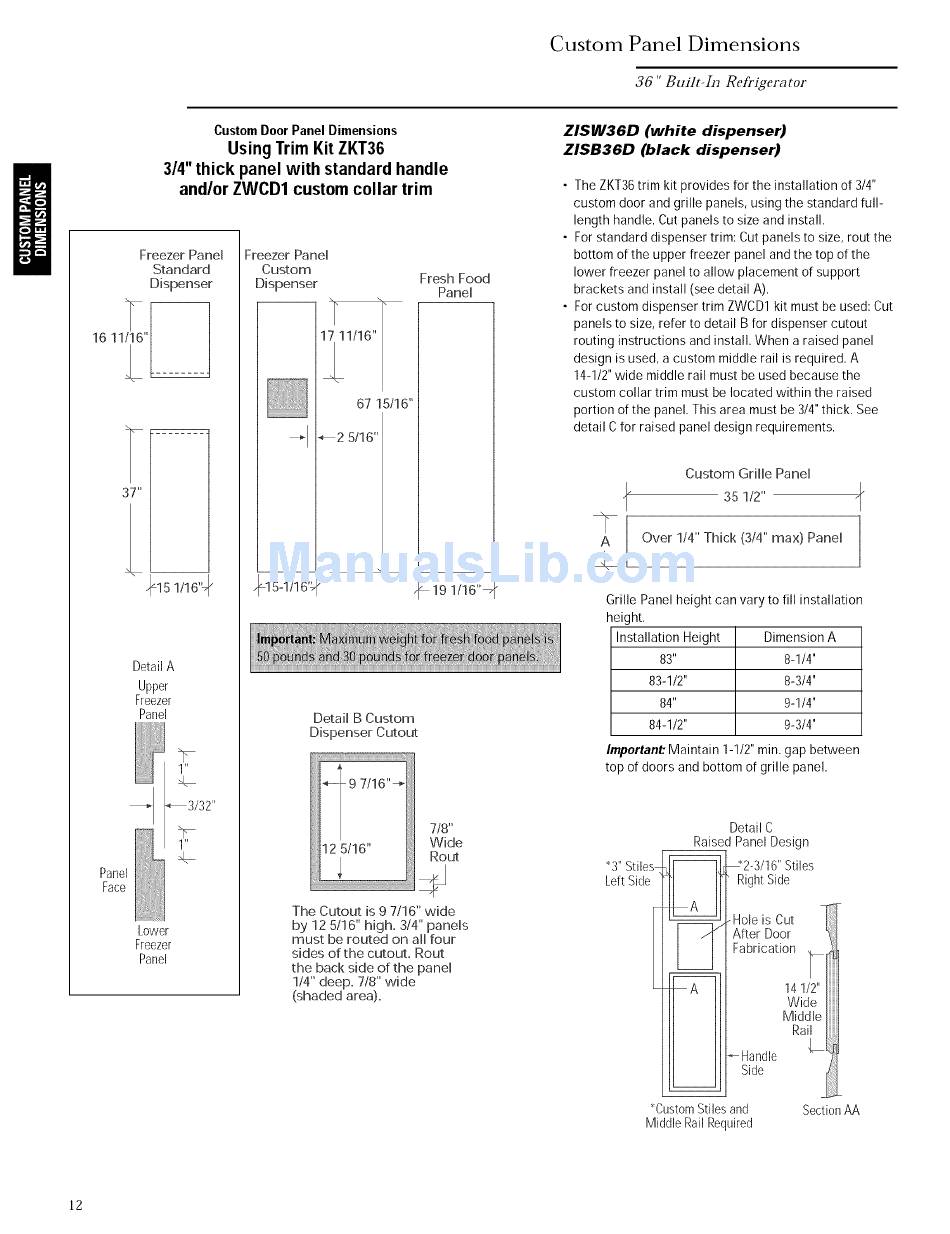

Custom Panel Dimensions
36" Built-In Refrigerator
Custom Door Panel Dimensions
Using Trim Kit ZKT36
3/4" thick panel with standard handle
and/or ZWCD1 custom collar trim
Freezer Panel
Standard
Dispenser
16 11_"_
DetailA
Upper
Freezer
Panel
1 "
.J.
1 "
Panel
Face
Lower
Freezer
Panel
Freezer Panel
Custom
Dispenser
Fresh Food
Panel
-- 19 1t16"-
Detail B Custom
Dispenser Cutout
_L9 7/16"_
12 5116"
7/8"
Wide
Rout
The Cutout is 9 7/16" wide
by 12 5116" high. 3t4" panels
must be routed on all four
sides of the cutout. Rout
the back side of the panel
1t4" deep. 7t8" wide
(shaded area).
ZISW36D (white dispenser)
ZISB36D (black dispenser)
• The ZKT36 trim kit provides for the installation of 3/4"
custom door and grille panels, using the standard full-
length handle. Cut panels to size and install.
• For standard dispenser trim: Cut panels to size, rout the
bottom of the upper freezer panel and the top of the
lower freezer panel to allow placement of support
brackets and install (see detail A).
• For custom dispenser trim ZWCD1 kit must be used: Cut
panels to size, refer to detail B for dispenser cutout
routing instructions and install. When a raised panel
design is used, a custom middle rail is required. A
14-1/2" wide middle rail must be used because the
custom collar trim must be located within the raised
portion of the panel. This area must be 3/4" thick. See
detail C for raised panel design requirements.
Custom Grille Panel
35 1t2"
Over 114" Thick (3/4" max) Panel
Grille Panel height can vary to fill installation
height.
Installation Height Dimension A
83" 8-1/4"
83-1/2" 8-3/4"
84" 9-1/4"
84-1/2" 9-3/4"
Important.. Maintain 1-1/2" min. gap between
top of doors and bottom of grille panel.
Detail C
Raised Panel Design
..... _2-3/16" Stiles
RightSide
--Handle
*Custom Stiles and
MiddleRail Required
Hole is Cut
After Door
Fabrication ,
14 !/2"
Wide
Middle
Rail
SectionAA
