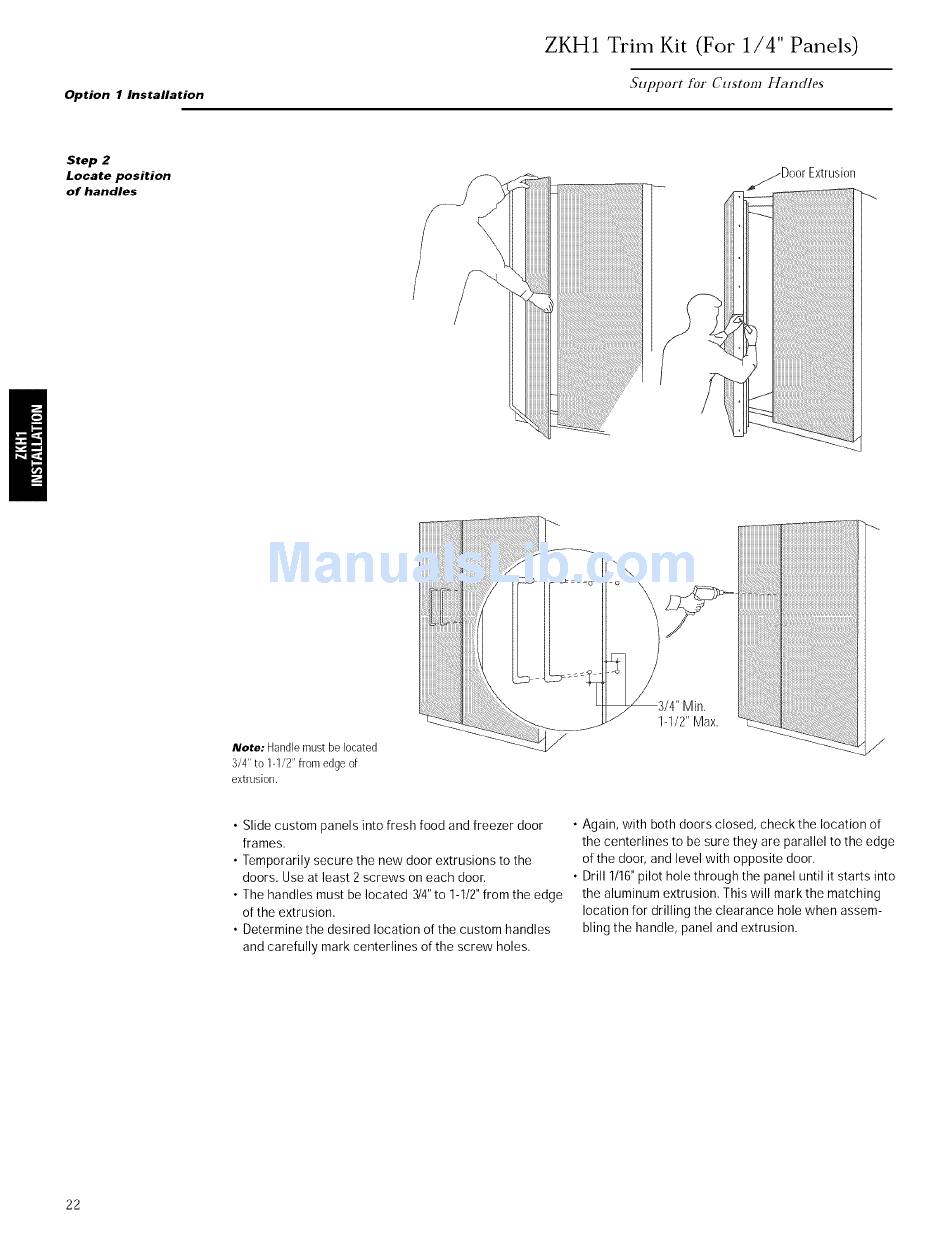

Option I Installation
ZKH1 Trim Kit (For 1/4" Panels)
Support for Custom H;_nctles
Step 2
Locate position
of handles
_.../Door Extrusion
Note: Handlemust be located
3/4" to 1ol/2" from edgeof
extrusion.
Min.
lq/2" Max
/
• Slide custom panels into fresh food and freezer door
frames.
• Temporarily secure the new door extrusions to the
doors. Use at least 2 screws on each door.
• The handles must be located :3/4"to 1-1/2" from the edge
of the extrusion.
• Determine the desired location of the custom handles
and carefully mark centerlines of the screw holes.
• Again, with both doors closed, check the location of
the centerlines to be sure they are parallel to the edge
of the door, and level with opposite door.
• Drill 1/16" pilot hole through the panel until it starts into
the aluminum extrusion. This will mark the matching
location for drilling the clearance hole when assem-
bling the handle, panel and extrusion.
