- Page 1 Personal Tracker User Manual V7.0 GT30i...
-
Page 2: Table Of Contents
Contents 1 Product Overview ........................- 3 - 2 For Your Safety ........................- 3 - 3 GT30i Characteristics ......................- 4 - 4 Getting Started ........................- 5 - 4.1 Hardware and Accessories ..................... - 5 - 4.2 View ........................... - 5 - 4.3 Functional Parts ...................... -
Page 3: Product Overview

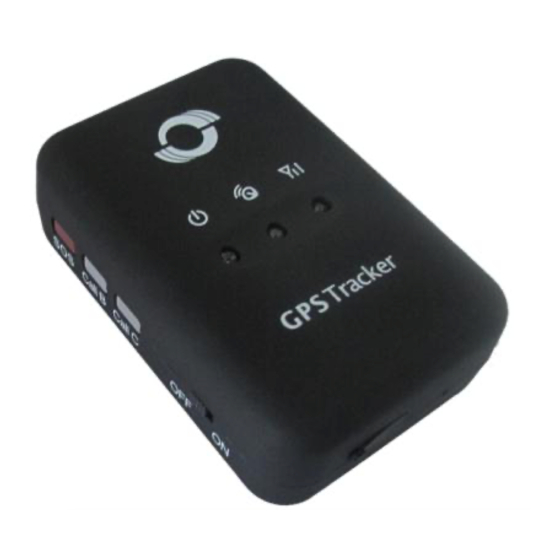

The GT30i is a GPS/GPRS based personal tracking device, which is compact and easy to use. GT30i has inbuilt GPS module to obtain accurate position data and utilizes its GSM capability to send the position data to a specified mobile phone or server base to allow users to monitor people or pets using the tracker. -
Page 4: Gt30I Characteristics
Switch off in aircraft Follow any restrictions. Wireless devices can cause interference in aircraft. Switch off when refueling Do not use GT30i when at a refueling point. Do not use near fuels or chemicals. Switch off near blasting Follow any restrictions. Do not use GT30i when blasting is in progress. -
Page 5: Getting Started
Side View Back View 4.3 Functional Parts Your GT30i has four buttons and three LEDs with three different colors to indicate the status of the unit. Red LED - indicating battery status Power is off or charging is complete Flashing (every 0.1 second) -
Page 6: First Use
- Check that the SIM Lock code is turned off - If you require the function of sending an SMS location report to the authorized phone number when it makes a call to the GT30i, please make sure the SIM installed supports displaying caller ID. -
Page 7: Change Password
4.4.2 Charge the battery for at least 3 hours in power-off status using the wall charger or car charger. Or you can connect the tracker directly to computer by USB for charging. Red light is on during charging and off when charging is complete. 4.4.3 Push the Power On/Off button to the ON side and wait for about 20 seconds. -
Page 8: Track
W000000,032,-120 7. Track 7.1 Track by SMS - Track on Demand - Reply with longitude, latitude, speed and date Command: W******,000 Description: Get the current location of the tracker, send this SMS or make a telephone call directly to the tracker and it will report its longitude and latitude by SMS with format as follows:- Latitude = 22 32 36.63N Longitude = 114 04 57.37E, Speed = 2.6854Km/h, 2008-12-24,01:50 Example:... -
Page 9: Google Earth And Google Map
Example: W000000,002,030 The tracker will send location data back to your mobile phone every 30 minutes. 7.4 Google Earth and Google Map Download Google Earth from http://earth.google.com/. Start Google Earth (For more information about Google Earth please refer to http://earth.google.com/) or go to http://maps.google.com in your Internet Explorer Input the latitude and longitude that you receive from the tracker by SMS and click the search button. -
Page 10: Track By Gprs (Meiligao Protocol) Between Server And Tracker
Please refer to MS01/MS02 User Guide for more information. 7.6 Track by GPRS (Meiligao Protocol) between Server and Tracker 7.6.1 Set Tracker’s GPRS ID Command: W******,010,ID Description: Set a digital GPRS ID for the tracker. Note: GPRS ID must not over 14 digits. Example: W000000,010,00001 7.6.2 Set APN... -
Page 11: Set Gprs Interval
The tracker will send every 600 seconds (10 minutes). For more information regarding GPRS tracking please refer to <GPRS Communication Protocol> 7.7 Track by GpsGate The GT30i supports GpsGate Software. Please contact us or GpsGate for more information of settings. 8. Authorization... -
Page 12: Call Function
9. Call Function You can use the earphone for conversation purpose. 9.1 Receiving Phone Call Use your phone or mobile phone to call the tracker, the green LED will be on. Press SOS button to receive the incoming call or press Call B button to reject the call. 9.2 Making Phone Call After you have authorized phone numbers for SOS/Call B/Call C button, you can press one of these buttons to make a call to the preset phone number. -
Page 13: Geo-Fence Alarm
2. Radii: [1, 4294967295] meter(s), suggest to be set above 100 meters; 3. GPRS command is 0x12 Example: W000000,006,1 When tracker moves out of this circle scope, it will send out an SMS alarm. 11.2 Geo-fence Alarm Command: W******,302,X Description: Turns on Geo-fencing alarm. When the tracker moves in/out the preset scope, it will send an SMS alarm to the authorized phone number for SOS. -
Page 14: Set Sensitivity Of Tremble Sensor
13. Set Sensitivity of Tremble Sensor Command: W******,035,XX Description: Send this command to set sensitivity of tremble sensor Note: 1. XX=[1,255], it will more sensitive if XX is more smaller 2. Default value is 30 Example: W000000,035,30 14. Listen-in (Voice Monitoring) Command: W******,030,T Description: Authorize a phone number to make a silence call to the tracker, the track answers the call automatically and allows the caller to listen to what happens around the tracker. -
Page 15: Auto Log When No Gprs
2. The logged message is in GPRMC format and includes: Date and time Longitude Latitude Speed Direction 3. All data, stored within the memory, may be exported to the PC using the USB connector. For this matter the “GPSLog” program has to be used (please refer to < GPSLog User Guide> and <GPRS Communication Protocol>... -
Page 16: Get Imei
18. Get IMEI Command: W******,601 Description: Get IMEI of the tracker. IMEI is 15 digits Example: W000000,601 19. Initialization Command: W******,990,099### Description: This is to make all settings (except for the password) back to factory default. Note: Send SMS “Default?” to the device, and then send (within 120 seconds) this SMS command to the tracker. -
Page 17: Copyright And Disclaimer
22. Copyright and Disclaimer © Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. The information contained herein may be changed at any time without prior notification. This manual nor any parts thereof may not be reproduced for any purpose whatsoever without the express written consent of Meiligao, nor transmitted in any form either electronically or mechanically, including photocopying and recording. - Page 18 F=2, only calls the authorized phone number; F=3, both SMS and calling P=1, set an authorized number for Input 1 P=2, set an authorized number for Input 2 T1: Preset phone number. Max.16 digits If you need to set different numbers for receiving SMS and phone call, you can then use W******,003,F,P,T1,T2, In this case T1 is the phone number for receiving SMS and T2 for receiving phone call.
- Page 19 X=0, turn off Extended Functions W******,008,ABCDEFGHIJ## W000000,008,1011100011### Remarks: A=0, turn off the function of sending SMS location report after a phone call is made to the tracker. A=1, turn on the function of sending SMS locaiton report after a phone call is made to the tracker. B=0, location data of NMEA 0183 GPRMC will be interpreted into normal text for easy reading.
- Page 20 Set DNS Server IP W******,009,DNS Server IP W000000,009,220.23.4.90 Remarks: In case the domain name you set by the last command (W******,012,IP, Port) doesn‟t work, which means your server IP is not properly set. You can first use this command to set DNS Server IP (please check with your DNS server provider for the DNS Server IP) and then redo the command W******,012,IP,Port.
- Page 21 X=0 turn off sleep mode X=1 Level I X=2 Level II X=3 Level III Here is some explanation for the sleep mode. GPS module will be closed for 64 seconds * X ( X=1, 2, 3), if it gets continuous GPS fixed for 32 times or Non-GPS fixed for 128 times。After that, GPS module will periodically work and close Power Down W******,026,XX...
-
Page 22: Annex 2. Troubleshooting
Wrong password in your SMS or wrong SMS Write correct password or SMS format format The SIM in GT30i has run out of credit Replace or top up the SIM card Problem: Green LED is Flashing (1 second on and 2 seconds off) -
Page 23: Contacts
Move the unit to a location with good GSM reception. Contacts If you encounter any problems when using our products, and cannot solve them by yourself, please contact our technical support team by writing an E-Mail to info@meitrack.com. We will be pleased to help you. - 23 -...
