MEITRACK® OBD Vehicle Tracker
Copyright © 2014 Meitrack Group All rights reserved.
File Name
MEITRACK TC68 User Guide
Project
TC68
Sub Project

User Guide

Revision
V1.8
TC68
User Guide
Creator
Creation Date
Update Date
Page
Confidential
External Documentation
-1-
Renny Lee
2012-07-13
2014-03-10
1 of 24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC68 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MeiTrack TC68

Summary of Contents for MeiTrack TC68

  • Page 1: User Guide

    MEITRACK TC68 User Guide Creator Renny Lee Project TC68 Creation Date 2012-07-13 Update Date 2014-03-10 Sub Project User Guide Page 1 of 24 Revision V1.8 Confidential External Documentation MEITRACK® OBD Vehicle Tracker TC68 User Guide Copyright © 2014 Meitrack Group All rights reserved.

  • Page 2: Table Of Contents

    TC68 Installation ............................. 19 5.1 Plug Car Connector Directly ........................19 5.2 Use the Extension Cable to Install (Optional) ..................... 20 Applicable Type of Vehicles ..........................22 Copyright and Disclaimer ..........................24 Copyright © 2014 Meitrack Group All rights reserved.

  • Page 3: Notice

    1 pc Velcro 1 pc Quick Start Instruction 1 pc Warranty Card 1 pc Certificate of Quality 1 pc CD (Including User Manuals, Protocol, Configuration 1 pc Software ) Package 1 Set Copyright © 2014 Meitrack Group All rights reserved.

  • Page 4: Product Function And Specifications

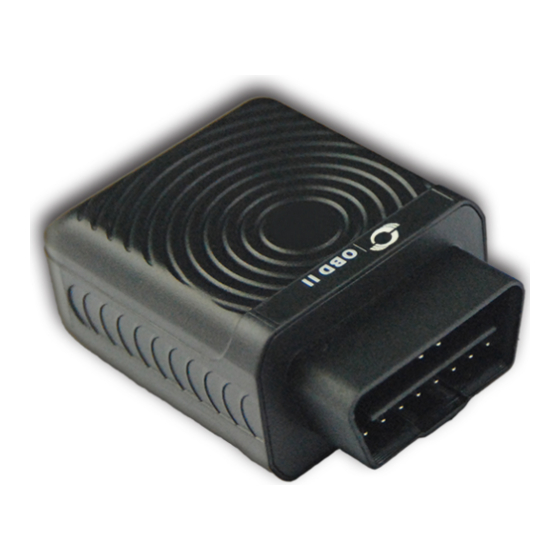

    2. Product Function and Specifications 2.1 Introduction TC68 is a GPS vehicle tracker specially developed and designed with OBD II (On-Board Diagnostics II) function, mainly used for vehicle tracking, anti-theft, vehicle examination and fault diagnostics etc. It can provide you with professional analysis for economic and safe driving.
