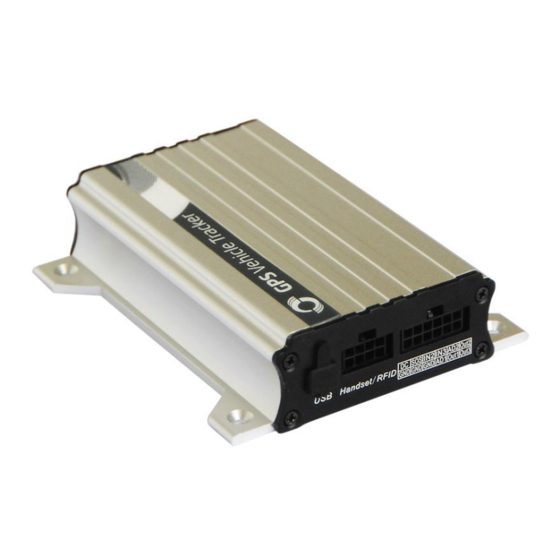

MEITRACK T1 User Guide
MEITRACK T1 User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MeiTrack T1

Summary of Contents for MeiTrack T1

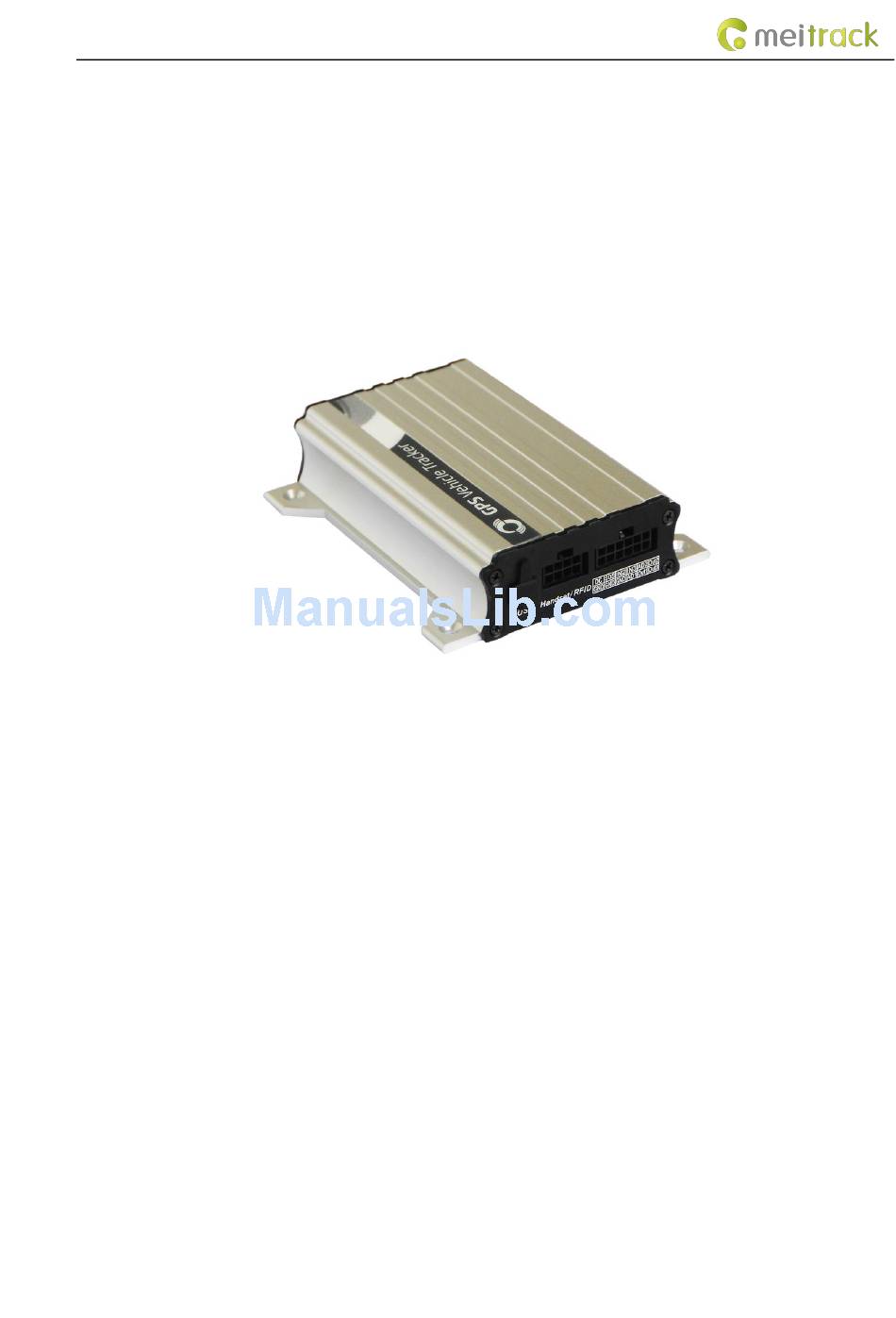

  • Page 1 MEITRACK T1 User Guide MEITRACK T1 User Guide...

  • Page 2: Change History

    Change History File Name MEITRACK T1 User Guide Created By Kyle Lv Project Creation Date 2014-06-10 Update Date 2015-01-09 Subproject User Guide Total Pages Version V2.3 Confidential External Documentation Copyright © 2015 Meitrack Group All rights reserved. - 2 -...

  • Page 3: Table Of Contents

    3.1.3 Other Functions ...............................- 4 - 3.1.4 Optional Accessory Function ...........................- 5 - 3.2 Specifications ..................................- 5 - 4 T1 and Accessories ..................................- 6 - 5 Appearance....................................- 6 - 6 First Use ......................................- 7 - 6.1 Installing the SIM Card ................................- 7 - 6.2 Charging ....................................- 7 -...

  • Page 4: Copyright And Disclaimer

    The user manual may be changed without notice. Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording.

  • Page 5: Optional Accessory Function

    GSM frequency band GSM 850/900/1800/1900 MHz GPS sensitivity -161 dB Positioning accuracy I/O port 3 digital inputs (2 negative inputs and 1 positive input) 2 analog detection inputs 3 outputs Copyright © 2015 Meitrack Group All rights reserved. - 5 -...

  • Page 6: T1 And Accessories

    A21 LCD display (dialing and SMS display) A53 fuel sensor A52 digital temperature sensor + A61 sensor box LED display 5 Appearance GSM indicator GPS indicator Power button GSM antenna GPS antenna connector connector Copyright © 2015 Meitrack Group All rights reserved. - 6 -...

  • Page 7: First Use

    6.2 Charging When you use the T1 for the first time, connect the T1 GND (-Black) and Power (+Red) wires to 12 V or 24 V external power supply for charging. Ensure that the T1 is charged at least three hours. Eight hours are recommended.

  • Page 8: Location Tracking

    No base station signal is received. 6.4 Location Tracking Call the T1 SIM card number. An SMS with a map link will be received. Click the SMS link. The location will be displayed on Google Maps on your mobile phone.

  • Page 9: Setting A Combined Function Phone Number - A71

    =114.057183 Longitude: 114.057183 More SMS commands You can configure the T1 on a mobile phone or on a computer by using Meitrack Manager. For details, see section 6.5"Configured on a Computer." Note: The default password is 0000. You can change the password by using Meitrack Manager and SMS commands. For details, see section 6.5"Configured on a Computer."...

  • Page 10: Setting The Smart Sleep Mode - A73

    Install the USB driver and MEITRACK Manager. Connect the T1 to a PC by using a USB cable. Run MEITRACK Manager, and start the T1. Meitrack Manager will automatically detect the T1 port number and read T1 parameters. Copyright © 2015 Meitrack Group All rights reserved.

  • Page 11: Ms02 Tracking System

    0000,A12,6,0 to the tracker SIM card number.  Configured by Meitrack Manager: Connect the tracker to a PC, and run Meitrack Manager to enter the main interface. Then select GPRS Tracking, and set parameters including Server IP, Port, APN, Turn on TCP, and Time Interval.

  • Page 12: Installing The T1

    MEITRACK T1 User Guide Obtain the tracker IMEI number from the packing or Meitrack Manager, register a device, set the parameters shown in the following figure, and then click Save. Double-click a device in the panel on the right, and check whether data is updated in Status.
  • Page 13 Maximum current for output low voltage (valid): 400 mA Connects to an external relay to remotely cut off the vehicle fuel cable or engine power supply. 11 (Output 2) Yellow Output 2 Copyright © 2015 Meitrack Group All rights reserved. - 13 -...

  • Page 14: Power Cable/Ground Wire (Pin1, Pin2)

    Note: If input 3 is connected to ACC and the engine is started, ON-OFF-ON conversion occurs. If input 3 is connected to Start and the engine is started, OFF-ON-OFF conversion occurs. If the device is installed correctly and the engine is started, OFF-ON conversion occurs. Copyright © 2015 Meitrack Group All rights reserved. - 14 -...

  • Page 15: Output (Pin10/Pin11)

    Temperature Sensor User Guide. Note:  The white plug on the T1 harness consist of the power cable (red), ground wire (black), AD2 cable (blue), and SEN cable (blue).  The T1 can connect to a maximum of two A61 sensor boxes. You can install a maximum of eight A52 temperature sensor ports.

  • Page 16: Installing The Rfid Reader (Rs232 Port)

    Reserved (The T1 sends data to the RFID reader through the RS232 port) Remarks: The T1 RFID reader is not compatible with the MVT600 RFID reader. The MVT600 has a Wiegand port. Note: The RS232 port and the handset/camera cannot be used at the same time.

  • Page 17: Installing Gps And Gsm Antennas

    Note: Do not install the GPS antenna at a place with metal. 8.6 Mounting the T1 Tighten the four screws shown in the following figure. If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2015 Meitrack Group All rights reserved. - 17 -...
