MEITRACK® GPS Personal Tracker
Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved.
File Name:
MEITRACK GT30i User Guide
Project:
GT30i
Sub Project:
User Guide
Revision:
V7.3
User Guide V7.3
Creator:
Creation Date:
Update:
Page:
Confidential:
GT30i
Cavana Cheung
2010-10-10
2012-07-03
- 1 - of 25
External Documentation
- 1 -
Advertisement
Table of Contents
Related Manuals for MeiTrack GT30i
Summary of Contents for MeiTrack GT30i
- Page 1 2010-10-10 Update: 2012-07-03 Sub Project: User Guide Page: - 1 - of 25 Revision: V7.3 Confidential: External Documentation MEITRACK® GPS Personal Tracker User Guide V7.3 GT30i Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. - 1 -...
-
Page 2: Table Of Contents
22. Copyright and Disclaimer ................................- 18 - Annex 1. SMS Command List ................................- 18 - Annex 2. Troubleshooting ................................. - 24 - Contacts ......................................- 25 - Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. - 2 -... -
Page 3: Product Overview

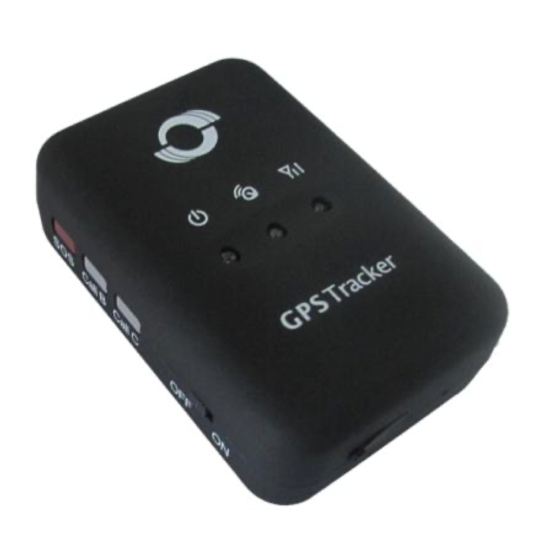

The GT30i is a GPS/GPRS based personal tracking device, which is compact and easy to use. GT30i has inbuilt GPS module to obtain accurate position data and utilizes its GSM capability to send the position data to a specified mobile phone or server base. This allows users to monitor people or pets using the tracker. -
Page 4: For Your Safety
2. For Your Safety Read these simple guidelines. Not following them may be dangerous or illegal. Switch on safely Do not switch on GT30i when wireless phone use is prohibited or when it may cause interference or danger. Switch off in hospitals Follow any restrictions. -
Page 5: Getting Started
Side View Back View 4.3 Functional Parts Your GT30i has four buttons and three LED lights, with three different colors to indicate the status of the unit. Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. - 5 -... - Page 6 Used for charging, firmware update, configuration on PC and exporting stored data. (USB Data Cable or USB-to-Serial Adaptor is required for firmware update, configuration and exporting stored data) SIM Card Insert SIM card here Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. - 6 -...
-
Page 7: First Use
- Check that the SIM Lock code is turned off. - If you require the function of sending an SMS location report to the authorized phone number when it makes a call to the GT30i, please make sure the SIM installed supports displaying caller ID. -
Page 8: Time Zone
Description: Send this command to the tracker and you will receive an SMS with a http link. Click on the link and the location will be shown directly on your mobile phone using Google maps. For example: http://maps.google.com/maps?f=q&hl=en&q=22.540103,114.082329&ie=UTF8&z=16&iwloc=addr&om=1 Note: Only smart phones and PDAs support this function. Example: W000000,100 Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. - 8 -... -
Page 9: Track By Calling
Type as the following picture shows: (Note: you should input the latitude and longitude as: 22 32 40.05N 114 04 57.74E) And then you can find the location of your tracker: Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. - 9 -... -
Page 10: Track By Ms01/Ms02
Description: Set APN details for the tracker. Note: 1. APN username and password are optional. If no APN username and password are required, input APN only; 2. APN defaulted as ‘CMNET’; Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. - 10 -... -
Page 11: Set Ip And Port
XXXXX=00001~65535, time interval for sending GPRS packet and in unit of 10 seconds. Example: W000000,014,00060 In this example, the tracker will send every 600 seconds (10 minutes). Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. - 11 -... -
Page 12: Track By Gpsgate
After you have authorized phone numbers for SOS/Call B/Call C button, you can press any of these buttons to make a call to the preset phone number. Press Call B button to cancel a calling or to end a conversation. Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. - 12 -... -
Page 13: Volume Adjustment
2. Radii: [1, 4294967295] meter(s), suggest to be set above 100 meters; 3. GPRS command is 0x12. Example: W000000,006,1 When tracker moves out of this circle scope, it will send out an SMS alarm. Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. - 13 -... -
Page 14: Geo-Fence Alarm
Description: Send this command to set sensitivity of tremble sensor. Note: XX=[1,255], it will be more sensitive if XX is smaller; Default value is 30. Example: W000000,035,30 14. Listen-in (Voice Monitoring) Command: W******,030,T Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. - 14 -... -
Page 15: Heartbeat
4. The device has 4MB of internal memory space for storing the track log. The Device is able to store up to 180,000 records within the memory. Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. - 15 -... -
Page 16: Auto Log When No Gprs
Description: Get IMEI of the tracker. IMEI is 15 digits. Example: W000000,601 19. Initialization Command: W******,990,099### Description: This sets all settings (except for the password) back to factory default. Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. - 16 -... -
Page 17: Password Initialization
For more details regarding SMS commands, please go to Annex 1 Command List. 21. Parameter Editor The tracker can also be configured by computer using the Parameter Editor. This method is much easier and user friendly. Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. - 17 -... -
Page 18: Copyright And Disclaimer
Note: ****** is user’s password and the default password is 000000. The tracker will only accept commands from a user with the correct password. Commands with wrong password will be ignored. Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. - 18 -... - Page 19 Remarks: When the tracker speeds higher than the pre-set value, it will send an SMS to the authorized phone number for SOS. XX is the preset value of speed and in 2 digits. =00 , to turn off this function; Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. - 19 -...
- Page 20 C=0, turn off the function to automatically hang up an incoming call; C=1, turn on the function to automatically hang up an incoming call after 4 - 5 rings. Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. - 20 -...
- Page 21 X=1, to enable GPRS tracking via TCP; X=2, to enable GPRS tracking via UDP. Set GPRS Interval W******,014,XXXXX W000000,014,00060 Remarks: to set time interval for sending GPRS packets. Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. - 21 -...
- Page 22 XX=01~99, to turn on Power Down after a specified period of being inactive. It is in unit of minutes. In this example, the tracker will enter power down mode after it is inactive for 10 minutes. Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. - 22 -...
- Page 23 W000000,901### Remarks: to reboot the GSM module of the tracker. Reboot GPS W******,902### W000000,902### Remarks: to reboot the GPS module of the tracker. Initialization W******,990,099### W000000,990,099### Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. - 23 -...
-
Page 24: Annex 2. Troubleshooting
Problem: Unit Fails to Connect to Server via GPRS Possible Cause: Resolution: SIM card in GT30i does not support GPRS function Enable SIM card GPRS function Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. - 24 -... -
Page 25: Contacts
GPRS function of GT30i is turned off Turn on GPRS function of GT30i Incorrect IP address or PORT Get the right IP address and PORT and reset to GT30i GSM signal is weak Move the unit to a location with good GSM reception...
