MeiTrack GT30i User Manual

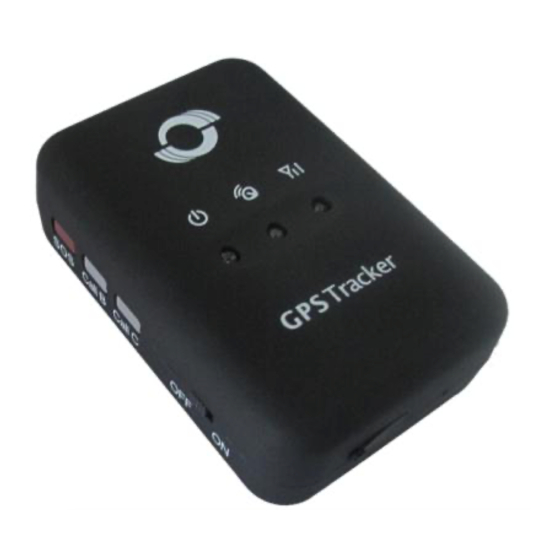

Gps personal tracker
Hide thumbs Also See for GT30i:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
GPS
Personal
Tracker
User Manual
V7.1
GT30i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT30i and is the answer not in the manual?

Questions and answers

Related Manuals for MeiTrack GT30i

Summary of Contents for MeiTrack GT30i

  • Page 1 Personal Tracker User Manual V7.1 GT30i...

  • Page 2: Table Of Contents

    Contents 1. Product Overview ......................... - 3 - 2. For Your Safety ........................- 3 - 3. GT30i Characteristics ......................- 4 - 4. Getting Started ........................- 5 - 4.1 Hardware and Accessories ..................... - 5 - 4.2 View ........................... - 5 - 4.3 Functional Parts ......................

  • Page 3: Product Overview

    The GT30i is a GPS/GPRS based personal tracking device, which is compact and easy to use. GT30i has inbuilt GPS module to obtain accurate position data and utilizes its GSM capability to send the position data to a specified mobile phone or server base. This allows users to monitor people or pets using the tracker.

  • Page 4: Gt30I Characteristics

    Switch off in aircraft Follow any restrictions. Wireless devices can cause interference in aircraft. Switch off when refueling Do not use GT30i when at a refueling point. Do not use near fuels or chemicals. Switch off near blasting Follow any restrictions. Do not use GT30i when blasting is in progress.

  • Page 5: Getting Started

    Side View Back View 4.3 Functional Parts Your GT30i has four buttons and three LED lights, with three different colors to indicate the status of the unit. Red LED - indicating battery status Power is off or charging is complete Flashing (every 0.1 second)

  • Page 6: First Use

    - Check that the SIM Lock code is turned off. - If you require the function of sending an SMS location report to the authorized phone number when it makes a call to the GT30i, please make sure the SIM installed supports displaying caller ID.

  • Page 7: Change Password

    4.4.2 Charge the battery for at least 3 hours in power-off status using the wall or car charger. You can also connect the tracker directly to the computer by USB for charging. Red light is on during charging and off when charging is complete. 4.4.3 Push the Power On/Off button to the ON side and wait for about 20 seconds.

  • Page 8: Track

    For example, W000000,032,-120. (2 hours or 120 minutes behind GMT) Example: W000000,032,480 W000000,032,-120 7. Track 7.1 Track by SMS - Track on Demand - Reply with longitude, latitude, speed and date Command: W******,000 Description: To get the current location of the tracker, send this command as an SMS or make a telephone call directly to the tracker.

  • Page 9: Track By Preset Interval

    7.3 Track by Preset Interval Command: W******,002,XXX Description: Set an interval for the tracker to continuously report its location by SMS. Note: 1. XXX is the interval in minutes. 2. XXX=000 to turn off tracking by time. Example: W000000,002,030 In this example, the tracker will send location data back to your mobile phone every 30 minutes. 7.4 Google Earth and Google Maps Download Google Earth from http://earth.google.com/.

  • Page 10: Track By Gprs (Meiligao Protocol) Between Server And Tracker

    Please refer to MS01/MS02 User Guide for more information. 7.6 Track by GPRS (Meiligao Protocol) between Server and Tracker 7.6.1 Set Tracker’s GPRS ID Command: W******,010,ID Description: Set a digital GPRS ID for the tracker. Note: GPRS ID must not be over 14 digits. Example: W000000,010,00001 7.6.2 Set APN...

  • Page 11: Enable Gprs Tracking

    In this example, the tracker will send every 600 seconds (10 minutes). For more information regarding GPRS tracking please refer to GPRS Communication Protocol 7.7 Track by GpsGate The GT30i supports GpsGate Software. Please contact our company or GpsGate for more information for settings. 8. Authorization...

  • Page 12: Call Function

    If you need to set different numbers for receiving SMS and phone call, you can use W******,003,F,P,T1,T2, In this case T1 is the phone number for receiving SMS and T2 for receiving phone calls. Example: W000000,003,3,1,88888888 W000000,003,3,1,88888888,99999999 9. Call Function You can use the earphone for conversation purpose.

  • Page 13: Geo-Fence Alarm

    authorized phone number for SOS. Note: 1. X is the preset radii to the tracker‟s original place =0, to turn off this function ; =1, 30m =2, 50m =3, 100m =4, 200m =5, 300m =6, 500m =7, 1000m =8, 2000m 2.

  • Page 14: Set Sensitivity Of Tremble Sensor

    Note: 1. X= [1, 4294967295], suggested to be set above 300 meters; 2. X=0, turn off. Example: W000000,303,1000 13. Set Sensitivity of Tremble Sensor Command: W******,035,XX Description: Send this command to set sensitivity of tremble sensor. Note: 1. XX=[1,255], it will be more sensitive if XX is smaller; 2.

  • Page 15: Auto Log When No Gprs

    Description: Set time interval for logging GPS information. Log information is stored within the device memory. When the memory gets full, the newest record will be overwritten on top of the oldest (FIFO - First In, First Out). In this case, only the newest information is stored. Note: 1.

  • Page 16: Get Imei

    XX=01~99, to turn on Power Down after a specified period of being inactive (or stationary). It is in unit of minute. Example: W000000,026,10 The tracker will enter power down mode after it is inactive (or stationary) for 10 minutes. 18. Get IMEI Command: W******,601 Description: Get IMEI of the tracker.

  • Page 17: Copyright And Disclaimer

    Please refer to MEITRACK Parameter Editor for more information. 22. Copyright and Disclaimer © Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. The information contained herein may be changed at any time without prior notification. This manual nor any parts thereof may not be reproduced for any purpose whatsoever without written consent of Meiligao, nor transmitted in any form either electronically or mechanically, including photocopying and recording.
  • Page 18 tracker. After doing so, the device will report its longitude and latitude by SMS with the format as follows:- Latitude = 22 32 36.63N Longitude = 114 04 57.37E, Speed = 2.6854Km/h, 2008-12-24,01:50 Track on Demand W******,100 W000000,100 -Google Link Remarks: Send this command to the tracker and you will receive an SMS with a http link.
  • Page 19 X is the preset radii to the tracker‟s original place =0, to turn off this function =1, 30m =2, 50m =3, 100m =4, 200m =5, 300m =6, 500m =7, 1000m =8, 2000m Geo-fence Alarm W******,302,X W000000,302,22.000000,-114.123456,3000,1,1 Remarks: Turn on Geo-fencing alarm. When the tracker moves in/out the preset scope, it will send an SMS alarm to the authorized phone number for SOS.
  • Page 20 G=0, all LEDs work normally; G=1, all LEDs stop flashing when the tracker is working. H, reserved and defaulted as „0‟. I=0, turn off the function of sending SMS alarm when the extra power of the vehicle tracker is cut; I=1, turn on the function of sending an SMS alarm to the authorized phone number for SOS when the extra power of the vehicle tracker is cut.
  • Page 21 Remarks: to set interval for heartbeat. Data: in unit of minutes data=0, to turn off this function; data=1~65535, set interval for heartbeat. In this example, the tracker will send heartbeat every 10 minutes. Sensitivity Tremble W******,035,XX W000000,035,30 Sensor Remarks: Send this command to set sensitivity of tremble sensor Note: XX=[1,255], it will be more sensitive if XX is smaller.
  • Page 22 X=0, to turn off this function; X=[1, 65535] to set interval in second. In this example of W000000,031,60, the tracker will store location data every 60 seconds. Format Buffer W******,503 W000000,503 Remarks: This command clears the data stored in the buffer. Note: Deleted data can no longer be recovered.

  • Page 23: Annex 2. Troubleshooting

    SIM card in GT30i does not support GPRS Enable SIM card GPRS function function GPRS function of GT30i is turned off Turn on GPRS function of GT30i Incorrect IP address or PORT Get the right IP address and PORT and reset to GT30i - 23 -...

  • Page 24: Contacts

    GSM signal is weak Move the unit to a location with good GSM reception Contacts Please do not hesitate to email us at info@meitrack.com if you have any questions. - 24 -...
