Summary of Contents for MeiTrack GT60
- Page 1 Personal Tracker User Manual V7.1 GT60...
-
Page 2: Table Of Contents
Contents 1.Product Overview ........................- 3 - 2.For Your Safety ........................- 3 - 3.GT60 Characteristics ......................- 4 - 4. Getting Started ........................- 4 - 4.1 Hardware and Accessories ..................... - 4 - 4.2 View ........................... - 5 - 4.3 Functional Parts ...................... -
Page 3: Product Overview

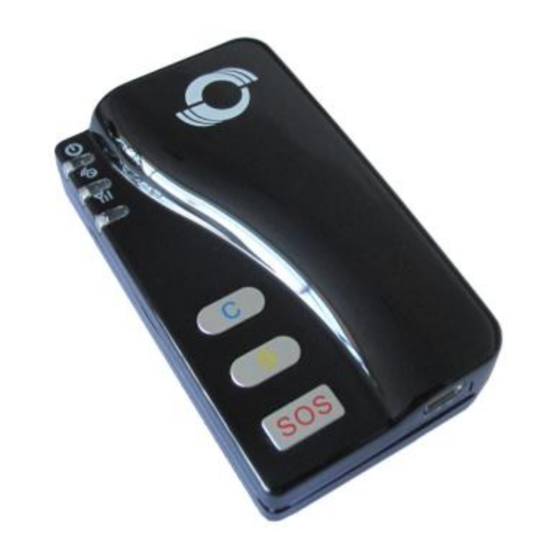

The GT60 is a GPS/GPRS based personal tracking device, which is compact and easy to use. GT60 has inbuilt GPS module to obtain accurate position data. This device utilizes its GSM capability to send the position data to a specified mobile phone or server base. Thus allowing users to monitor people or pets using the tracker. -
Page 4: Gt60 Characteristics
Qualified service Only qualified personnel can repair GT60. Water resistance GT60 is not fully water resistant. Keep it dry. Use a waterproof bag if necessary. 3.GT60 Characteristics Items Specification Charging Voltage DC 4.2-5.5V/400mA (Mini USB port) Internal Battery Rechargeable and removable 950 mAh battery (3.7V) Dimension 78 mm ×... -
Page 5: View
Side View Back View 4.3 Functional Parts Your GT60 has four buttons and three LED lights, with three different colors to indicate the status of the unit. Red LED - indicating battery status Power is off or charging is complete Flashing (every 0.1 second) -
Page 6: First Use
GT60, please make sure the SIM installed supports displaying caller ID. 4.4.2 Put the battery in GT60 and charge the tracker for at least 3 hours in power-off status using the wall or car charger. You can also connect the tracker directly to the computer by USB for charging. -
Page 7: Change Password
Check that the Red LED (Battery) is flashing 1 second on and 2 seconds off. Check that the Green LED (GSM) is flashing 0.1 second on and 2.9 seconds off. Check that the Blue LED (GPS) is flashing 0.1 second on and for 2.9 seconds off. -
Page 8: Track By Calling
Description: To get the current location of the tracker, send this command as an SMS or make a telephone call directly to the tracker. After doing so, the device will report its longitude and latitude by SMS with the format as follows: Latitude = 22 32 36.63N Longitude = 114 04 57.37E, Speed = 2.6854Km/h, 2008-12-24,01:50 Example: W000000,000 - Track on Demand - Reply with a link to Google Maps... -
Page 9: Track By Ms01/Ms02
go to http://maps.google.com in your Internet Explorer. Input the latitude and longitude that you received from the tracker by SMS and click the search button. Google Earth or Google Maps will display the location for you. Example: When you receive: Latitude = 22 32 40.05N Longitude = 114 04 57.74E Type as the following picture shows: (Note: you should input the latitude and longitude as: 22 32 40.05N 114 04 57.74E) And then you can find the location of your tracker:... -
Page 10: Set Apn
Example: W000000,010,00001 7.6.2 Set APN Command: W******,011,APN,Username,Password Description: Set APN details for the tracker Note: 1. APN username and password are optional. If no APN username and password are required, input APN only; 2. APN defaulted as „CMNET‟; 3. APN + username + password should not over 39 characters. Example: W000000,011,CMNET,Meiligao,6688 W000000,011,CMNET... -
Page 11: Track By Gpsgate
W000000,003,3,1,88888888,99999999 9. Call Function With GT60‟s inbuilt loudspeaker and microphone, you can use GT60 to make or receive phone calls. 9.1 Receiving Phone Call Use your phone or mobile phone to call the tracker. When the tracker is receiving a call, the green LED light will be on. -
Page 12: Making Phone Call
9.2 Making Phone Call After you have authorized phone numbers for SOS/Call B/Call C button, you can press any of these buttons to make a call to the preset phone number. Press Call B button to cancel a calling or to end a conversation. 9.3 Volume Adjustment During a conversation, press SOS button to increase the volume or press Call C button to decrease the volume. -
Page 13: Geo-Fence Alarm
When tracker moves out of this circle scope, it will send out an SMS alarm. 11.2 Geo-fence Alarm Command: W******,302,X Description: Turns on Geo-fencing alarm. When the tracker moves in/out the preset scope, it will send an SMS alarm to the authorized phone number for SOS. Note: 1. -
Page 14: Listen-In (Voice Monitoring)
Note: 1. XX=[1,255], it will be more sensitive if XX is smaller; 2. Default value is 30 Example: W000000,035,30 14. Listen-in (Voice Monitoring) Command: W******,030,T Description: Authorize a phone number to make a silent call to the tracker. The tracker answers the call automatically and allows the caller to listen to what is happening around the tracker. -
Page 15: Get Imei
17. Get IMEI Command: W******,601 Description: Get IMEI of the tracker. IMEI is 15 digits Example: W000000,601 18. Initialization Command: W******,990,099### Description: This sets all settings (except for the password) back to factory default. Note: Send SMS “Default?” to the device. Within 120 seconds, send this SMS command to the tracker. ### is the ending character and is required in the text message. -
Page 16: Copyright And Disclaimer
Please refer to Meitrack Parameter Editor for more information. 21. Copyright and Disclaimer © Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. The information contained herein may be changed at any time without prior notification. This manual nor any parts thereof may not be reproduced for any purpose whatsoever without written consent of Meiligao, or transmitted in any form either electronically or mechanically, including photocopying and recording. - Page 17 Latitude = 22 32 36.63N Longitude = 114 04 57.37E, Speed = 2.6854Km/h, 2008-12-24,01:50 Track on Demand W******,100 W000000,100 -Google Link Remarks: Send this command to the tracker and you receive an SMS with an http link. Click on the link and the location can be shown directly on your mobile phone using Google Maps.
- Page 18 =5, 300m =6, 500m =7, 1000m =8, 2000m Geo-fence Alarm W******,302,X W000000,302,22.000000,-114.123456,3000,1,1 Remarks: Turn on Geo-fencing alarm. When the tracker moves in/out the preset scope, it will send an SMS alarm to the authorized phone number for SOS. Note: 1. X is the parameters which includes: latitude, longitude, radii, in, out; 2.
- Page 19 I=0, turn off the function of sending SMS alarm when the extra power of the vehicle tracker is cut; I=1, turn on the function of sending an SMS alarm to the authorized phone number for SOS when the extra power of the vehicle tracker is cut.
- Page 20 data=0, to turn off this function; data=1~65535, set interval for heartbeat. In this example, the tracker will send heartbeat every 10 minutes. Sensitivity Tremble W******,035,XX W000000,035,30 Sensor Remarks: Send this command to set sensitivity of tremble sensor Note: XX=[1,255], it will be more sensitive if XX is smaller. Default value is 30.
-
Page 21: Annex 2. Troubleshooting
Press and hold the button for 3-5 seconds Battery needs charging Recharge battery for 3 hours Problem: Unit will not reply with SMS Possible Cause: Resolution: Green LED is flashing (1 second on and 2 Make sure GT60 connected to GSM network seconds off) - 21 -... -
Page 22: Contacts
GPRS function of GT60 is turned off Turn on GPRS function of GT60 Incorrect IP address or PORT Get the right IP address and PORT and reset to GT60 GSM signal is weak Move the unit to a location with good GSM reception...
