User Manual

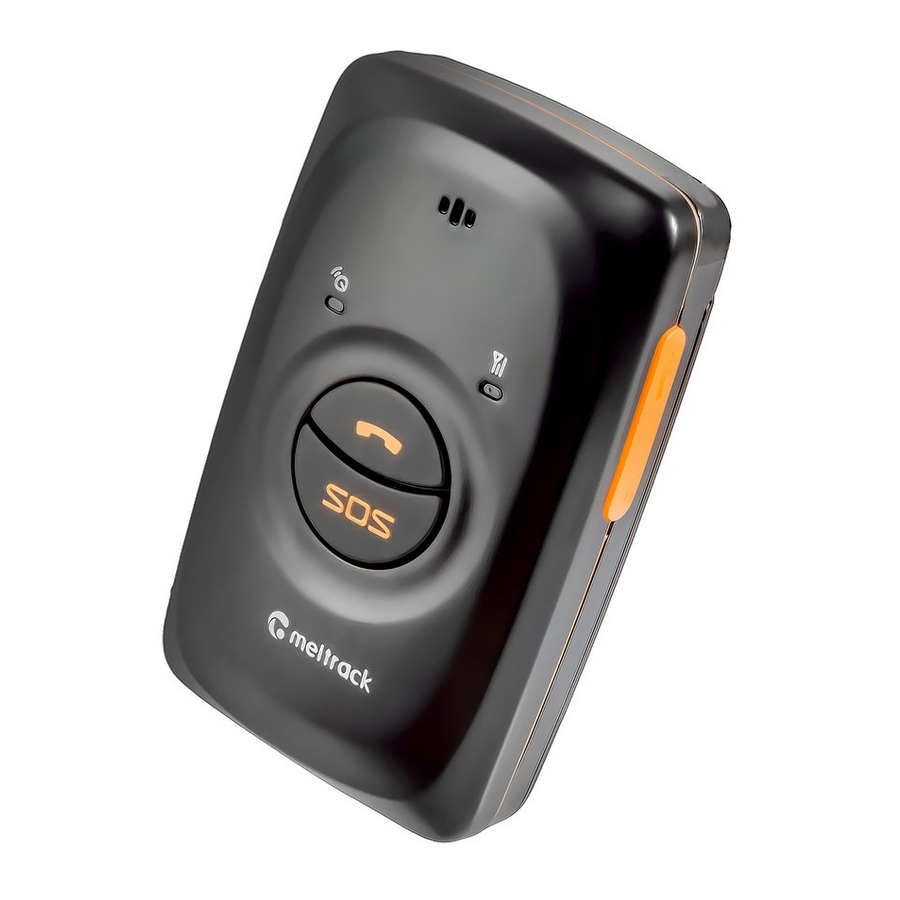

MEITRACK® Personal GPS Tracker
Copyright © 2014 Meitrack Group All rights reserved.
File Name
MEITRACK MT90 User Guide
Project
MT90
Sub Project
User Guide
Revision
V2.0
User Guide
MT90
Creator
Cavana Cheung
Creation Date
Update Date
Page
Confidential
External Documentation
2011-05-16
2014-02-27
1 of 17
-1-
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MeiTrack MT90
Summary of Contents for MeiTrack MT90
-
Page 1: User Guide
MEITRACK MT90 User Guide Creator Cavana Cheung Project MT90 Creation Date 2011-05-16 Update Date 2014-02-27 Sub Project User Guide Page 1 of 17 Revision V2.0 Confidential External Documentation MEITRACK® Personal GPS Tracker User Guide MT90 Copyright © 2014 Meitrack Group All rights reserved. -
Page 2: Table Of Contents
More Settings ............................ 12 Configuration by Computer ..........................12 Tracking ............................. 13 8.2 GeoFence ..............................15 8.3 Event Authorization ............................ 15 Log on GPS Platform ............................16 Safety and Usage Information ......................... 16 Copyright © 2014 Meitrack Group All rights reserved. -
Page 3: Copyright And Disclaimer
Meiligao (MEITRACK), or transmitted in any form, either electronically or mechanically, including photocopying and recording. In no event shall Meiligao (MEITRACK) be liable for direct, indirect, special, incidental, or consequential damages (including but not limited to economic loss, personal injury, and loss of asset and property) arising out of the use or inability or illegality to use the product or documentation. -
Page 4: Specifications
Positioning Accuracy 10 meters 4. MT90 and Accessories MT90 device Battery USB data cable Travel adapter (charger) Mini screwdriver Lanyard User guide and installation software CD Copyright © 2014 Meitrack Group All rights reserved. -
Page 5: About Mt90
Button Long press for 2 seconds to turn off MT90. Press to wake MT90 up from sleep mode, power LED will slowly flash for 10 seconds. Mini USB Mini USB is used for charging, connecting to computer for setting up parameters, updating firmware and so on. -
Page 6: Led Indicators
Install the battery, SIM card and Micro SD card by removing the battery cover. 5.2 LED Indicators Press and hold down the Power switch for 3-5 seconds, and then the MT90 will automatically start. The blue and green LEDs blink on for one second and off for one second, repeatedly. -
Page 7: First Use
External Documentation 6. First Use Remove the Battery Cover With the device turned off, place your MT90 with the front facing down. Use the mini screwdriver to remove the two screws to release the back cover. Lift up the back cover from the notch at the bottom of the device. -
Page 8: Quick Operation Instruction
Operation Tips: Prior to normal usage, configuration has to be made either by SMS command or by software in order to obtain the local time information and coordinate, so that you can enjoy the Meitrack products. Copyright © 2014 Meitrack Group All rights reserved. -
Page 9: Real-Time Location Tracking
External Documentation 7.1 Real-time Location Tracking This section is about how to inquire the current position of the portable MT90, ensuring that GPS is working normally. Call the SIM card number embedded in MT90, hang up after the dial sound 2-3 times, as follows: ... -
Page 10: Listening-In (Voice Monitoring) - A72
The MT90 automatically replies to the SMS: IMEI,A72,OK Successfully set the monitor number. When the preset monitor number calls the MT90, the device will answer the call automatically and enter into the listening state. The device will not emit any sound. Note: Number: A maximum of two monitor numbers can be set and each number contains 16 digits at most. -
Page 11: Time Zone - B35
After that, it will repeat above processes. Note: MT90 can enter sleep mode under movement, and movement cannot wake MT90 from sleep mode. In any condition, the device will directly quit the sleep mode and back to normal working mode by SMS or GPRS command to turn off the sleep mode. -
Page 12: Rapid Start Of The Gprs Function - F12
To change the server location, refer to the Meitrack Manager settings in the next chapter. 7.7 More Settings You can configure MT90 by mobile phone or by using the Meitrack Manager to Setting Multiple Software. For more details, please refer to “Configuration by Computer”. -
Page 13: Tracking
MT90 device. Run “Meitrack Manager.exe”, and connect the device to a computer using a USB data cable after the startup of the device. The software will detect Comm port number and read all MT90’s parameters automatically: 8.1 Tracking... - Page 14 Max time interval = 65535 * 10 sec. GPRS Report Times = 0, no limit, unlimited times for report. = [1,65535], set report times, MT90 will stop reporting when reaching the preset times. Note: GPRS upload interval is default as 60 seconds. GPRS Time Zone Default time of the tracker is GMT0, you can use this to correct the trackers time ...
-
Page 15: Geofence
8.3 Event Authorization Choose the fourth tab: Authorize. The lower half in the tab page is settings on GPRS events and buzzer alerting. GPRS events and buzzer alerting can be set separately. Copyright © 2014 Meitrack Group All rights reserved. -15-... -
Page 16: Log On Gps Platform
Revision V2.0 Confidential External Documentation For more details about GPRS settings, please refer to MEITRACK SMS PROTOCOL and MEITRACK GPRS COMMUNICATION PROTOCOL. 9. Log on GPS Platform Please register and log onto our free GPS platform by: http://www.meigps.com User name: IMEI No. - Page 17 Confidential External Documentation Handle and Dispose of Batteries and Chargers with Care Use only Meitrack-approved batteries and chargers specially designed for your device. Incompatible batteries and chargers may cause serious injuries or damages to your device. Never place batteries or devices on fire or in heating devices, such as microwave ovens, stoves, or ...
