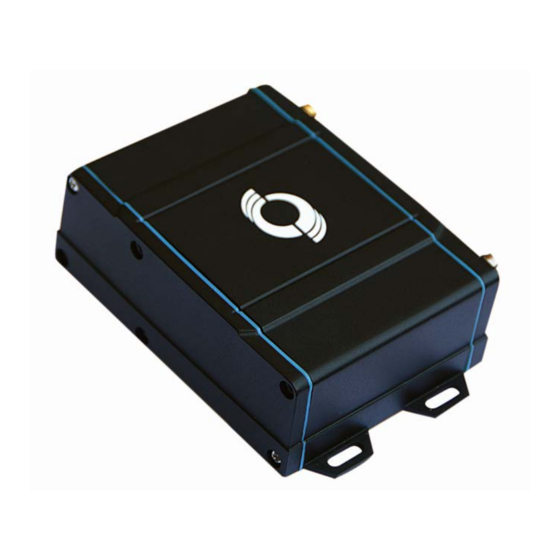

MeiTrack MVT800 User Manual

Gps vehicle tracker
Hide thumbs Also See for MVT800:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
MEITRACK MVT800 User Guide
MEITRACK MVT800 User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVT800 and is the answer not in the manual?

Questions and answers

Related Manuals for MeiTrack MVT800

Summary of Contents for MeiTrack MVT800

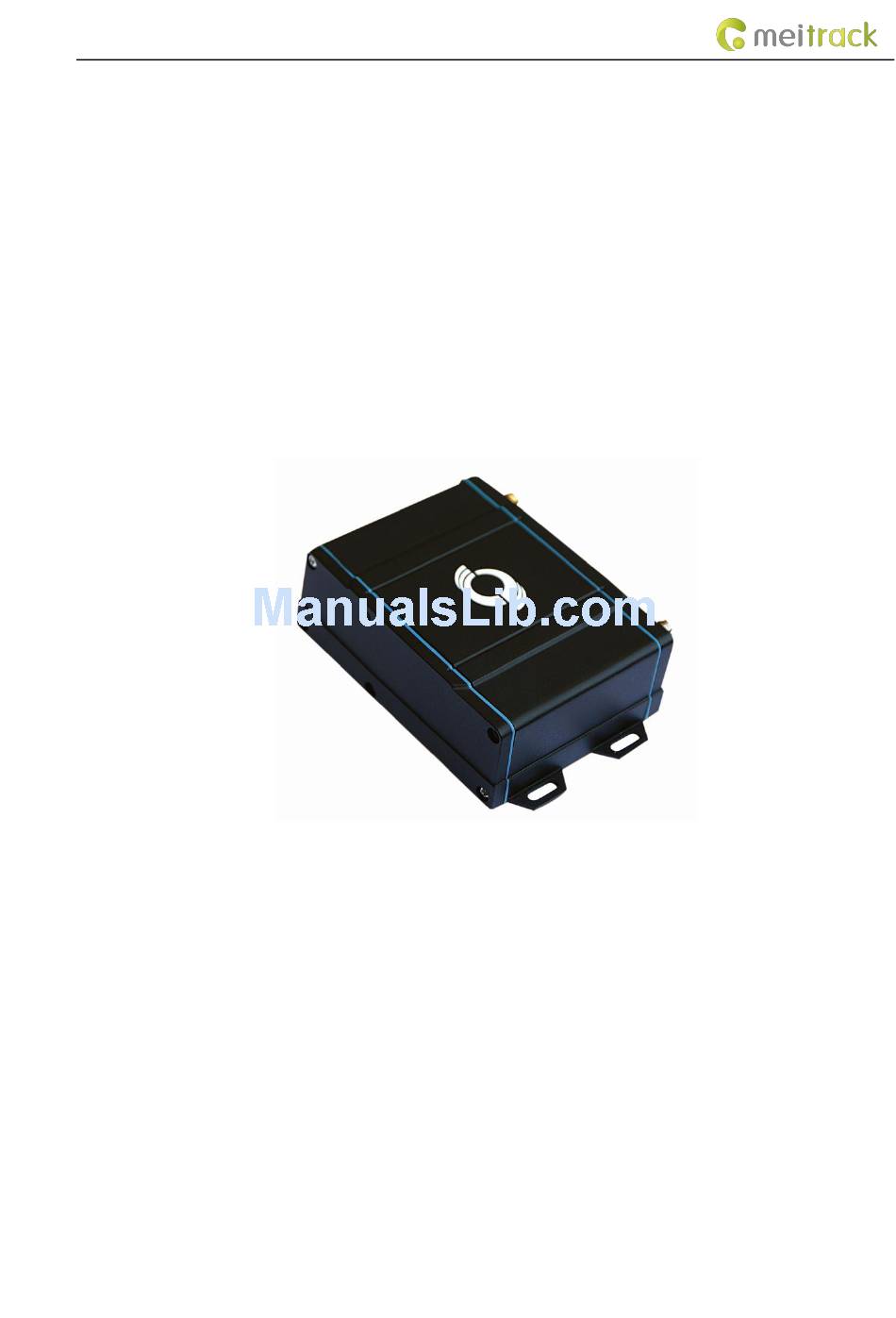

  • Page 1 MEITRACK MVT800 User Guide MEITRACK MVT800 User Guide...

  • Page 2: Change History

    Change History File Name MEITRACK MVT800 User Guide Created By Renny Lee Project MVT800 Creation Date 2013-01-04 Update Date 2015-01-09 Subproject User Guide Total Pages Version V2.0 Confidential External Documentation - 2 - Copyright © 2015 Meitrack Group All rights reserved.

  • Page 3: Table Of Contents

    8.2.7 Remote Fuel and Power Cut-off ..........................- 19 - 8.2.8 (Optional) Buzzer ..............................- 20 - 8.2.9 (Optional) Temperature and Fuel Detection Ports – Meitrack Protocol ..............- 20 - 8.2.10 (Optional) Loudspeaker and Microphone Ports ....................- 20 - 8.3 Mounting the MVT800 ..............................- 20 - - 3 - Copyright ©...

  • Page 4: Copyright And Disclaimer

    2 Product Overview The MVT800 is a brand new GPS tracker supporting both Meitrack and Meiligao protocols. It supports anti-theft of private cars and official cars. 3 Product Function and Specifications 3.1 Product Function...

  • Page 5: Optional Accessory Function

    1 SOS button (for sending SMSs or dialing) 1 power button Microphone/Loudspeaker (optional) External Memory 8 MB byte Sensor Vibration sensor GSM frequency band GSM 850/900/1800/1900 MHz GPS sensitivity -161 dB Positioning accuracy - 5 - Copyright © 2015 Meitrack Group All rights reserved.

  • Page 6: Mvt800 And Accessories

    MVT800 with a built-in battery GPS antenna GSM antenna I/O cable Power extension cord SOS button USB cable Optional accessories: Wireless remote control Buzzer Microphone Loudspeaker Fuel sensor Temperature sensor RF antenna - 6 - Copyright © 2015 Meitrack Group All rights reserved.

  • Page 7: Appearance

     Ensure that the phone card PIN lock has been closed.  Ensure that the SIM card in the MVT800 has subscribed the caller ID service if you want to use your authorized phone number to dial the MVT800. ...

  • Page 8: Indicator

    6.2 Indicator GSM indicator (green) GPS indicator (blue) To start the MVT800, press and hold down the power button for 3s to 5s, or connect the MVT800 to external power supply. GPS Indicator (Blue) Steady on One button is pressed or one input is activated.

  • Page 9: Selecting A Protocol

    For details about Meitrack Manager, see the MEITRACK Manager User Guide. 6.4 Selecting a Protocol The MVT800 is compatible with both Meitrack and Meiligao Protocols. The Meitrack protocol is used by default. You can select a protocol by using Meitrack Manager.

  • Page 10: Meitrack Protocol

    Call the MVT800 SIM card number. An SMS with a map link will be received. Click the SMS link. The location will be displayed on Google Maps on your mobile phone. Note: Ensure that the MVT800 SIM card number has subscribed the caller ID service. Otherwise, you cannot call the MVT800 SIM card number.

  • Page 11: Setting A Function Phone Number

    If your mobile phone does not support HTTP, enter the latitude and longitude on Google Maps to query a location. More SMS commands You can configure the MVT800 on a mobile phone or on a computer by using Meitrack Manager. For details, see section 6.3 "Configured on a Computer."...

  • Page 12: Arming/Disarming

    Towing alarm √ √ alarm is generated. The tracker will dial three authorized phone numbers in sequence and send SMSs. For details about SMS commands, see the MEITRACK SMS Protocol. - 12 - Copyright © 2015 Meitrack Group All rights reserved.

  • Page 13: Meiligao Protocol

    Description: The authorized phone number is used to receive calls and SMS reports about SOS alarms, input 2/input 3 alarms and positioning information, and unauthorized door opening/vehicle starting. Note: For details about SMS commands, see the Meiligao SMS Protocol. - 13 - Copyright © 2015 Meitrack Group All rights reserved.

  • Page 14: Arming/Disarming

    When only one remote control needs code matching and no operations will be performed later, the system automatically exits the code matching mode 20s after the code is matched successfully. - 14 - Copyright © 2015 Meitrack Group All rights reserved.

  • Page 15: Ms02 Tracking System

    0000,A12,6,0 to the tracker SIM card number.  Configured by Meitrack Manager: Connect the tracker to a PC, and run Meitrack Manager to enter the main interface. Then select GPRS Tracking, and set parameters including Server IP, Port, APN, Turn on TCP, and Time Interval.
  • Page 16 MEITRACK MVT800 User Guide Obtain the tracker IMEI number from the packing or Meitrack Manager, register a device, set the parameters shown in the following figure, and then click Save. Double-click a device in the panel on the right, and check whether data is updated in Status.

  • Page 17: Installing The Mvt800

    DC 11 V to 36 V Hardware undervoltage Overvoltage protection Buzzer output Output: brown PWM output: connects to the buzzer Output: white The positive power cable is brown, and the ground wire is white. - 17 - Copyright © 2015 Meitrack Group All rights reserved.

  • Page 18: Port Pictures

    Loudspeaker and microphone ports Power port USB232 port 8.2.3 Power Cable/Ground Wire Connect the power cable (red) and ground wire (black) to the positive and negative electrodes of the vehicle battery respectively. - 18 - Copyright © 2015 Meitrack Group All rights reserved.

  • Page 19: Level Detection Port

    MEITRACK MVT800 User Guide 8.2.4 Level Detection Port 8.2.5 ACC and Door Detection 8.2.6 Signal Detection 8.2.7 Remote Fuel and Power Cut-off - 19 - Copyright © 2015 Meitrack Group All rights reserved.

  • Page 20: Optional) Buzzer

    MEITRACK MVT800 User Guide 8.2.8 (Optional) Buzzer Buzzer output 8.2.9 (Optional) Temperature and Fuel Detection Ports – Meitrack Protocol 8.2.10 (Optional) Loudspeaker and Microphone Ports 8.3 Mounting the MVT800 Tighten the four screws shown in the following figure. - 20 -...
  • Page 21 MEITRACK MVT800 User Guide If you have any questions, do not hesitate to email us at info@meitrack.com. - 21 - Copyright © 2015 Meitrack Group All rights reserved.
