Summary of Contents for MeiTrack VT310

  • Page 1 Vehicle Tracker User Manual V7.1 VT310...
  • Page 2: Table Of Contents

    Contents 1. Product Overview ......................... - 3 - 2. For Your Safety ........................- 3 - 3. VT310 Characteristics ......................- 4 - 4. Getting Started ........................- 5 - 4.1 Hardware and Accessories ..................... - 5 - 4.2 View ........................... - 5 - 4.3 Functional Parts ......................
  • Page 3: Product Overview

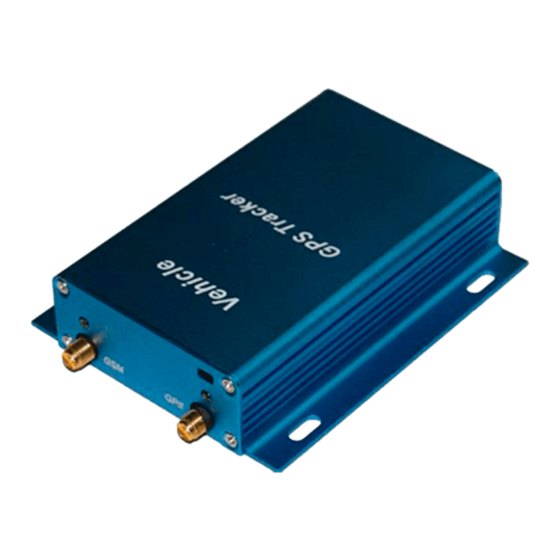

    VT310 is a GPS/GPRS based tracking device, specially developed and designed for vehicle real-time tracking and fleet management. VT310 has an inbuilt GPS module to obtain accurate position data. This device utilizes its GSM capability to send position data to a specified mobile phone or server base for tracking and fleet management.
  • Page 4: Vt310 Characteristics

    Qualified Service Only qualified personnel can install or repair VT310. Water Resistance VT310 is not water resistant. Keep it dry. Install this device inside the vehicle or use a waterproof bag for protection if necessary. Confidential Phone Number For safety reason, do not tell other people the mobile phone number of your VT310 without taking precautions of security settings.
  • Page 5: Getting Started

    4. Getting Started This section will describe how to set up your VT310. 4.1 Hardware and Accessories VT310 is supplied in a box which includes: VT310 with Battery GPS Antenna GSM Antenna Wires with SOS Button USB Cable 4.2 View...
  • Page 6 Flashing (1 second on and 2 seconds off) VT310 is not connected to the GSM network Power On/Off Button Press and hold for 3~5 seconds to turn on/off VT310 SOS Button SOS button is connected with the wires. Press it to send SOS alarm to the preauthorized phone number.
  • Page 7: Connecting And Installation

    0-6V 4.4 Connecting and Installation Read this manual before using your VT310. Check to make sure all parts are included in the packaging box. 4.4.1 Ensure that your VT310 has a working SIM card installed. - Check that the SIM card has not run out of credit (test the SIM card in a phone to...
  • Page 8: Time Zone

    2. ###### is the new password. Password should be 6 digits. Example: W000000,001,123456 W123456,001,999999 6. Time Zone Command: W******,032,T Description: Correct time to your local time Note: 1. Default time of the tracker is GMT 2. This correction is applied to location reports by SMS and SMS alarms. T=0, to turn off this function;...
  • Page 9: Track By Calling

    Example: W000000,100 7.2 Track by Calling Make a missed call to the tracker and it will report its longitude and latitude by SMS with the following format: Latitude = 22 32 36.63N Longitude = 114 04 57.37E, Speed = 2.6854Km/h, 2008-12-24, 01:50 7.3 Track by Preset Interval Command: W******,002,XXX Description: Set an interval for the tracker to continuously report its location by SMS...
  • Page 10: Track By Ms01/Ms02

    You can also use local map software on PDA or car navigation device to input the coordinates. 7.5 Track by MS01/MS02 You can also see a physical location on a map with our GPS Tracking Software MS01 or MS02. This software is available for purchase and can be used for tracking after proper configuration. Please refer to MS01/MS02 User Guide for more information.
  • Page 11: Set Apn

    7.6.2 Set APN Command: W******,011,APN,Username,Password Description: Set APN details for the tracker Note: 1. APN username and password are optional. If no APN username and password are required, just input APN only; 2. APN defaulted as „CMNET‟; 3. APN + username + password should not over 39 characters. Example: W000000,011,CMNET,Meiligao,6688 W000000,011,CMNET...
  • Page 12: Track By Gpsgate

    F=1, only sends SMS to the authorized phone number; F=2, only calls the authorized phone number; F=3, both SMS and calling. (Note: VT310 doesn‟t support two-way conversation. Calling only gives ring and reminder to the authorized phone.) P=1, set an authorized number for SOS button (Input 1);...
  • Page 13: Detecting Lock Status Of Car"S Door Or Trunk (Car Boot)

    Then a message with longitude and latitude will follow. (Note: An SOS button is already connected to VT310 in standard packing) 9.2 Detecting Lock Status of Car’s Door or Trunk (Car Boot). Power supply Lock Controller...
  • Page 14: Speeding Alarm

    Voltage Formula: Input Voltage=(AD*6)/1024 0x00AA=>170(decimal)=>(170*6)/1024=0.99609375V(voltage) 0x0267=>615(decimal)=>(615*6)/1024=3.603515625V(voltage) Application Example - Fuel Level Sensor Fuel level sensors supplied by us are resistance-type sensors with output resistance: 0-200Ω(ohm). For the circuit shown on the right picture, if VCC is 12V, R should be 200Ω(ohm) and if VCC is 24V then R should be 600Ω(ohm) to make the input range to AD1 or AD2 is 0-6V.
  • Page 15: Movement Alarm

    11.1 Movement Alarm Command: W******,006,X Description: When the tracker moves out of a preset circle scope, it will send an SMS alarm to the authorized phone number for SOS. Note: 1. X is the preset radii to the tracker‟s original place. =0, to turn off this function.
  • Page 16: Track By Distance

    1. XX=[1,255], it will be more sensitive if XX is smaller. 2. Default value is 30. Example: W000000,035,30 15. Output Control 15.1 Output Control (Immediate) Command: W******,020,P,F Description: Send this command to control the Output of VT310 Note: P=1, Output1; P=2, Output2; P=3, Output3; P=4, Output4;...
  • Page 17: Output Control (Conditional)

    15.2 Output Control (Conditional) Command: W******,120,ABCDE or W******,220,ABCDE Description: Send this command to control the Output of VT310. This command is only workable when the speed is below 10km/h(command 120) or 20km/h(command 220) and GPS is available. Note: ABCDE represents Out1, Out2, Out3, Out4, and Out5 respectively.
  • Page 18: Heading Change Report

    Alarm Output 2 or Output 3 or Output 4 or Output5 16. Heading Change Report Command: W******,036,degree Description: When the heading direction of the tracker changes over the preset degree, a message with location data will be sent back to the server by GPRS. This enhances the accuracy when the tracker makes a direction change.
  • Page 19: Auto Log When No Gprs

    Date and time Longitude Latitude Speed Direction 3. All data, stored within the memory, may be exported to the PC using the USB connector. To do this, the “GPSLog” program has to be used (please refer to GPSLog User Guide and GPRS Communication Protocol for more information).
  • Page 20: Get Imei

    20. Get IMEI Command: W******,601 Description: Get IMEI of the tracker. IMEI is 15 digits Example: W000000,601 21. Initialization Command: W******,990,099### Description: This sets all settings (except for the password) back to factory default. Note: Send SMS “Default?” to the device. Within 120 seconds, send this SMS command to the tracker. ### is the ending character and is required in the text message.
  • Page 21: Copyright And Disclaimer

    Please refer to GPS Tracker Parameter Editor for more information. 24. Copyright and Disclaimer © Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. The information contained herein may be changed at any time without prior notification. This manual nor any parts thereof may not be reproduced for any purpose whatsoever without written consent of Meiligao, or transmitted in any form either electronically or mechanically, including photocopying and recording.
  • Page 22 If you need to set different numbers for receiving SMS and phone call, you can use W******,003,F,P,T1,T2, In this case T1 is the phone number for receiving SMS and T2 for receiving phone calls. Note: VT310 doesn‟t support two-way conversation. Calling only gives ring and reminder to the authorized phone. Speeding Alarm...
  • Page 23 SOS. X is the preset radii to the tracker‟s original place. =0, to turn off this function =1, 30m =2, 50m =3, 100m =4, 200m =5, 300m =6, 500m =7, 1000m =8, 2000m Geo-fence Alarm W******,302,X W000000,302,22.000000,-114.123456,3000,1,1 Remarks: Turn on Geo-fencing alarm. When the tracker moves in/out the preset scope, it will send an SMS alarm to the authorized phone number for SOS.
  • Page 24 SOS. G=0, all LEDs work normally; G=1, all LEDs stop flashing when the tracker is working. H, reserved and defaulted as „0‟. I=0, turn off the function of sending SMS alarm when the extra power of the vehicle tracker is cut; I=1, turn on the function of sending an SMS alarm to the authorized phone number for SOS when the extra power of the vehicle tracker is cut.
  • Page 25 Set Heartbeat Interval W******,015,data W000000,015,10 Remarks: to set interval for heartbeat. Data: in unit of minute data=0, to turn off this function; data=1~65535, set interval for heartbeat. In this example, the tracker will send heartbeat every 10 minutes. Sensitivity Tremble W******,035,XX W000000,035,30 Sensor...
  • Page 26 times. After that, GPS module will periodically work and close. Power Down W******,026,XX W000000,026,10 Remarks: power down mode when the tracker is inactive (stationary) for a period of time. In Power Down mode, GPS stops working and GSM enters sleep and stop sending out message until it is activated by message, incoming calls, movement or input changes.
  • Page 27: Annex 2. Troubleshooting

    Problem: Unit will not reply with SMS Possible Cause: Resolution: Green LED is flashing (1 second on and 2 Make sure VT310 is connected to GSM network seconds off) GSM Network is slow Some GSM networks slow down during peak time or when they have...
  • Page 28 Wrong password in your SMS or wrong SMS Write correct password or SMS format format The SIM in VT310 has run out of credit Replace or top up the SIM card No SIM card Insert a working SIM card. Check in phone that the SIM can send SMS...
  • Page 29: Contacts

    GPRS function of VT310 is turned off Turn on GPRS function of VT310 Incorrect IP address or PORT Get the right IP address and PORT and reset to VT310 GSM signal is weak Move the unit to a location with good GSM reception...
