Caller Id Options - Multitech MultiModem II MT5600BA-V92 User Manual

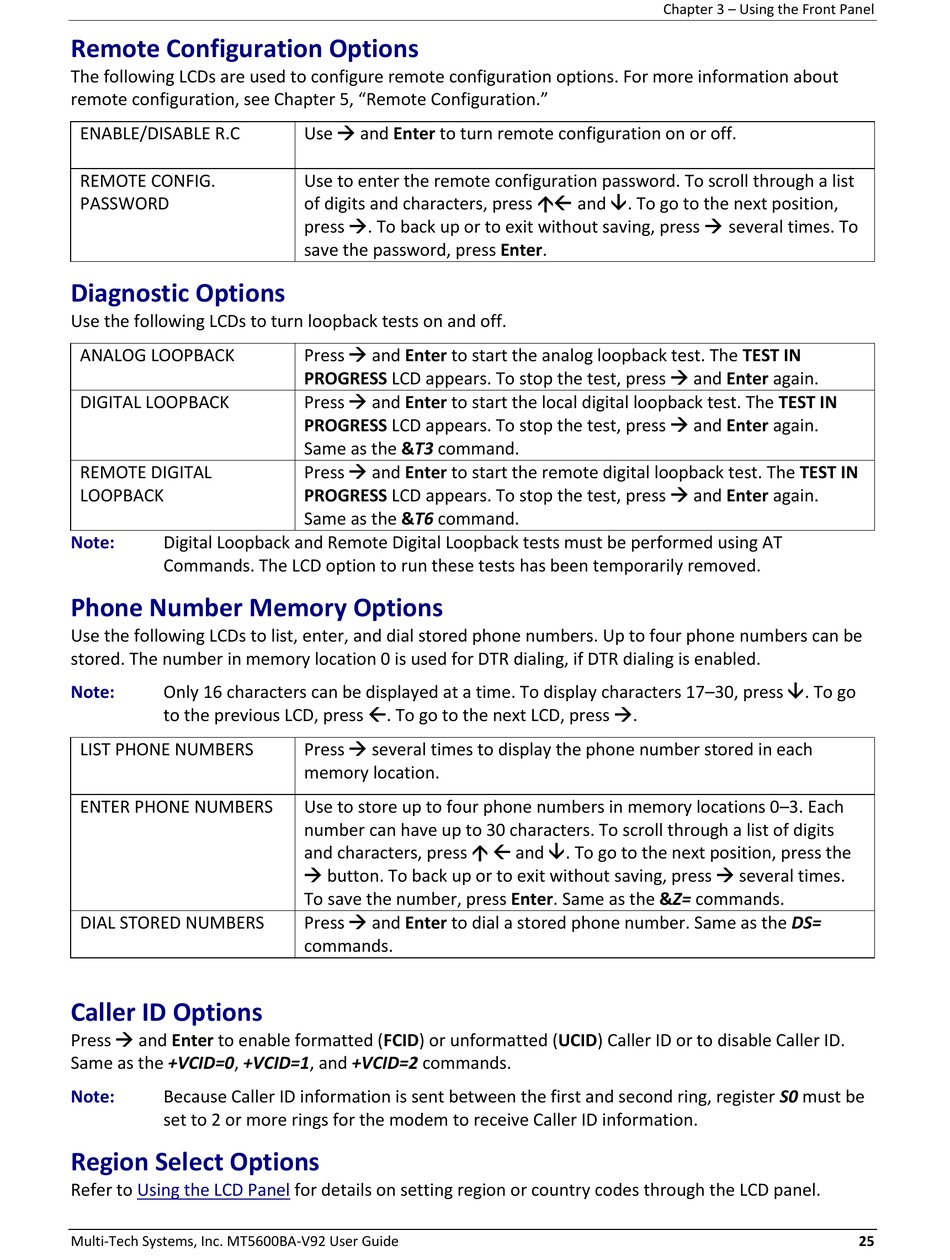

Remote Configuration Options
The following LCDs are used to configure remote configuration options. For more information about
remote configuration, see Chapter 5, "Remote Configuration."
ENABLE/DISABLE R.C
REMOTE CONFIG.
PASSWORD
Diagnostic Options
Use the following LCDs to turn loopback tests on and off.
ANALOG LOOPBACK
DIGITAL LOOPBACK
REMOTE DIGITAL
LOOPBACK
Note: Digital Loopback and Remote Digital Loopback tests must be performed using AT
Commands. The LCD option to run these tests has been temporarily removed.
Phone Number Memory Options
Use the following LCDs to list, enter, and dial stored phone numbers. Up to four phone numbers can be
stored. The number in memory location 0 is used for DTR dialing, if DTR dialing is enabled.
Only 16 characters can be displayed at a time. To display characters 17–30, press . To go
Note:
to the previous LCD, press . To go to the next LCD, press .
LIST PHONE NUMBERS
ENTER PHONE NUMBERS
DIAL STORED NUMBERS

Caller ID Options

Press  and Enter to enable formatted (FCID) or unformatted (UCID) Caller ID or to disable Caller ID.
Same as the +VCID=0, +VCID=1, and +VCID=2 commands.
Note: Because Caller ID information is sent between the first and second ring, register S0 must be
set to 2 or more rings for the modem to receive Caller ID information.
Region Select Options
Refer to Using the LCD Panel
Multi-Tech Systems, Inc. MT5600BA-V92 User Guide
Use  and Enter to turn remote configuration on or off.
Use to enter the remote configuration password. To scroll through a list
of digits and characters, press   and . To go to the next position,
press . To back up or to exit without saving, press  several times. To
save the password, press Enter.
Press  and Enter to start the analog loopback test. The TEST IN
PROGRESS LCD appears. To stop the test, press  and Enter again.
Press  and Enter to start the local digital loopback test. The TEST IN
PROGRESS LCD appears. To stop the test, press  and Enter again.
Same as the &T3 command.
Press  and Enter to start the remote digital loopback test. The TEST IN
PROGRESS LCD appears. To stop the test, press  and Enter again.
Same as the &T6 command.
Press  several times to display the phone number stored in each
memory location.
Use to store up to four phone numbers in memory locations 0–3. Each
number can have up to 30 characters. To scroll through a list of digits
and characters, press   and . To go to the next position, press the
 button. To back up or to exit without saving, press  several times.
To save the number, press Enter. Same as the &Z= commands.
Press  and Enter to dial a stored phone number. Same as the DS=
commands.
for details on setting region or country codes through the LCD panel.
Chapter 3 – Using the Front Panel
25
