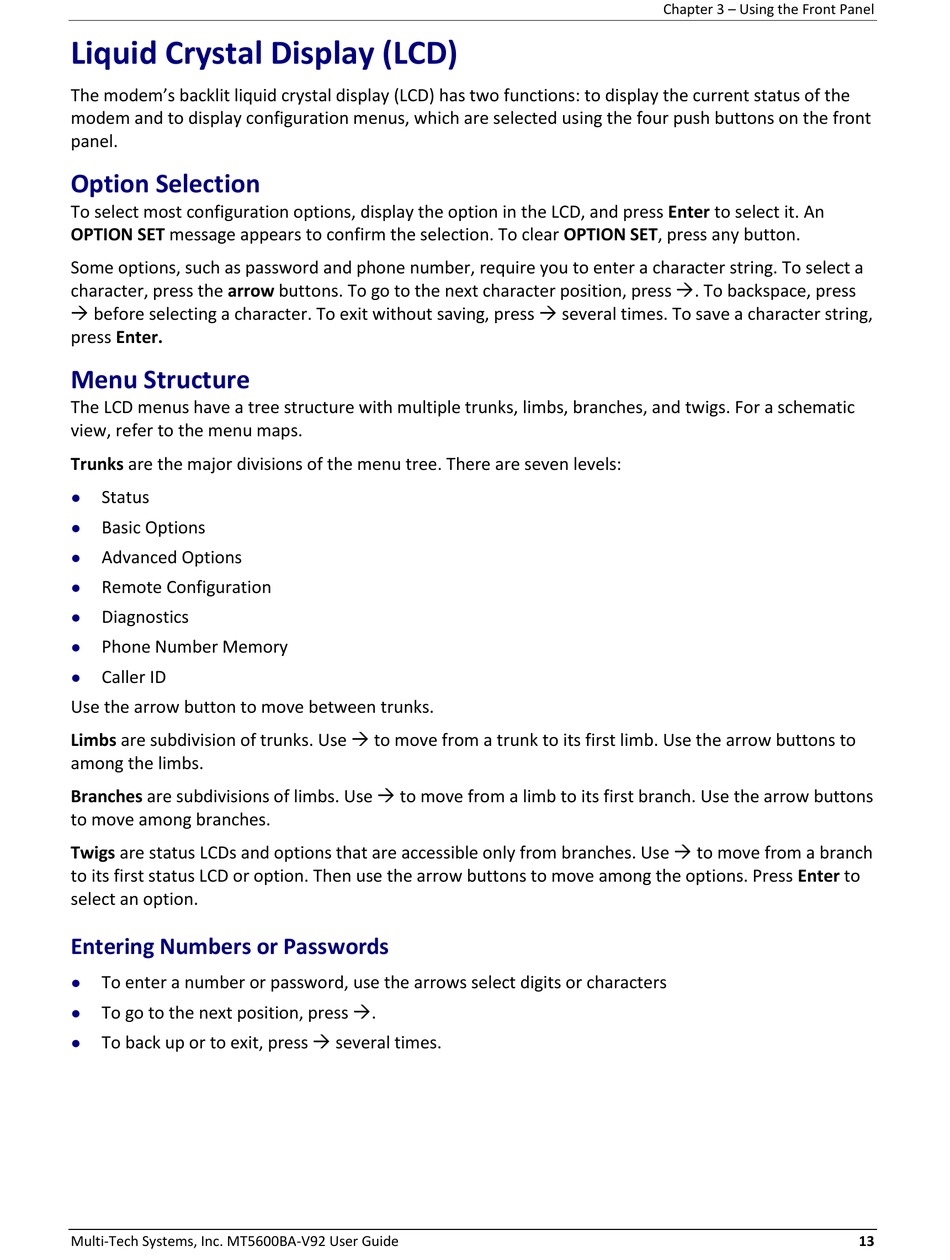

Liquid Crystal Display (LCD)

The modem's backlit liquid crystal display (LCD) has two functions: to display the current status of the
modem and to display configuration menus, which are selected using the four push buttons on the front
panel.
Option Selection
To select most configuration options, display the option in the LCD, and press Enter to select it. An
OPTION SET message appears to confirm the selection. To clear OPTION SET, press any button.
Some options, such as password and phone number, require you to enter a character string. To select a
character, press the arrow buttons. To go to the next character position, press . To backspace, press
 before selecting a character. To exit without saving, press  several times. To save a character string,
press Enter.
Menu Structure
The LCD menus have a tree structure with multiple trunks, limbs, branches, and twigs. For a schematic
view, refer to the menu maps.
Trunks are the major divisions of the menu tree. There are seven levels:
●
Status
●
Basic Options
●
Advanced Options
●
Remote Configuration
●
Diagnostics
●
Phone Number Memory
●
Caller ID
Use the arrow button to move between trunks.
Limbs are subdivision of trunks. Use  to move from a trunk to its first limb. Use the arrow buttons to
among the limbs.
Branches are subdivisions of limbs. Use  to move from a limb to its first branch. Use the arrow buttons
to move among branches.
Twigs are status LCDs and options that are accessible only from branches. Use  to move from a branch
to its first status LCD or option. Then use the arrow buttons to move among the options. Press Enter to
select an option.
Entering Numbers or Passwords
●
To enter a number or password, use the arrows select digits or characters
To go to the next position, press .
●
To back up or to exit, press  several times.
●
