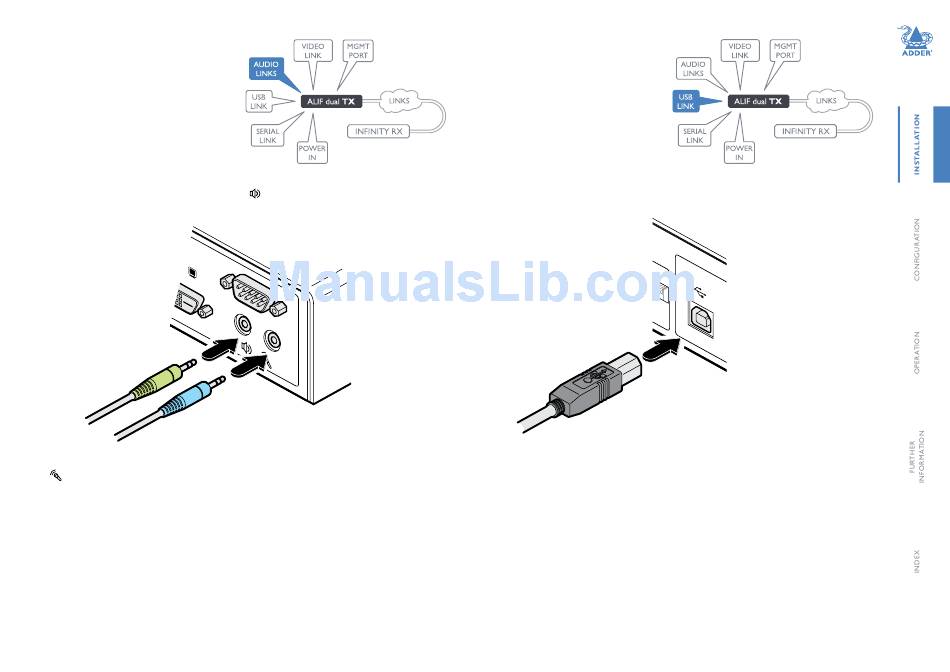

TX audio links

ALIF dual units support two way stereo
digital sound so that you can use a remote
microphone as well as speakers.
To make audio links
1 Connect an audio link cable between the
the speaker output socket of the host computer.
D V
I - D
- 1
Speaker link from
host computer
Microphone link
to host computer
2 [Where a microphone is to be used]: Connect a second audio link cable between the
socket on the TX unit rear panel and the Line In socket of the host computer.
OUT
socket on the TX unit rear panel and
IN
A U
X
I N
O U
T

TX USB link

ALIF dual units act as USB 2.0 hubs and so
can provide four sockets at the RX unit
with only a single connection at the TX
unit.
To make a USB link
1 Connect the type B connector of the supplied USB cable to the USB port on the TX
unit rear panel.
USB link from
host computer
2 Connect the type A connector of the cable to a vacant USB socket on the
host computer.
