AdderLink Infinity browser-based configuration utility

The browser-based configuration utility within all TX and RX units requires a network
connection between the ALIF dual unit and a computer on the same network. The
configuration utility allows you to perform many important functions. Please see
Appendix A for TX unit details and Appendix B
It is possible to gain access to the internal configuration utility via any of the ports
located on the front panel of each ALIF dual unit. For temporary connections, you are
strongly recommended to use the Management port:

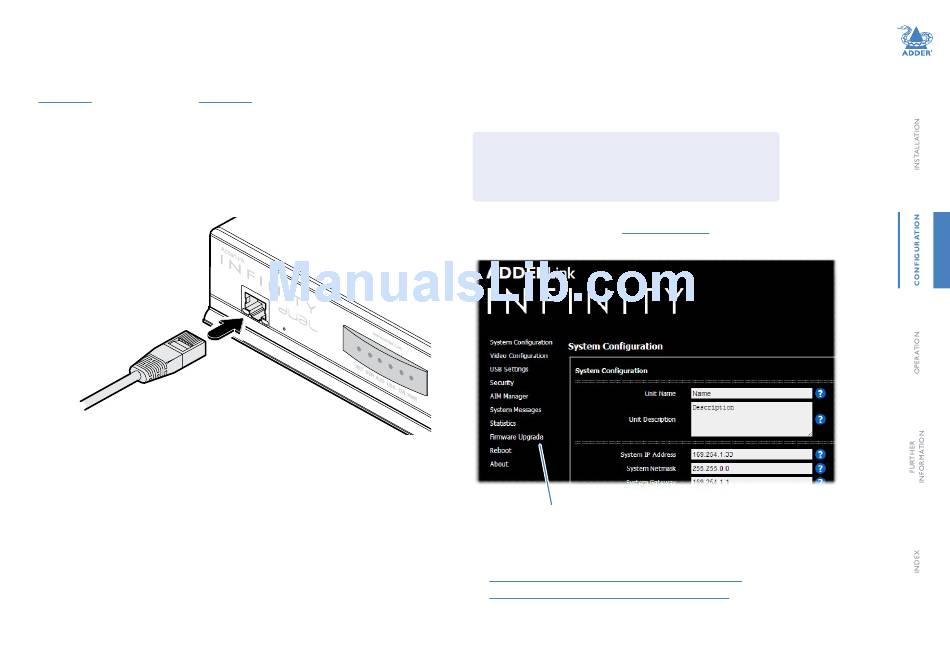

To connect a computer to access the configuration utility
1 Connect a CAT 5, 5e, 6, or 7 link cable to the Management port socket located on the
far left side of the ALIF dual front panel. The port automatically configures itself, so no
cross-over cable is required (but is supported if you do use one).
Temporary link
from computer
2 Connect the other end of the link cable directly to the network port of your
computer.
for RX unit details.
To access the browser-based configuration utility
1 Temporarily connect the ALIF dual unit and your computer, as discussed left.
2 Run a web browser on your computer and enter the IP address of the ALIF dual port
that you are using.
The default settings are as follows:
TX units RX units
Management port 192.168.1.42
System port 169.254.1.33
Teaming port 169.254.1.43
Note: Where the port addresses of a unit have been changed and are not known, providing it
is appropriate to do so, perform a manual factory reset
The opening page of the ALIF configuration utility should be displayed:
Use the menu options to choose
the required configuration page
You can find further information about the configuration pages for the TX and RX
units within separate appendices later in this guide:
• Appendix A - Transmitter (TX) unit configuration pages
• Appendix B - Reciever (RX) unit configuration pages
Û use these
192.168.1.42
169.254.1.32
169.254.1.42
to restore the default addresses.
