RX video display

ALIF dual units can simultaneously
support up to two Single Link high
resolution video displays at pixel clocks
up to 165MHz; or can alternatively
support a single Dual Link very high
Resolution video display at pixel clocks
up to 330MHz (equating to an example
display mode of 2560 x 1600 at 60 Hz
refresh).

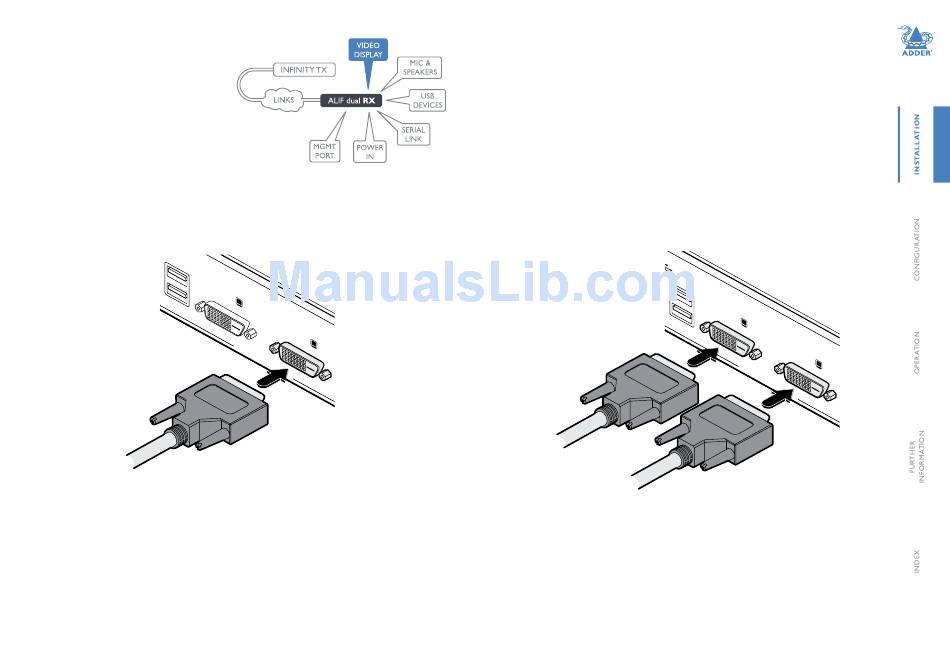

To connect video displays
1 Connect the lead from the primary video display to the DVI-D-1 socket on the RX
unit rear panel.
D V
VSCD3 cable
to primary
video display
Note: When using one very high resolution DVI-D dual link display, use a DVI-D Dual Link
cable (such as Adder part: VSCD3) to connect the video display to the DVI-D-1 connector
of the RX unit. A dual link cable must also be used at the TX unit.
I - D
- 2
D V
I - D
- 1
U S
E R
C O
N S
O L
E
2 If required, connect the lead from the second video display to the DVI-D-2 socket on
the RX unit rear panel.
Note: When using two single
link DVI-D displays, connect an
additional video cable to the
DVI-D-2 port of the RX unit.
To secondary video display
To primary video display
Note: When using dual link on DVI-D-1, the DVI-D-2 port will be disabled. If DVI-D-2 is
already being used, then it must be disconnected before dual link operation can occur on
DVI-D-1.
D V
I - D
- 2
D V
I - D
- 1
U S
E R
C O
N S
O L
E
