Introduction

Welcome

Thank you for choosing AdderLink Infinity dual, otherwise known as ALIF dual (2000
series). ALIF dual represents a major advance in the capabilities of digital extenders
and switches. By encoding high quality DVI video, digital audio and USB connections
into Internet Protocol (IP) messages, ALIF dual offers very flexible signal switching and
distribution capabilities.
Adder's extensive knowledge of interfacing techniques and high speed networking
has allowed us to develop new ways to break the chains of local DVI, USB and audio
connections. With ALIF dual, distance is finally no barrier to high specification, high
performance computing. Furthermore, since all signals are now IP, the most elaborate
and yet simple-to-use switching and multicast techniques make possible a great variety of
uses.
The TX transmitter attaches to a single computer while the RX receiver connects with
your peripherals. These can include two single link DVI video displays or one dual link
(very high resolution) DVI display. This is in addition to a microphone, speakers and
multiple USB peripherals. The distance between them is limited only by the size of your
network.
ALIF dual provides a choice of link connections. Each unit supports both copper-based
Gigabit Ethernet cabling as well as Fibre Channel over Ethernet (FCoE). These can be
used in parallel to provide up to 2 Gigabit connection speeds with the added benefit of
link redundancy that can maintain operation in the event of a failed connection. A third
socket, called the Management port, provides a standard Ethernet link that can be used to
quickly connect a computer when making configuration changes.
ALIF dual units promote sharing; you can arrange for a limitless number of screens and
speakers, distributed anywhere across the network, to receive video and audio. You can
also switch between any number of transmitter units using a single screen, keyboard and
mouse in order to monitor a potentially vast collection of remote systems.
All units feature browser-based configuration utilities to allow quick and easy set up,
from near or far.
Mixing ALIF and ALIF dual units
AdderLink Infinity dual (2000 series) are complimentary to the standard AdderLink
Infinity (1000 series) models which do not support dual DVI channels or fibre optic
linking. It is possible to mix ALIF and ALIF dual transmitters and receivers on a network.
However, whenever the two types are cross connected, the extra abilities of the ALIF
dual units will be temporarily disabled.

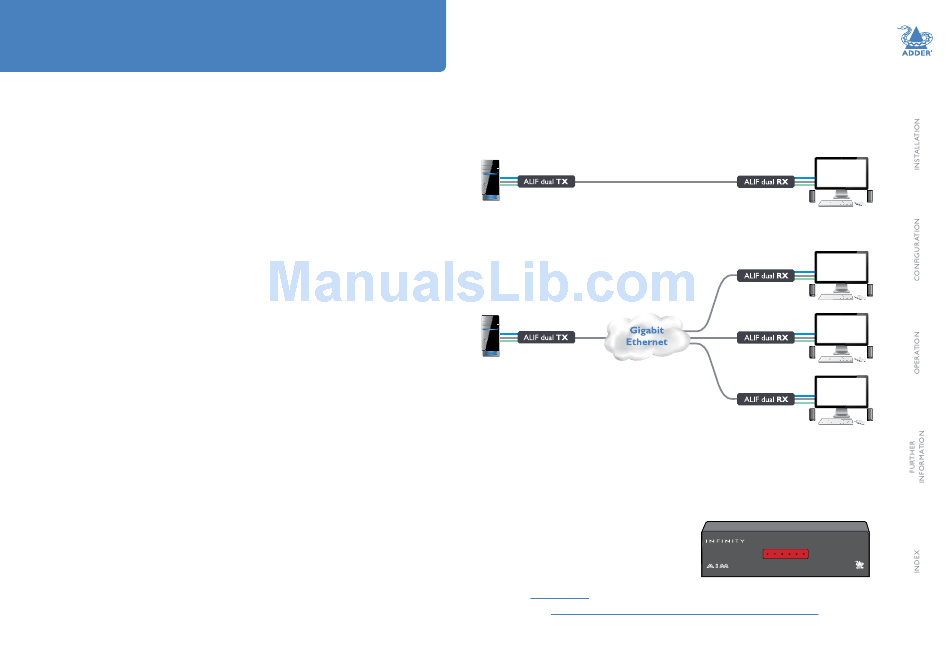

one-to-one configuration
The simplest configuration links one RX unit to a single TX unit, either by a direct link or over much
greater distances via a high speed network. In both cases, Gigabit cable linking and/or fibre can be used.
When both are deployed, connection speeds of up to 2 Gigabits are possible.
One-to-many configuration
Using multicast techniques, an unlimited number
of receivers* can receive video and audio data
streams from a single TX unit.
* A maximum of thirteen concurrent USB inputs (via
multiple RX units) are permitted to a single TX unit.
ALIF and A.I.M.
Where multiple ALIF units are used on a network, we have developed the AdderLink
Infinity Management (A.I.M.) server to allow comprehensive and secure central
control of all transmitters, receivers and users.
When using an A.I.M. server to configure ALIF
units, it is vital that all ALIF units that you wish
to locate and control are set to their factory
default settings. Otherwise they will not be
located by the A.I.M. server. If necessary,
perform a factory reset on each ALIF unit.
Please also see Appendix C - Tips for success when networking ALIF units
AdderLink
ADM USR UNC ETH1 ETH2 PWR
ADM USR UNC ETH1 ETH2 PWR
MANAGEMENT SERVER
www.adder.com
2
