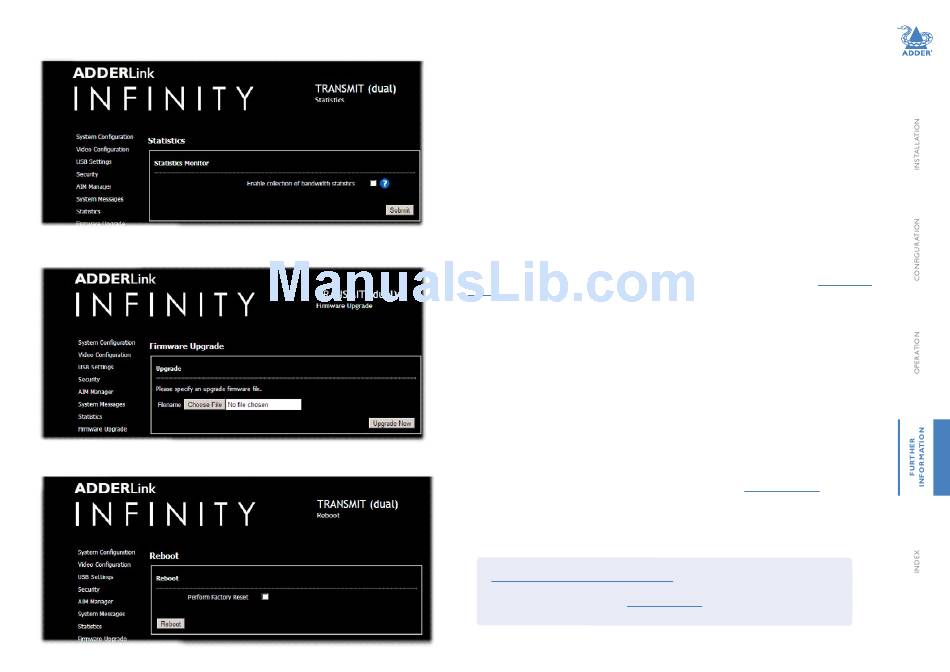

TX Statistics

TX Firmware Upgrade

TX Reboot
Enable collection of bandwidth statistics
The ALIF dual unit can record data transfer statistics from the System port and plot them on a graph for
troubleshooting and optimization purposes. When you enable this option, you will first be presented with a pop
up from which you can choose which aspects you would like to graph: Data throughput, various packet rates
and/or frame rates.
Submit
Click this button after ticking the above checkbox to plot the chosen statistics on a pop up graph.
Note: Only the System port is measured. When the Teaming port is also used, the bandwidth will be shared equally
so the figures shown for the System port will apply also to the Teaming port. For instance, if the graph shows 500Mbit
bandwidth, then the total bandwidth will be 1 Gigabit.
Upgrade
Use this page to upgrade the main or backup firmware image on the unit. Please see the section
upgrade for details.
Reboot
Use this page to perform a reboot or a factory reset. Please see the section
To get here
1 Connect your computer to the Management port
2 Run a web browser and enter the IP address of the Management port: http://192.168.1.42
If the address is unknown, perform a manual factory
3 Click either the Statistics , Firmware Upgrade or Reboot links, as appropriate.
Performing an
Manual factory reset for details.
on the left side of the front panel.
reset.
