TX video link
The AdderLink Infinity units support
DVI digital video signals and so use
DVI-D video connectors.
To make a video link
1 Wherever possible, ensure that
power is disconnected from the
AdderLink Infinity and the host
computer.

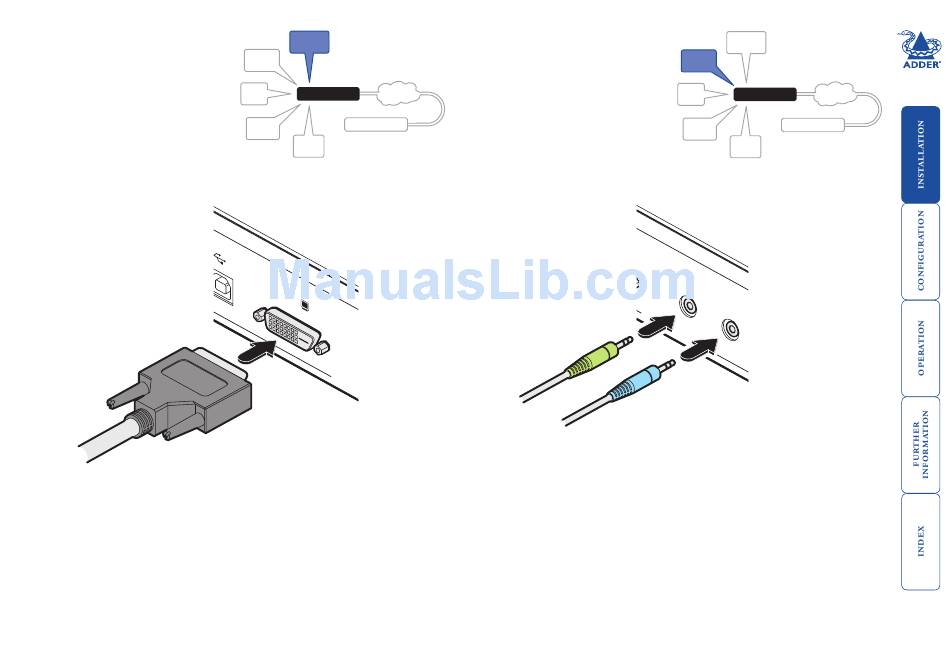

2 Connect a digital video link cable to the DVI-D socket on the TX unit rear
panel:
DVI-D link from
host computer
3 Connect the plug at the other end of the cable to the corresponding video
output socket of the host computer.
VIDEO
LINK
AUDIO
LINKS
USB
INFINITY TX LINK
LINK
SERIAL INFINITY RX
LINK
POWER
IN
D V
I - D
C O
M P
TX audio links
The AdderLink Infinity units support
two way stereo digital sound so that
you can use a remote microphone as
well as speakers.
To make audio links
1 Connect an audio link cable
between the LINE OUT socket on
the TX unit rear panel and the
speaker output (line out) socket
of the host computer.
Speaker (line out) link
from host computer
Microphone (line in) link
from host computer
2 [Where a microphone is to be used]: Connect a second audio link cable
between the LINE IN socket on the TX unit rear panel and the LINE IN socket
of the host computer.
VIDEO
LINK
AUDIO
LINKS
USB
INFINITY TX
LINK
INFINITY RX
SERIAL
LINK
POWER
IN
L I N
E O
U T
L I N
E I
N
C O
M P
U T
E R
LINK
