ADDeRlINk INfINITy DUAl UNIT feATUReS

The ALIF dual units are housed within durable, metallic enclosures with most connectors situated at the rear panel -
the Ethernet ports are situated on the front panels. The smart front faces also feature the operation indicators.

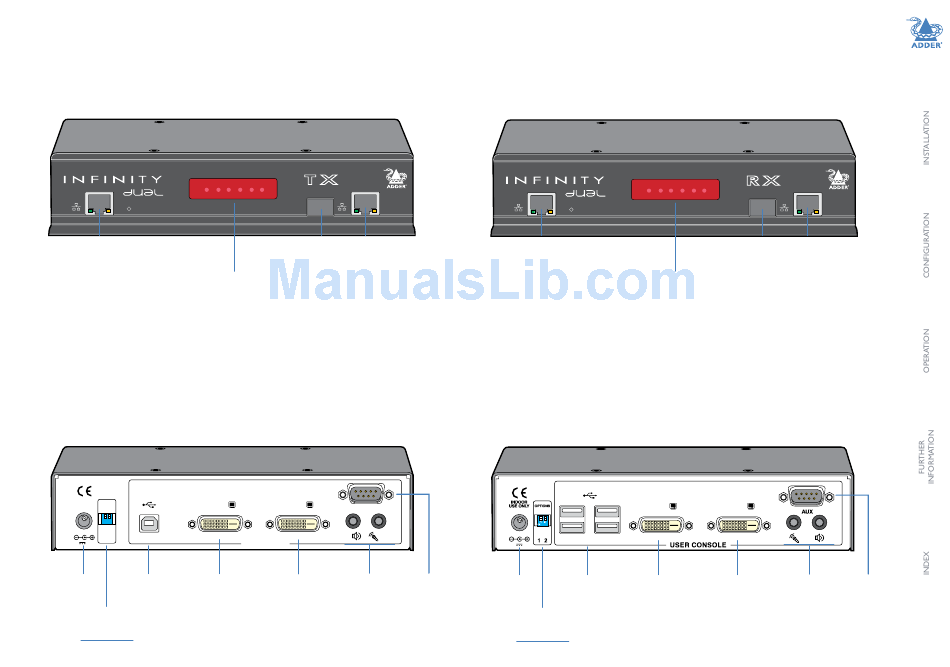

ALIF dual transmitter - front
AdderLink
NET SER AUD USB
Management
port
These six indicators clearly show the key aspects of operation:
• NeT On when valid network link is present.
Flashes when the unit is in error.
• SeR On when the AUX (serial) port is enabled and active.
• AUD On when audio is enabled and active.
• USB On when the USB link with the connected PC is active.
• DVI On when a video input signal from the PC is detected.
• PWR Power indicator.
ALIF dual transmitter - rear
INDOOR
USE ONLY DVI-D-1
OPTIONS
1 2
ON
1 2
5V 2.5A
Power USB Primary
input port video
input
Options
switches
(further details)
T R A N S M I T
www.adder.com
DVI PWR
Teaming System
port (Gigabit
Ethernet)
port
Indicators
DVI-D-2
AUX
IN OUT
COMPUTER
Secondary Audio
video line
input in/out
ALIF dual receiver - front
AdderLink
Management
port
These six indicators clearly show the key aspects of operation:
• NeT On when valid network link is present.
Flashes when the unit is in error.
• SeR On when the AUX (serial) port is enabled and active.
• AUD On when audio is enabled and active.
• USB On when USB is enabled and active.
• DVI On when DVI video is enabled.
• PWR Power indicator.
ALIF dual receiver - rear
5V 4A
AUX
Power USB
(serial)
input ports
port
Options
switches
(further details)
R E C E I V E R
www.adder.com
NET SER AUD USB DVI PWR
Teaming System
port (Gigabit
Ethernet)
port
Indicators
DVI-D-2 DVI-D-1
Secondary Primary Audio
video video line
output output in/out
AUX
(serial)
port
3
