TX audio links

The ALIF units support two way
stereo digital sound so that you can
use a remote microphone as well as
speakers.

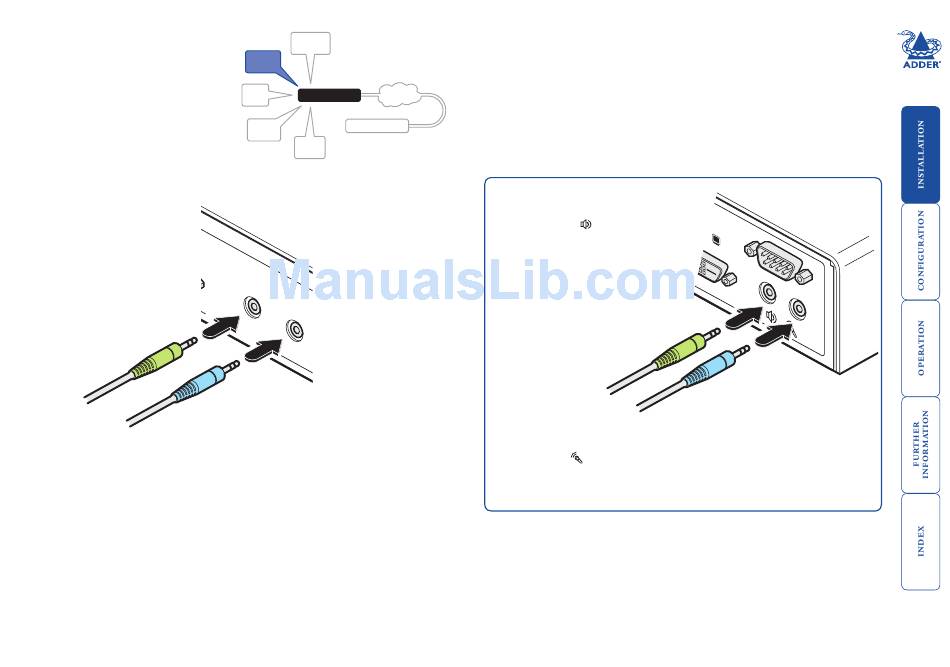

To make audio links
1 Connect an audio link cable
between the LINE OUT socket on
the TX unit rear panel and the
speaker output socket of the host
computer.
Speaker link from
host computer
Microphone link
to host computer
2 [Where a microphone is to be used]: Connect a second audio link cable
between the LINE IN socket on the TX unit rear panel and the Line In socket
of the host computer.
VIDEO
LINK
AUDIO
LINKS
USB
ALIF TX LINK
LINK
ALIF RX
SERIAL
LINK
POWER
IN
[ALIF1000]
L I N
E O
U T
L I N
E I
N
C O
M P
U T
E R
[ALIF2000]
1 Connect an audio link cable
between the socket on
IN
the TX unit rear panel and the
speaker output socket of the
host computer.
Speaker link from
host computer
2 [Where a microphone is
to be used]: Connect a
second audio link cable
between the socket
OUT
on the TX unit rear panel
and the Line In socket of
the host computer.
D V
I - D
- 1
A U
X
I N
O U
T
Microphone link
to host computer
