Operation
In operation, many ALIF dual installations require no intervention once configured. The
TX and RX units take care of all connection control behind the scenes so that you can
continue to work unhindered.
fRoNT PANel INDIcAToRS
The six front panel indicators on each unit provide a useful guide to operation:

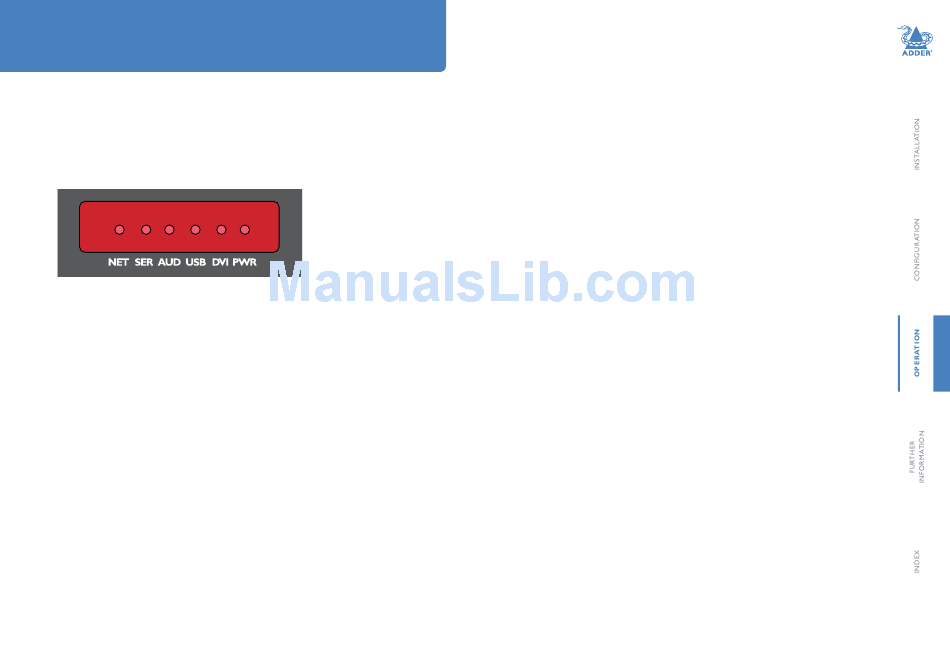

Indicators
These six indicators clearly show the key aspects of operation:
• NeT
On when valid network link is present. Flashes when the unit is in error.
• SeR
On when the AUX (serial) port is enabled and active.
• AUD
On when audio is enabled and active.
• USB
On when USB is enabled and active.
• DVI
On when the DVI Video channel is enabled.
• PWR
Power indicator.
