D. Lower the console assembly over the upper
display cable and hold it steady in the correct
position on the base assembly. See Figure 6.
NOTE: Confirm that no cables are pinched lowering the
console.
E. Using a 1/4" Allen wrench (#15), attach the
console assembly (#2) with the four screws
5-16-18 x .75 (#9) and four washers 5-16" (#10).
See Figure 6.
5. Install the top cap.
A. Locate and place top cap on the top of the
unit as shown in Figure 3.
B. Using a Phillips screwdriver, secure with four
screws.
6. Install the front cap.
A. Locate and place front cap (#3) on the front of the unit as shown in Figure 7.
B. Using a Phillips screwdriver, secure with two screws 8-16 x .50 (#11) and one screw
10-24 x .50 (#13).
7. Connect the Seat Back Assembly.
A. Locate the seat back assembly (#8) four screws 5-16-18 x 1.50 (#12) and four washers 5-16"
(#10).
B. Place the seat back assembly in the correct position and hand thread each of the screws
5-16-18 x 1.50 (#12) and four washers 5-16" (#10). See Figure 8.
C. Securely fasten the screws 5-16-18 x 1.50 (#12) with the 3/16" Allen wrench (#14) provided.

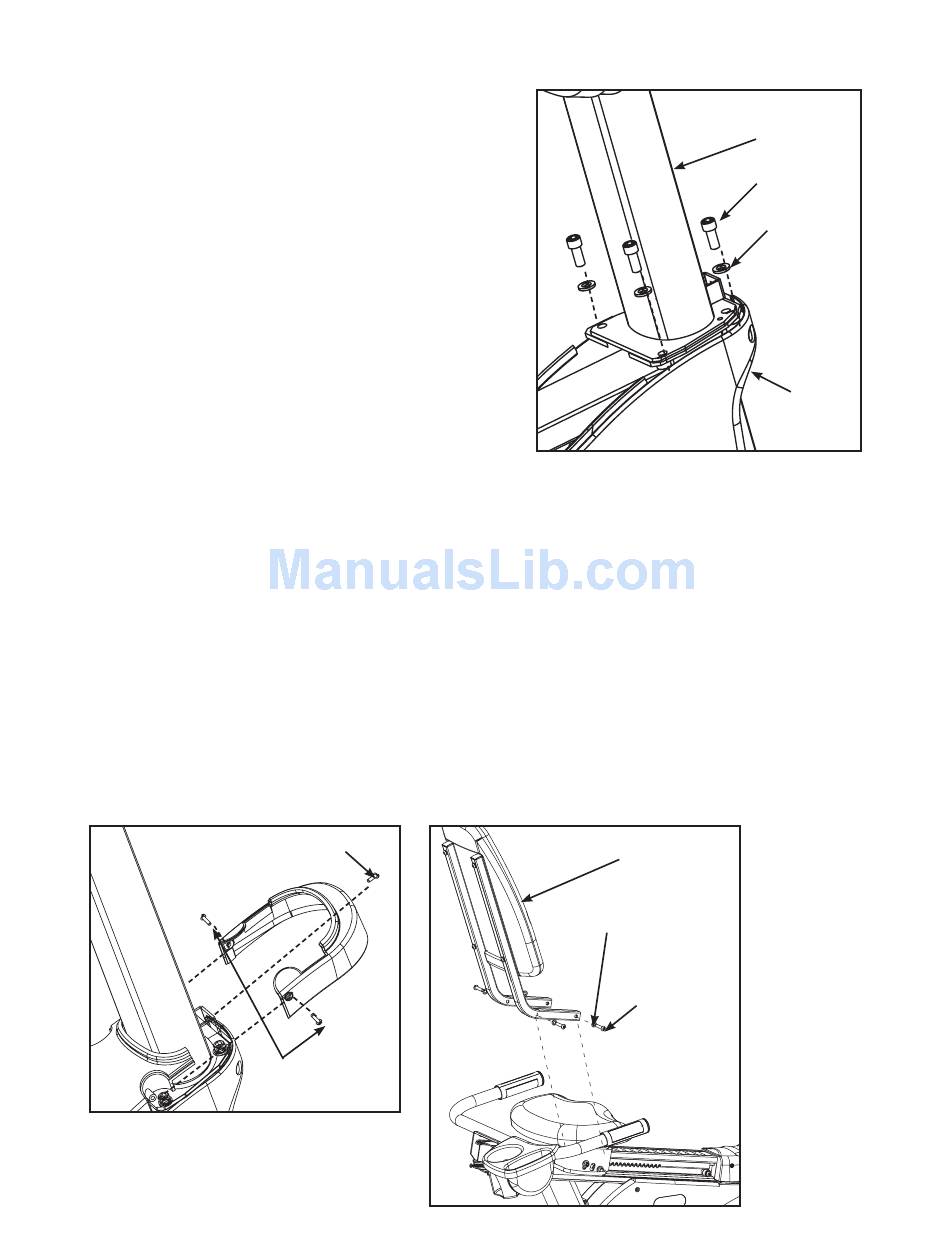

Figure 7
Cybex 530C and 530R Owner's Manual
#13
#11
Figure 8
Figure 6
#8
#10
#12
#2
#9
#10
Base
Assembly
