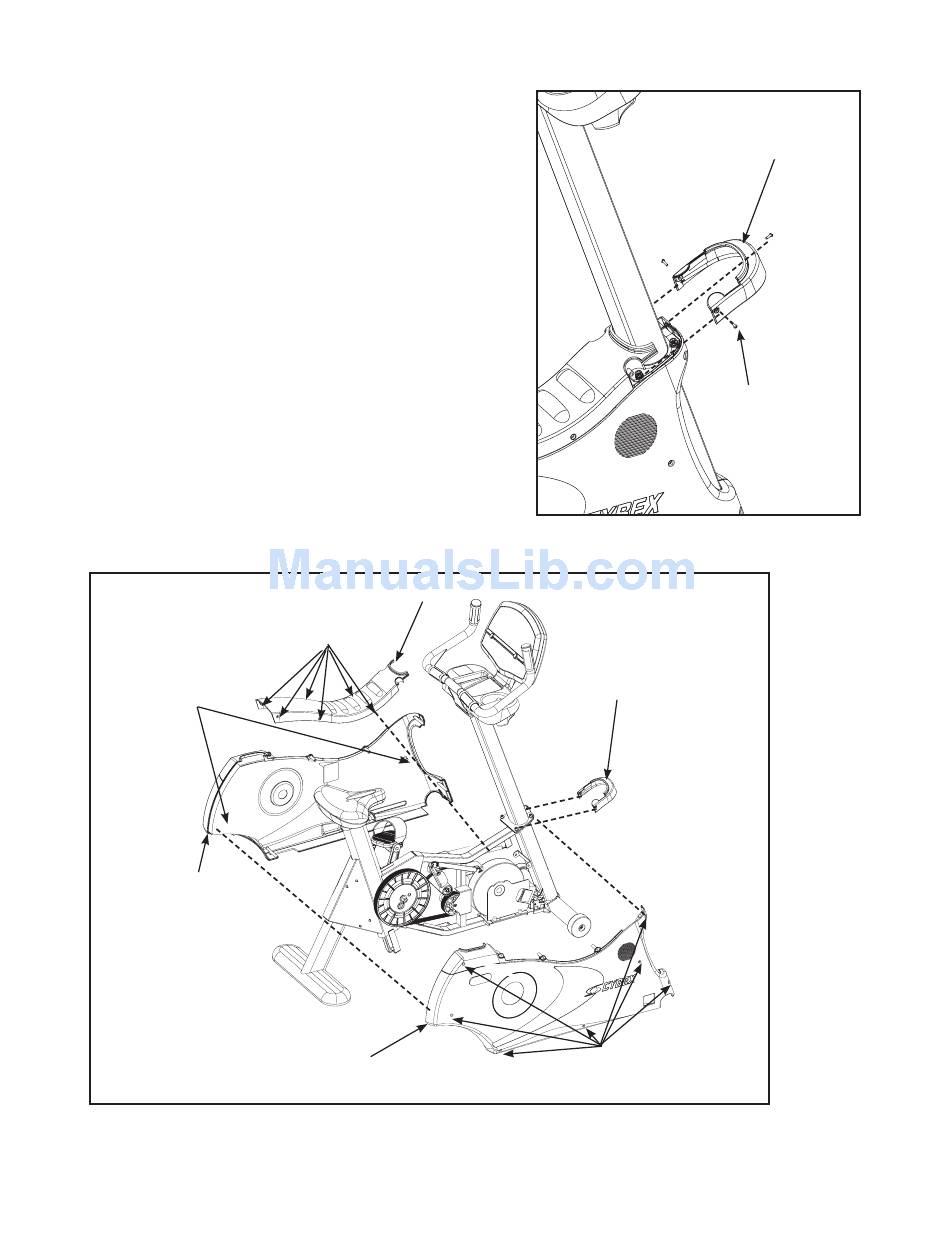

4. Remove the access covers.
A. Using a Phillips head screwdriver, remove the
three screws securing the front cap in place.
See Figure 4.
B. Remove the front cap.
C. Remove the six screws securing the top cap in
place. Remove top cap. See Figure 5.
D. Remove the seven screws securing the right
cover in place. Remove right cover. See Figure 5.
E. Remove the two screws securing the left cover in
place. Remove left cover. See Figure 5.
Screws (2)
Left Cover
Figure 5
Preventive
Maintenance
Page 4-4
Cybex 530C and 530R Owner's Manual
Top Cap
Screws (6)
o
Right Cover
Figure 4
Front Cap
Screws (7)
Front
Cap
Screws (3)
