Csafe Ports - CYBEX 530C Owner's Manual

CSAFE Ports

NOTE: The CSAFE standard defines a communication protocol and low-voltage DC power source
specific to the Fitness Equipment Industry. These RJ-45 phone jacks are provided for use
ONLY within the CSAFE protocol. For more information on the CSAFE standard, visit
www.fitlinxx.com/csafe. Not every connection carries both the communication and power
capability.
NOTE: The CSAFE port inside the console, accessible through the rear battery door, is the only port in
the Cybex cycle that carries BOTH the CSAFE communication lines AND the 8.0v DC CSAFE
power supply. If you are attaching a CSAFE compliant device that requires power, you MUST
use this connection. Power is present only when the cycle is in use or when a power supply is
attached.
CSAFE Port
Communication
8V DC / 100ma
Power Supply
NOTE: The CSAFE ports provided at the base of the unit are only for use on a communications
network. There is no CSAFE voltage present on these connections.
Communication, No Power
Safety
Page 1-12
Cybex 530C and 530R Owner's Manual

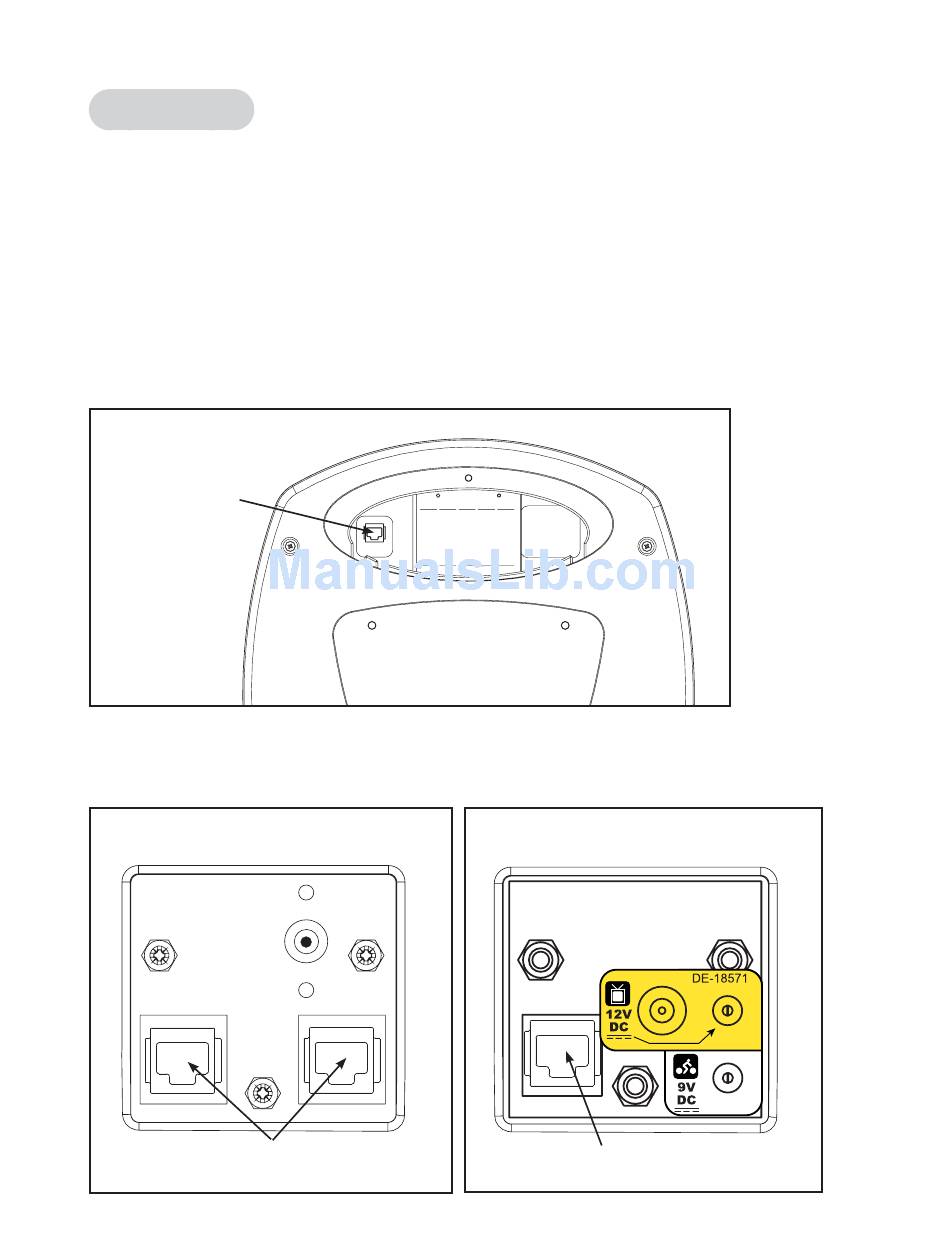

Back of Console
Power Inlet
CSAFE Ports
Power Inlet with A/V option
CSAFE Port
Communication, No Power
