Selecting a different program

When you switch programs on the SGproX, the program of the external MIDI device will also change.
Selecting a program A1 to D16 will cause a program number 0 to 63 to be transmitted, but the actual sound
that this will select will depend on the receiving device. (

Changing the bank

The BANK switch of the SGproX does not transmit Bank Select messages.
Banks A, B, C and D are all within the same bank of MIDI messages. (

Operate the assignable controllers

Try moving the SGproX's assignable controllers (AW1/2, AL1 to AL4) while playing notes on the SGproX.
The sound of the MIDI device connected to MIDI OUT will change.
This is because MIDI messages which correspond to the SGproX function specified for each assignable
controller are being transmitted. (In Program mode, with the factory settings)
These settings can be changed in the Global mode CONTROLLER page (select switch 9). (

Assignable controllers and MIDI functions

By assigning functions to each of the eight assignable controllers, you can freely control external MIDI
devices.
The functions which can be specified include nearly all of the controllers defined by the MIDI specification,
and sets of frequently-used messages are also provided.
For details refer to the Controllers / MIDI list (
If the controller function is selected from Individual or Set, it will not be possible to control the SGproX. If you wish
to control the SGproX as well as simultaneously transmit MIDI messages, select one of the Internal functions
enclosed in square brackets [ ].

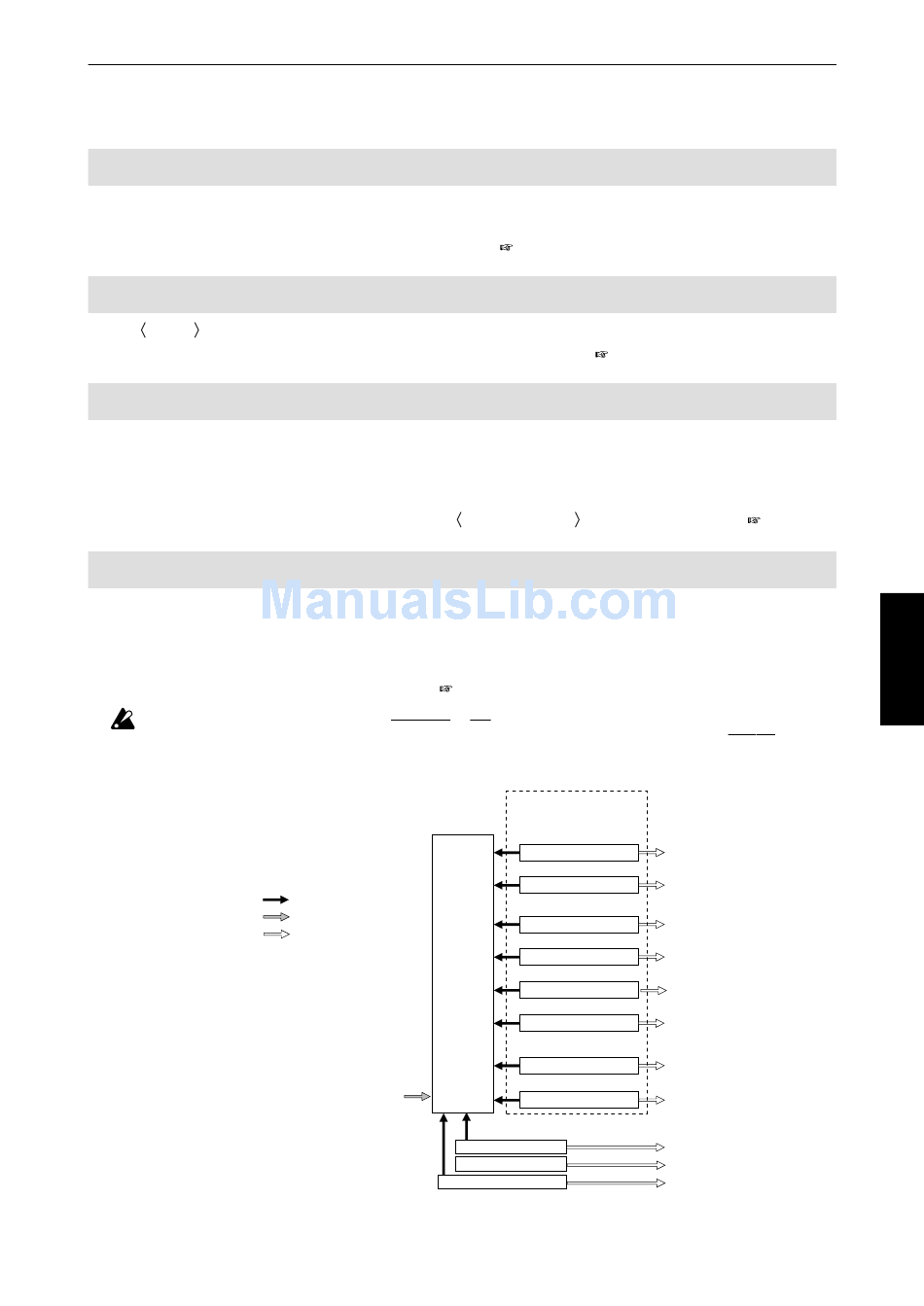

MIDI operation and assignable controller
initial settings in Program mode
p.58 and following).
Internal control
MIDI IN
MIDI OUT
Internal
tone
generator
From a MIDI device
Damper (only if connected)
Connecting other MIDI devices
p.62)
p.62)
Function (type) specified for
each assignable controller
AW1 : [ Pitch Bend ]
AW2 : [ LFO ]
AL1 : [ Brightness ]
AL2 : [ Decay Time ]
AL3 : [ FX2 Depth ]
AL4 : [ FX Dyna Mod ]
Only when connected
AP : [ Volume]
Only when connected
AS : [ Sostenuto ]
Keyboard note data
Keyboard aftertouch
p.29)
MIDI message transmitted
when each a ssignable
controller is operated
Pitch Bend
CC#01 : Modulation 1
CC#74 : Brightness
CC#75 : Decay Time
CC#91 : Eff 1 Depth
CC#12 : FX Control 1
CC#07 : Volume
CC#66 : Sostenuto
Note On, Note Off
Channel After
CC#64 : Hold
