Introduction

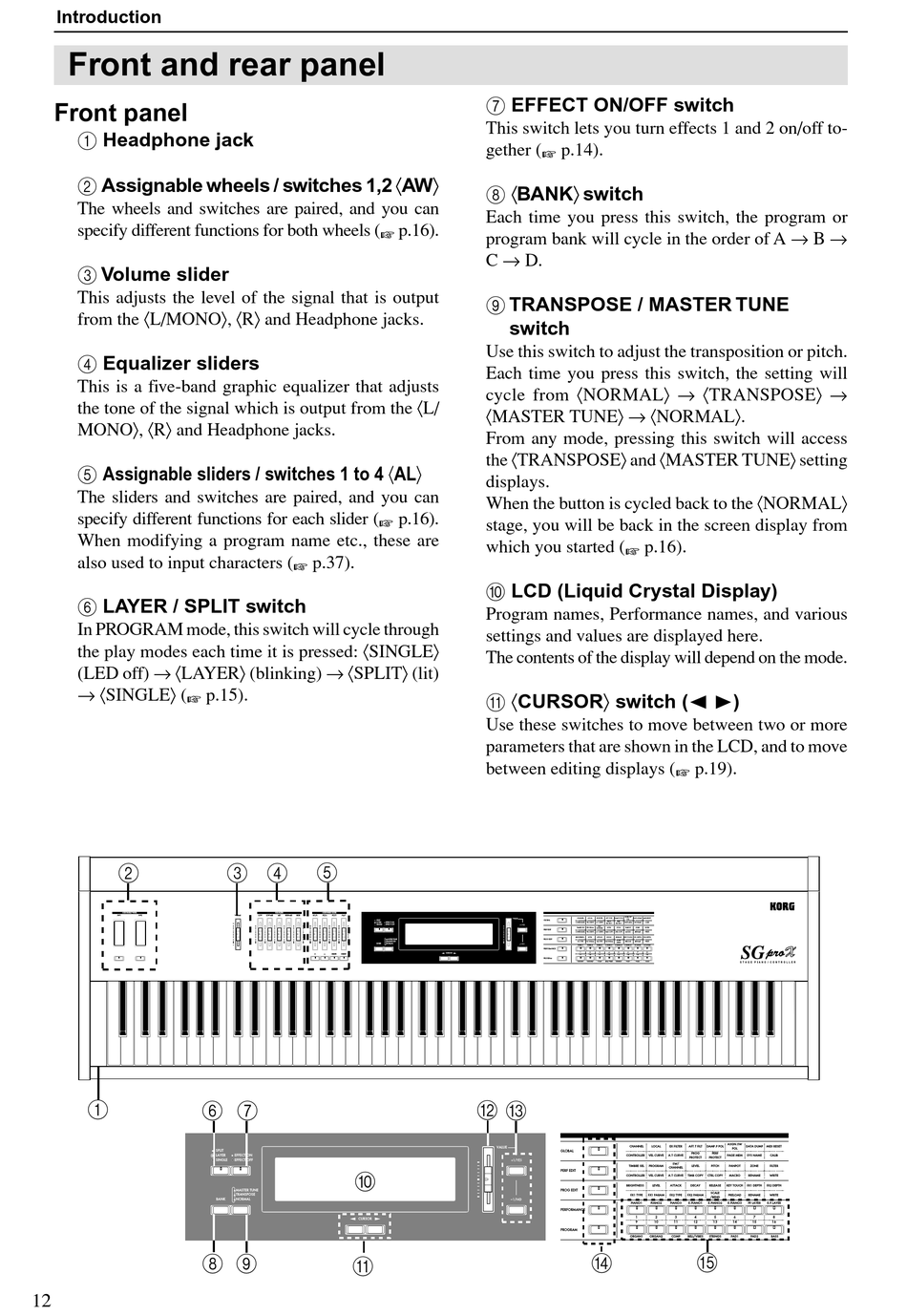

Front and rear panel

Front panel

1 Headphone jack
2 Assignable wheels / switches 1,2 AW
The wheels and switches are paired, and you can
specify different functions for both wheels ( p.16).
3 Volume slider
This adjusts the level of the signal that is output
from the L/MONO , R and Headphone jacks.
4 Equalizer sliders
This is a five-band graphic equalizer that adjusts
the tone of the signal which is output from the L/
MONO , R and Headphone jacks.
5 Assignable sliders / switches 1 to 4 AL
The sliders and switches are paired, and you can
specify different functions for each slider (
When modifying a program name etc., these are
also used to input characters (
6 LAYER / SPLIT switch
In PROGRAM mode, this switch will cycle through
the play modes each time it is pressed: SINGLE
(LED off) LAYER (blinking)
SINGLE (
2
ASSIGNABLE WHEEL
AW1 AW2
1
6 7
12
p.37).
SPLIT (lit)
p.15).
3 4 5
EQUALIZER ASSIGNABLE SLIDER
VOLUME LOW LOW-MID MID HIGH-MID HIGH AL1/A AL2/a AL3/0 AL4/!
A a DELETE INSERT
SPLIT
LAYER EFFECT ON
SINGLE EFFECT OFF
0
MASTER TUNE
TRANSPOSE
BANK NORMAL
CURSOR
8 9
A
7 EFFECT ON/OFF switch
This switch lets you turn effects 1 and 2 on/off to-
gether (
8 BANK switch
Each time you press this switch, the program or
program bank will cycle in the order of A
C D.
9 TRANSPOSE / MASTER TUNE
switch
Use this switch to adjust the transposition or pitch.
Each time you press this switch, the setting will
cycle from NORMAL
MASTER TUNE
From any mode, pressing this switch will access
the TRANSPOSE and MASTER TUNE setting
displays.
When the button is cycled back to the NORMAL
p.16).
stage, you will be back in the screen display from
which you started (
0 LCD (Liquid Crystal Display)
Program names, Performance names, and various
settings and values are displayed here.
The contents of the display will depend on the mode.
A CURSOR switch (√ ®)
Use these switches to move between two or more
parameters that are shown in the LCD, and to move
between editing displays (
VALUE
SPLIT GLOBAL
LAYER EFFECT ON
SINGLE EFFECT OFF
PERF EDIT
MASTER TUNE PROG EDIT
TRANSPOSE
BANK NORMAL
PERFORMANCE
CURSOR
PROGRAM
B C
VALUE
p.14).
TRANSPOSE
NORMAL .
p.16).
p.19).
ASGN.SW
CHANNEL LOCAL EX FILTER AFT.T FILT DAMP.P POL DATA DUMP MIDI RESET
POL
PROG PERF
CONTROLLER VEL CURVE A.T CURVE PAGE MEM SYS NAME CALIB
PROTECT PROTECT
SW/
TIMBRE SEL PROGRAM LEVEL PITCH PANPOT ZONE FILTER
CHANNEL
CONTROLLER VEL CURVE A.T CURVE TIMB COPY CTRL COPY MACRO RENAME WRITE
BRIGHTNESS LEVEL ATTACK DECAY RELEASE KEY TOUCH FX1 DEPTH FX2 DEPTH
SCALE
FX1 TYPE FX1 PARAM FX2 TYPE FX2 PARAM PRELOAD RENAME WRITE
/BEND
PIANO1 PIANO2 PIANO3 E.PIANO1 E.PIANO2 E.PIANO3 PF LAYER E.P.LAYER
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
ORGAN1 ORGAN2 COMP BELL/VIBES STRINGS PAD1 PAD2 BASS
ASGN.SW
CHANNEL LOCAL EX FILTER AFT.T FILT DAMP.P POL
GLOBAL
PROG PERF
CONTROLLER VEL CURVE A.T CURVE PAGE MEM
PROTECT PROTECT
SW/
TIMBRE SEL PROGRAM LEVEL PITCH PANPOT
CHANNEL
PERF EDIT
CONTROLLER VEL CURVE A.T CURVE TIMB COPY CTRL COPY MACRO
BRIGHTNESS LEVEL ATTACK DECAY RELEASE KEY TOUCH
PROG EDIT
SCALE
FX1 TYPE FX1 PARAM FX2 TYPE FX2 PARAM PRELOAD
/BEND
PIANO1 PIANO2 PIANO3 E.PIANO1 E.PIANO2 E.PIANO3
PERFORMANCE
1 2 3 4 5
9 10 11 12 13
PROGRAM
ORGAN1 ORGAN2 COMP BELL/VIBES STRINGS PAD1
D E
B
DATA DUMP MIDI RESET
POL
SYS NAME CALIB
ZONE FILTER
RENAME WRITE
FX1 DEPTH FX2 DEPTH
RENAME WRITE
PF LAYER E.P.LAYER
6 7 8
14 15 16
PAD2 BASS
