S4TEF10xx-10x
Installation
-- Continued
Install the T1/E1 Cable
1. Locate or build ITU-compliant copper cable with straight-through RJ-48
connectors installed at both ends. (See page 13 for the proper cable
specifications for your network application.)
2. Connect the RJ-48 connector at one end of the cable to one of the T1/E1
ports on the S4TEF10xx-10x media converter.
3. Connect the RJ-48 connector at the other end of the cable to the T1/E1
port on the other device.
Dry-Contact Relay
All four T1/E1 ports are equipped with an
RJ-48 dry-contact relay. The relay closes if
the power is lost or if any of the individual
T1/E1/E1 links are lost. The operational
rating on pins 3 and 6 are 0-30 VDC, 100
mA (maximum).

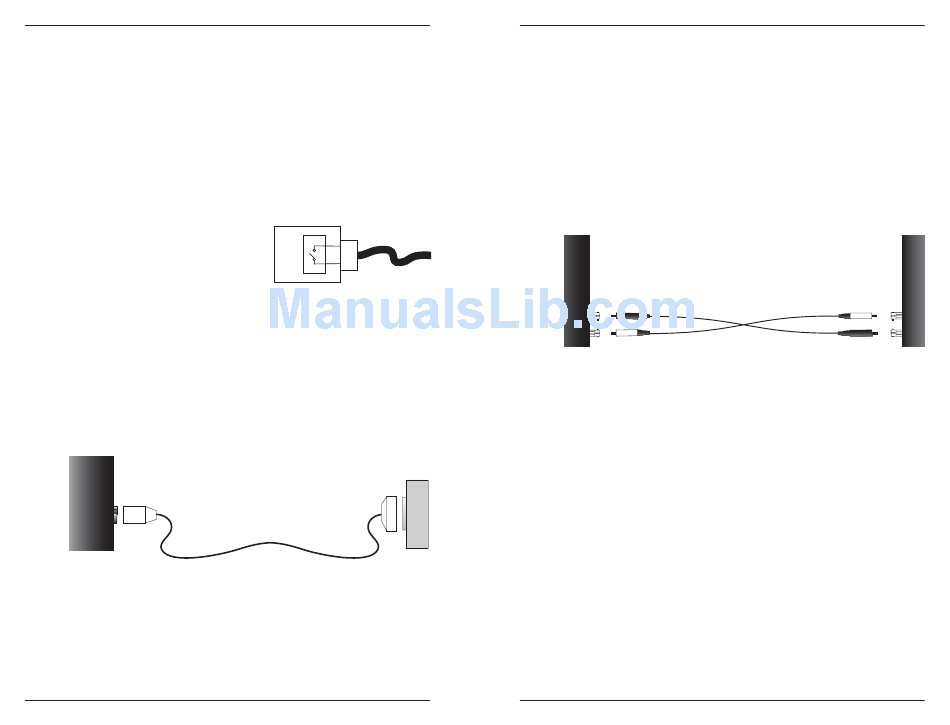

Install the RS-232 Data Cable (included)
1. Use the enclosed RS-232 data cable with a male, DIN 6-pin connector
on one end and a DB-9 connector installed on the other end.
2. Connect the DIN 6-pin connector to the RS-232 port on the S4TEF10xx-
10x media converter.
3. Connect the DB-9 connector at the other end of the cable to the RS-232
port on a computer or other device that is used to collect and display
data.
Connect the 6-pin DIN
connector to the media
converter as shown.
8
.
T1/E1 port
RJ-48C connector
3
relay
6
Connect the DB-9
connector to the
computer
RS-232 data cable (enclosed)
Installation
-- Continued

Install the Fiber Cable

1. Locate or build ITU- compliant 100Base-FX fiber cable with male, two-
stranded TX to RX connectors installed at both ends.
2. Connect the fiber cables to the local S4TEF10xx-10x media converter as
described:
• Connect the male TX cable connector to the female TX port.
• Connect the male RX cable connector to the female RX port.
3. Connect the fiber cables to the remote S4TEF10xx-10x media converter
as described:
• Connect the male TX cable connector to the female RX port.
• Connect the male RX cable connector to the female TX port.
Connect the fiber cable
to the local media
converter as shown.
RX
TX
.
Connect the fiber cable
to the remote media
converter as shown
RX
TX
9
