The RS-232 and T1/E1 interfaces are independent of each other and the signals
from these ports can be sent over the fiber interface simultaneously.
The AS4TEF10xx-10x is designed to be installed in pairs. For example, install one
S4TEF1011-100 as the local media converter and another S4TEF1011-100 as the
remote media converter.
All S4TEF10xx-10x models have the following copper connectors:
Connector Type
Number
RS-232
one (1)
T1/E1
four (4)
The various fiber connectors are available on separate models. Both duplex and
single mode fiber optic converters are available:
Part Number
Duplex Fiber-Optic - 100Base-FX
AS4TEF1011-100
ST, 1300 nm multimode, 2 km (1.2 miles)*
AS4TEF10173-100
SC, 1300 nm multimode, 2 km (1.2 miles)*
AS4TEF1014-100
SC, 1310 nm single mode, 20 km (12.4 miles)*
AS4TEF1015-100
SC, 1310 nm single mode, 40 km (24.8 miles)*
AS4TEF1016-100
SC, 1310 nm single mode, 60 km (37.2 miles)*
AS4TEF1017-100
SC, 1550 nm single mode, 80 km (49.7 miles)*
AS4TEF1018-100
MT-RJ, 1300 nm multimode, 2 km (1.2 miles)*
AS4TEF1029-10x
(single mode, single fiber models are listed on page 2)
* Typical maximum cable distance. Actual distance is dependent upon the
physical characteristics of the network.
The chassis version of the media
converter is C4TEF10xx-10x. For more
information, see the user's guide on-line
at: www.transition.com.

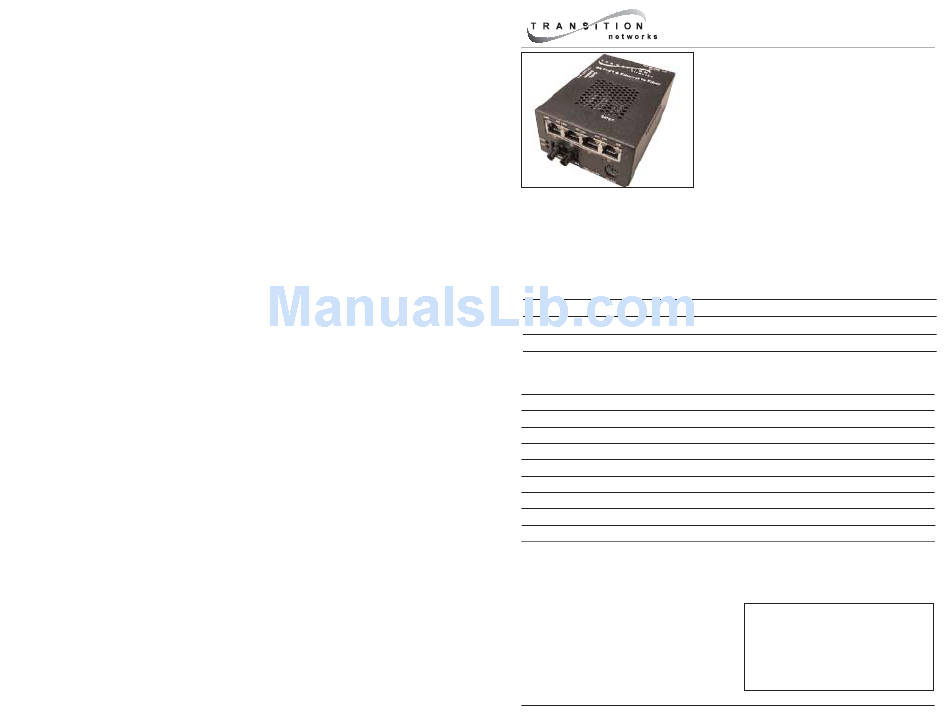

User's Guide
AS4TEF10xx-10x
Stand-Alone Media Converter
• RS-232 to Fiber
• (4) T1/E1 to Fiber
The AS4TEF10xx-10x media converter can
extend signals from an RS-232 data port and
up to four (4) T1/E1 network ports over fiber.
Description
6-pin, DIN serial, 3.2 m (10 ft.)*
RJ-48
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . .10
Cable Specifications . . . . . . . . . .12
Technical Specifications . . . . . . .14
Troubleshooting . . . . . . . . . . . . .15
Compliance Information . . . . . . .19
Advertisement
Table of Contents
Related Manuals for Transition Networks AS4TEF10xx-10x
Summary of Contents for Transition Networks AS4TEF10xx-10x
- Page 1 The RS-232 and T1/E1 interfaces are independent of each other and the signals from these ports can be sent over the fiber interface simultaneously. The AS4TEF10xx-10x is designed to be installed in pairs. For example, install one S4TEF1011-100 as the local media converter and another S4TEF1011-100 as the remote media converter.
-
Page 2: Installation
AS4TEF1029-101 SC, 1550 mn (TX)/1310 nm (RX), 20 km (12.4 miles)* The AS4TEF10xx-10x media converter has two (2) sets of configuration switches. S4TEF1029-100 and S4TEF1029-101 are intended to be installed in the same link where one is the local converter •... - Page 3 S4TEF10xx-10x Installation Installation -- Continued -- Continued Switch Set #1 - T1/E1 Options Switch Set #2 - Serial Options 5, 6, 7, 8 - Loop-Back Settings 1, 2, 3 - Serial Connection Speed Line Settings The loop-back setting is used for installation and network debugging procedures. Switches 1, 2, and 3 on switch set #2 are used to set the serial connection speed.
-
Page 4: Power The Media Converter
Connect the power adapter plug to AC power. Verify that the media converter is powered by observing the illuminated LED power indicator light. NOTE: For DC power, consult the user’s guide for the Transition Networks SPS1872-xx DC external power supply. -
Page 5: Install The Fiber Cable
S4TEF10xx-10x Installation Installation -- Continued -- Continued Install the T1/E1 Cable Install the Fiber Cable Locate or build ITU-compliant copper cable with straight-through RJ-48 Locate or build ITU- compliant 100Base-FX fiber cable with male, two- connectors installed at both ends. (See page 13 for the proper cable stranded TX to RX connectors installed at both ends. -
Page 6: Operation
On = AIS (Alarm Indication Signal) detected. Failure of the device connected to the T1/E1 port. SNMP See the on-line documentation that comes with Transition Networks FocalPoint™ software for applicable commands and usage. Use SNMP at an attached terminal or at a remote location to monitor the media... -
Page 7: Cable Specifications
S4TEF10xx-10x Cable Specifications Cable Specifications -- Continued The physical characteristics must meet or exceed ITU specifications. T1/E1 Cable Fiber Cable Category 3: (minimum requirement) Connector: RJ-48C Bit Error Rate: <10-9 Electrical network connection: Single 4-wire (Tip/Ring - Tip1/Ring1) Single mode fiber (recommended): 9 µm Mechanical arrangement: 8-position miniature modular jack... -
Page 8: Technical Specifications
S4TEF10xx-10x Technical Specifications Troubleshooting For use with Transition Networks Model S4TEF10xx-10x or equivalent. If the media converter fails, isolate and correct the failure by determining the answers to the following questions and then taking the indicated action: Standards G.703, AMI/B8Zs/HDB3... - Page 9 S4TEF10xx-10x Troubleshooting Troubleshooting -- Continued -- Continued 5. Is data transfer failing on one of the T1/E1 ports? 6. Is data transfer failing on the fiber port? • Verify the local T1/E1 connection at the local converter by starting a •...
